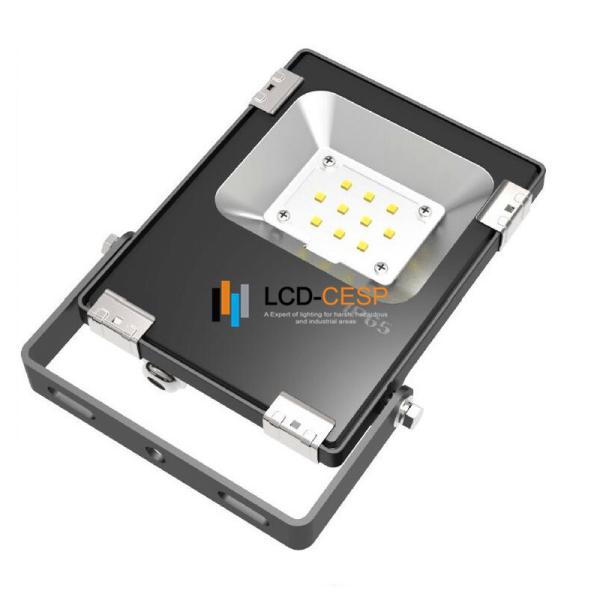

Super Slim 6500K Waterproof 1250lm IP65 LED Flood Light
6500K chip Die-cast aluminum alloy waterproof 1250lm IP65 LED flood
light 10w
Product Advantages:
1) High power LEDs.High Luminous Efficiency, 100lm/w
2) Die-casting aluminum cover. Driver cavity and Light source
cavity are parted. The inside of Light source cavity is tightly
closed to LED light source. Good cross-ventilation between external
heat sink and air, which guarantee the life span of light source
and driver.
3) Toughened glass, high temperature resistant silicon rubber
sealing belt. Internal silicone potting ensures excellent
waterproof properties and good thermal performance, high strength
toughened glass inside strengthen the safety of lamps. Inner smooth
mirror aluminum reflector enlarges the reflecting area.
4) Start without delay, Reach full brightness quickly after power
on.
5) The inside and outside of the led flood light is strong
shockproof, effectively to resolve the problems such as led falls
off, lamp bead shorten life.
10W LCD-FS-013-LN120 Specification:
| IP65 led Floodlight Power | 10W | Color Temperature | 2700-3000K |
| Input Voltage(V) | AC 85V-265V | 4000K-4500K |
| 6000K-6500K |
| Frequency | 50-60Hz | Warranty | 3 years |
| Power Factor | 0.95 | LED Chip | Bridgelux COB |
| Lumens(LM) | 1000LM | Single Package | box |
| Lumen Efficacy | 100LM/W | Packing | Neutral Package |
| Beam angle | 120° | Certificates | CE/RoHs/SAA |
| CRI (Color Rendering Index) | ≥70 | Waterproof | IP65 |
| Size | / | led floodlight Lifespan | 30,000hrs |
| Material | Black AL& Glass | OEM | Available |
UNIQUE SPECIFICATION| ITEM CODE | DESCRIPTION | LUMEN OUTPUT | COLOUR
TEMPERATURE | CIRCUIT WATTAGE |
| LCD-FS-013-LN120 | FS 10W SMD3030 chip 120º beam | 1250lm | 3000K,4000K,6500K | 10W |
| LCD-FS-023-LN120 | FS 20W SMD3030 chip 120º beam | 2700lm | 3000K,4000K,6500K | 20W |
| LCD-FS-033-LN120 | FS 30W SMD3030 chip 120º beam | 4050lm | 3000K,4000K,6500K | 30W |
| LCD-FS-053-LN120 | FS 50W SMD3030 chip 120º beam | 6750lm | 3000K,4000K,6500K | 50W |
| LCD-FS-073-LN120 | FS 70W SMD3030 chip 120º beam | 9450lm | 3000K,4000K,6500K | 70W |
| LCD-FS-103-LN120 | FS 100W SMD3030 chip 120º beam | 14000lm | 3000K,4000K,6500K | 100W |
| LCD-FS-153-LN120 | FS 150W SMD3030 chip 120º beam | 21000lm | 3000K,4000K,6500K | 150W |
| LCD-FS-203-LN120 | FS 200W SMD3030 chip 120º beam | 28000lm | 3000K,4000K,6500K | 200W |
| LCD-FS-303-LN120 | FS 300W SMD3030 chip 120º beam | 42000lm | 3000K,4000K,6500K | 300W |
| LCD-FS-403-LN120 | FS 400W SMD3030 chip 120º beam | 56000lm | 3000K,4000K,6500K | 400W |
LINE DRAWINGS
PHOTOMETRICS (Beam patterns---circular)
INSTALLATION / WARRANTY INSTRUCTIONS
