SMD 3030 Chip Waterproof IP65 100 W Led Flood Lights 240v
Luxeon 3030 SMD Chip diffuser 120 IP65 LED Flood Light 100Watt No
Waste Light
●Electrical & Light Specification |
Rated Power | 10w | 20w | 30w | 50w | 80w | 100w | 150w | 200w |
LED Source | Original Genesis SMD3030 1W/PC |
LED Qty. | 10pcs | 20pcs | 30pcs | 50pcs | 80pcs | 100pcs | 150pcs | 200pcs |
Input Voltage | AC85-265V / 50-60Hz | Lumen | 100-110Lm/W |
Driver | Meanwell | Power Factor | 0.95-0.99 |
Waterproof | IP65 | Beam Angle | 120° |
Life Time | >30000H | CCT | WW(2700K-3200K) |
NW(4000K-4500K) |
CW(5700K-6500K) |
●Material Details |
Body material | Cover | Power Wire | Electronic safety grade |
Scale light body | 5mm
Toughened Glass | 3*1.0mm²
Rubber cable | I class |
Key Advantages
- Tempered glass panel to protect the lighting source, the
transparent rate up to 93%.
- Overall Die-cast aluminum housing, ensure real IP65.
- The entire housing coated by electrophoresis paint, excellent
corrosion resistance.
- Stainless steel screws and patented spare parts.
| Innovations |
|
|
|
Ultra slim design thanks to unique reflector and heat sink integrated (Large size aluminum PCB fit aluminum die casting housing,
reflector and heat sink intergrated) |
| Innocative G-buckle technology, prevent glass off, free f screw
fixing, elegant appearane, easy for assembling. |

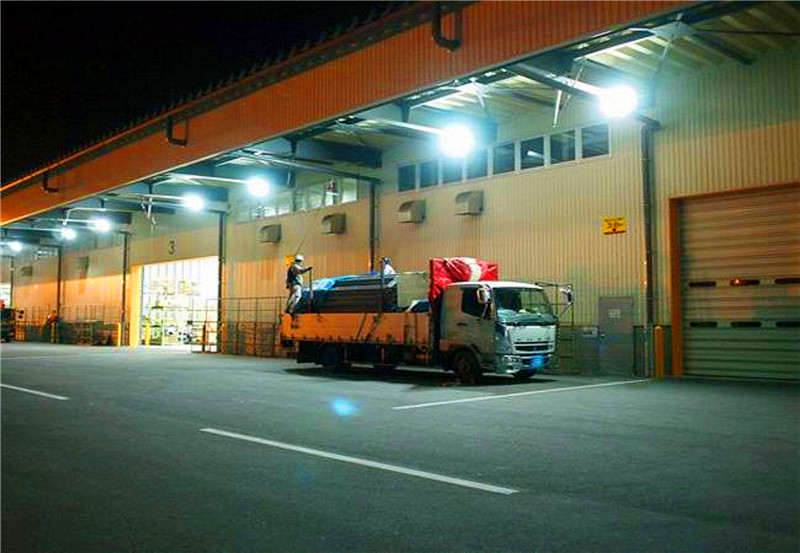

Application review
– Low area & job site lighting
– Building surrounds
– Façade lighting
– Car parking lighting
– Road & billboard lighting
Standard review
IK08 IP65 Ta -25º--+50º CE RoHs SAA TUV
Power saving opportunities
FLY’s efficient LEDs combined with a long 50 000-hour lifetime
offers substantial lifetime savings and a payback period of just
one year.
Project details:
Building with Surrounds: 300m2
Energy costs: 0.12 $usd/kWh
Illuminance: 50lx
Calculation period: 15 years
Changing lamps every 2 years for the traditional/non-LED solution
LED: Cleaning the luminaires every 3 years
Operating hours: 4380 h/a
All calculations are based on an annual increase of energy and
operating costs of 5%.
Optical reflector review
Unique, high performance optics designed for efficiency and
comfort.
- True symmetric optic provides even light distribution and
excellent light control. Benefi ts include no glare or waste light,
reduced light pollution, as well as dark spot reduction.
- With high lumen output 130-150lumen/w FLY reduces the number of
luminaires required to fulfil lighting requirements and in turn
reduces lifetime costs.
- FLY offers a slim and lightweight design for ease of installation
which is unique to the market.
Product cut sheet
Product dimension review
Installation review
FLY features a super lightweight design and is pre-wired for
effortless installation.
Slim, compact and lightweight Market leading size/weight/output
ratio for high performance with low aesthetic impact.
FLY’s lean lightweight design also makes it easy to carry, install
and integrate onto existing structures.
Pre-wired. Quick and easy installation with no wiring.
Mounting options
Three mounting options to cover all low area lighting applications.
Wall or ceiliing mounted --Area & site
Surface mounted--Facade
Mast & Post--Road & Car Parking
