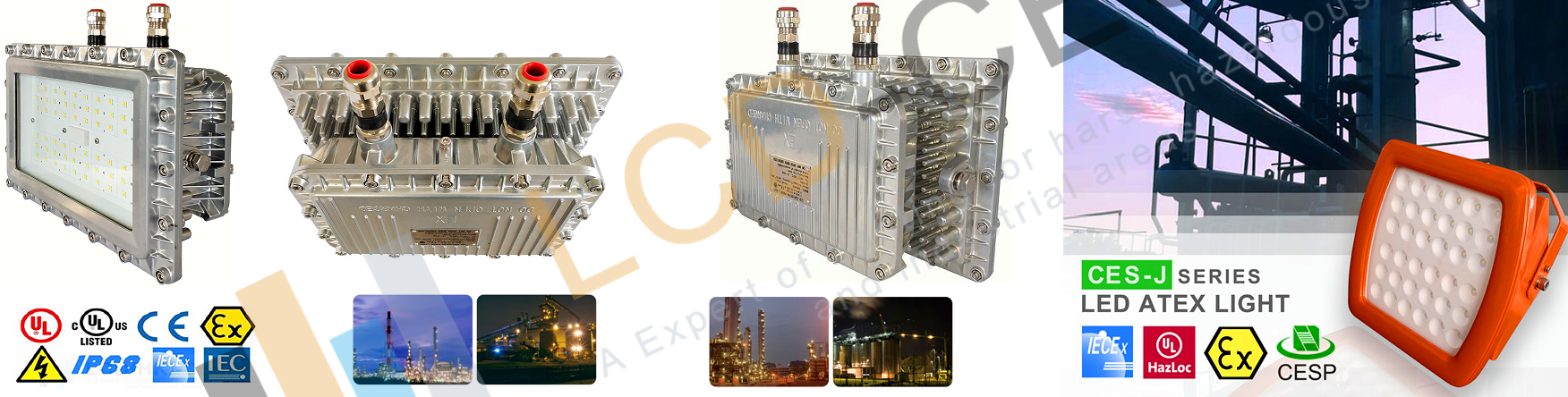

Aluminum Alloy 120 Degree 40W Cree IP68 LED Flood Light
Efficient LEDs 130lm/W Atex Light LED 25 degree IK09 IP68 LED Flood
Light 40W
Descriptions:
1. ATEX and IECEx rated for Gas and Dust hazardous Area.
2. Bridgelux LED and Meanwell driver to guarrantee the good
quality.
3. IP68 strong waterproof protection, good for wet application
4. WF2 corrosion proof grade for all the harsh places.
5. Been sold for 10 more years, win good reputation in the
worldwild.
| Product Name | 40W Atex Light |
| Model No. | LCD-CES-J40 |
| Watt | 40w |
| Lumen | 5200lm |
| Dimension | 200x200x170mm |
| Install | Bracket, Pipe |
| Appearance | Yellow, White, Grey |
| Warranty | 5 years |
| Entry | NPT |
| Gland | Included |
Electrical Technical
1. Voltage Range: 100-277VAC / 18-48VAC / 18-32VDC / 12VAC/DC
2. Power Range: 20W 30W 40W 60W 80W 100W 120W 150W 185W
3. Frequency: 50/60Hz
4. Lens Options: 25degree, 30degree, 60degree, 90degree, 120degree
5. Materials: Aluminum body, Temper glass, stainless steel bracket
based on request.
| Watt(w) | Voltage | Lumen | CRI | PF | Beam Angle | IP |
| 40W | 85-305v | 5200lm | >70 | >0.95 | 120 degree | 68 |
| 100W | 85-305v | 13000lm | >70 | >0.95 | 120 degree | 68 |
| 185W | 85-305v | 24050lm | >70 | >0.95 | 120 degree | 68 |
Install Instruction:
1. Turn off Power supply to avoid the risk of electrical shock.
2. Proper grounding is required to ensure personal safety.
3. Make certain power is off before starting installation or
maintenance.
4. Do not recess the fixture.
5. A qualified electrician should do all work.
6. Do not touch the led chips, damage may occur.
Lighting solution for Gas station
C1D2 With UL844 Approved, Groups A, B, C, D
FAQ...............................................................................................................................................................
Q1. Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality. Mixed
samples are acceptable.
Q2. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks for
order quantity more than
Q3. Do you have any MOQ limit for led light order?
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5
days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for led light?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our
suggestions.
Thirdly customer confirms the samples and places deposit for formal
order.
Fourthly We arrange the production.
Q6. Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production and confirm
the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 5 years warranty to our products.
Q8: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control
system and the defective rate will be less than 0.2%.
Secondly, during the guarantee period, we will send new lights with
new order for small quantity.
For defective batch products, we will repair them and resend them
to you or we can discuss the solution including re-call according
to real situation.
