High Lumen SMD 3030 Waterproof 185W IP68 LED Flood Light
High lumen output 24050lm IK09 waterproof IP68 LED Flood Light 185W
for 7 years
Features + benefits
The LCD-CES-J range is designed specifically for harsh & hazardous
environments which require high performance,
high reliability, White-Light, safety and durable illumination.
Using LCD-CESP’s professional LED technology, LCD-CES-J is
ATEX and IEC Ex approved for all Zone 1 applications and rated for
T5 and T6 environments.
LCD-CES-J is ideal for applications where space is restricted with
its compact, low profile design, which
also allows easy access to the back of the unit with rear cable
entries so cabling can be hidden and protected from
damage. Housed in marine grade aluminium, LCD-CES-J is IP67 and
IP68 rated and can survive the most
extreme environments.
LCD-CES-J is available in a range of different beam patterns, such
as 25º 60º 90º 120º, with revolutionary
interchangeable PC lens inserts which can be easily altered on site
delivering the ultimate flexibility to specifiers,
distributors and end users. Delivering high performance
illumination of up to 24,050 lumens,
| CERTIFICATIONS | LCD-CES-J series is a hazardous location LED lighting fixture Class
I Division 2,
Groups A,B,C and D; Group II, Zone 1 & Zone 2; Zone 21 & 22. |
| HOUSING BODY | Aluminum alloy ADC12 |
| LENS | 4mm thick tempered glass & PC reflector 25º 60º 90º 120º
+95% light transmission.
Shock and vibrations resistant. |
| PERFORMANCE | 2600 to 24,050+ lumens
Up to 135 lm/w.
From 20W up to 185W.
L70 (hrs) rated > 65,000. |
| IP67 & IP68 RATED | Dust tight and protected against the effects of immersion in water
to
depth between 15 cm and 1 meter.
0-10V dimming standard.
Ideal for heavy industry, mining, refineries, chemical industry,
coastal
marine facilities and corrosive applications. |
| MOUNTING | Surface/wall mount standard (adjustable mount bracket included).
Pendant kit optional. |
| OPERATING TEMPERATURE | From -40°F up to 122°F (-40°C to 50°C). |
| DIMMING | 0-10V dimming standard , DALI, Triac |
Technical Specifications
Certification
ATEX Rating: ATEX and IEC Ex rated for Gas and Dust
Hazardous Area rating: Zone 1 – Gas and Dust
Certificates:
UL, including C1D2
Gas: II 2 GD Ex e mb op is IIC T* Gb
Ta= Up to -30°C to +50°C (-20°C to +46°C for emergency variants)
Dust:II 2D Ex tb op is IIIC T* Db
Ta= Up to -30°C to +50°C (-20°C to +46°C for emergency variants)
IP67 & IP68
Electrical
Input:
100-277VAC, 50/60Hz only
Low voltage: 18-48V AC and 18-32V DC
Extra low voltage: 12V AC/DC
Power:
20W to 185W standard
Termination
Incoming terminal block suitable for
looping 4 core 4mm² cable
Power Factor:
>0.95
Cable Entries:
4xM20 as standard (other entries
available upon request), dispatched
complete with three ATEX/IEC Ex
approved blanking plug
Optical / Photometric Specs

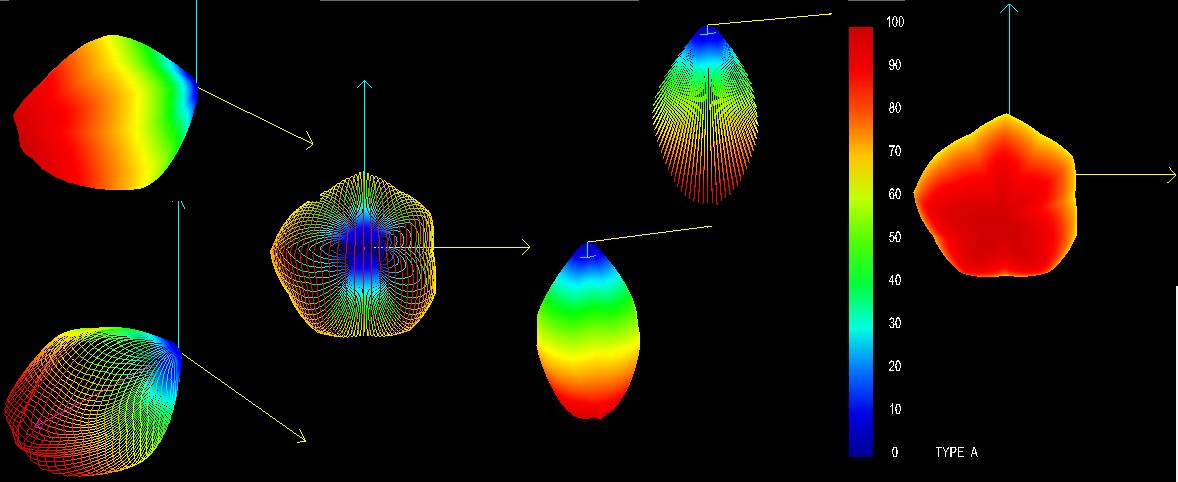

Beam Patterns-symmetric : 25°x 25° or 60°x 60° or 90°x 90° or 120°x
120°
(10 x 10 option can be upgraded to LCD-CESP Technology)
Lumen output on mains: 2,600 lm – 24,050 lm
LED type: Bridgelux or LUMILEDs SMD3030 LEDs chip
Number of LEDs: 36 / 108 / 192
CRI 75+
Colour Temperature: 3,000K 4,000K 6,000K
25º
60º
90º
120º
Mechanical/Environmental
Burning position: Universal
IP rating: IP67 & IP68
Temperature range: -30°C to +50°C (-20°C to +46°C for emergency
variants)
Weight: Please contact LCD-CESP for copy
Enclosure: Marine grade aluminium epoxy powder coated, toughened
glass, all external
fasteners and brackets are marine grade stainless steel
Unit Colour: grey , yellow, orange
Installation instructions: Please contact LCD-CESP for copy
Dimensions: Please contact LCD-CESP for copy
Mounting: Comes complete with stainless steel brackets(as shown on
below )
Other options available
