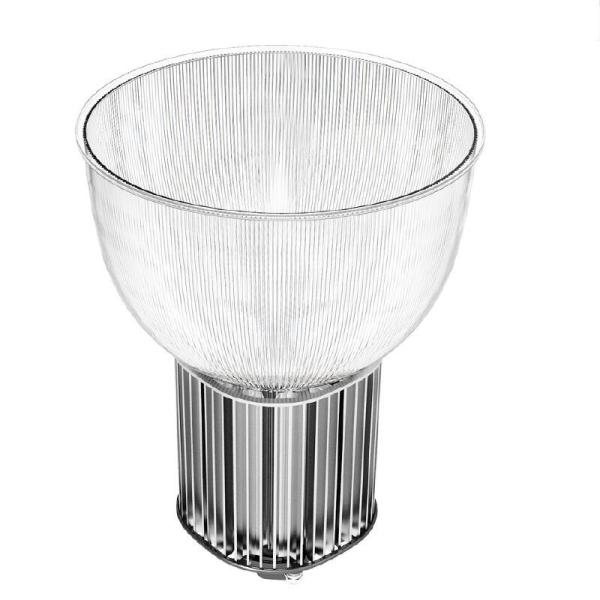

Warehouse Aluminum 80w 240V Commercial LED Flood Lights
SMD led flood light 80w Aluminum 6063 extruded 240V 60Hz beam angle
90 degree
High Power and High Lumen LED Lights
1. Big Wattage can up to 300W, ideal for high ceilings; the Diamond
Highbay LCD-HB Series also offer dimmable function for warehouses
and workshops with modern industrial decor in either commercial or
residential buildings.
2. For commercial applications, Highbay lights come with different
reflectors to deliver the appropriate lux to the specified area.
Product Details
Model Number: LCD-HB-083
Power: 80W
Lumen: 10000lm
CCT: 3000k ( Warm White ), 4000k ( Nature White ), 6500K (Cool
White)
Replacement: 200~250W MHL
Energy Saving: 70%
Application: Workshops
Dimmable: Yes
LED VS MHL Comparison Sheet
| Diamond Highbay LCD-HB Series | Can replace traditional metal halide | Applications |
| LCD-HB-063 60W (7500lm) | 100w-150w | Warehouse/gas station |
| LCD-HB-083 80W (10000lm) | 200W-250w | Workshops |
| LCD-HB-103 100W (12500lm) | 300w-350w | Factories |
| LCD-HB-153 150W (18750lm) | 400W-450w | Markets |
| LCD-HB-203 200W (25000lm) | 500w-700w | Stadiums |
| LCD-HB-253 250W (31250lm) | 750w-850w | Indoor Parking lots |
| LCD-HB-303 300W (37500lm) | 1000w-1500w | logistics Squares |
3-D heat dissipation
Professional heat dissipation structure design, modular heatsink
with perfect structure and inside airflow channels maximing the 3D
heat dissipation.
Fins Technology
Adopt compressed Fins tech, rivets the heatpipe to heatsink
closely, minimizing the heat resistnace to improving the cooling
speed greatly.
High HDT Technology
Highly efficient heatpipes contact the heat heat source firmly,
maximing the performance of heatpipe and cooling effect.
Struction Features
Composed of 4 main components: Heat Sink / LEDs engine / Optical
System / Driver. Electrical components are RoHS compliant. IP54
sealed light engines.
Full Range
| Product Number | LCD-HB-063 | LCD-HB-083 | LCD-HB-103 | LCD-HB-153 | LCD-HB-203 | LCD-HB-253 | LCD-HB-303 |
| Rated Power | 60W | 80W | 100W | 150W | 200W | 250W | 300W |
| Rated Voltage | 90-305VAC | 90-305VAC | 90-305VAC | 90-305VAC | 90-305VAC | 90-305VAC | 90-305VAC |
| Lumen (lm) | 7800 | 10400 | 13000 | 19500 | 26000 | 32500 | 39000 |
| Power Factor | >95 | >95 | >95 | >95 | >95 | >95 | >95 |
| Color Temperature | 3000-6000 K | 3000-6000 K | 3000-6000 K | 3000-6000 K | 3000-6000 K | 3000-6000 K | 3000-6000 K |
| CRI (Ra) | >75 | >75 | >75 | >75 | >75 | >75 | >75 |
| IP Rating | IP54/IP65 | IP54/IP65 | IP54/IP65 | IP54/IP65 | IP54/IP65 | IP54/IP65 | IP54/IP65 |
| LED Chip & Type | LUMILEDs SMD3030 | LUMILEDs SMD3030 | LUMILEDs SMD3030 | LUMILEDs SMD3030 | LUMILEDs SMD3030 | LUMILEDs SMD3030 | LUMILEDs SMD3030 |
| LED Qty | 63pcs | 85pcs | 105pcs | 154pcs | 203pcs | 240pcs | 308pcs |
| Driver | Meanwell/philips | Meanwell/philips | Meanwell/philips | Meanwell/philips | Meanwell/philips | Meanwell/philips | Meanwell/philips |
| Lifespan | >50,000hr | >50,000hr | >50,000hr | >50,000hr | >50,000hr | >50,000hr | >50,000hr |
| Housing Material | Aluminum6063 extruded/heat copper pipe | Aluminum6063 extruded/heat copper pipe | Aluminum6063 extruded/heat copper pipe | Aluminum6063 extruded/heat copper pipe | Aluminum6063 extruded/heat copper pipe | Aluminum6063 extruded/heat copper pipe | Aluminum6063 extruded/heat copper pipe |
| Operating Temperature | -30°C~ 50°C | -30°C~ 50°C | -30°C~ 50°C | -30°C~ 50°C | -30°C~ 50°C | -30°C~ 50°C | -30°C~ 50°C |
| Beam Angle | 45°/ 90°/ 120° | 45°/ 90°/ 120° | 45°/ 90°/ 120° | 45°/ 90°/ 120° | 45°/ 90°/ 120° | 45°/ 90°/ 120° | 45°/ 90°/ 120° |
| Carton Size | | | | | | | |
| Qty / Carton | | | | | | | |
| Warranty | 5-7 years | 5-7 years | 5-7 years | 5-7 years | 5-7 years | 5-7 years | 5-7 years |
