led outdoor wall mount flood light 50W 155lm/w asymmetric 40 degree
4000K IK08
Narrow Beam Floodlight
LCD's unique indirect reflectors provide performance asymmetric
floodlighting with low glare, 0% ULOR and a well-defined rear
cut-off.
Providing flexible, professional and highly efficientLED
floodlighting with excellent thermal management, LCD is simple and
easy to install and requires little to no maintenance
General Specification
● Suitable for exterior or covered (indoor) applications
● Variable lumen packages, one size body
● High efficacy, up to 128lm/W
● Excellent thermal management
● Instant light and hot restrike
● Energy savings, up to 66% achievable (compared to HID light
sources)
● Choice of control options for further energy savings
● Dimmable
● Tool-less contractor-friendly maintenance
● Waterproof
Datasheet:
| Product Number | LCD-FK-055 | LCD-FK-085 | LCD-FK-105 |
| Rated Power | 50W | 80W | 100W |
| Lumen (lm) | 6000 | 9600 | 12000 |
| Rated Voltage | 90-305VAC |
| Power Factor | >95 |
| Color Temperature | 3000 / 4000 / 5000 / 6000K |
| CRI (Ra) | >75 |
| IP Rating | IP65 |
| LED Chip | LUMILEDs SMD3030 |
| Driver | Meanwell/philips |
| Lifespan | >50,000hr |
| Housing Material | Aluminum |
| Operating Temperature | -30°C~ 50°C |
| Beam Angle | 60°/ 90°/ 120° |
| Warranty | 5 years |
| Certification | CE -RoHs-SAA-ETL-TUV |
Power saving and free maintaining
Now you can install a smart systems such as sensor of security and
DALI in any large area or flood light applications.
No regular relamping and too huge expensive power bills.
Floodlight configurations
Mounting

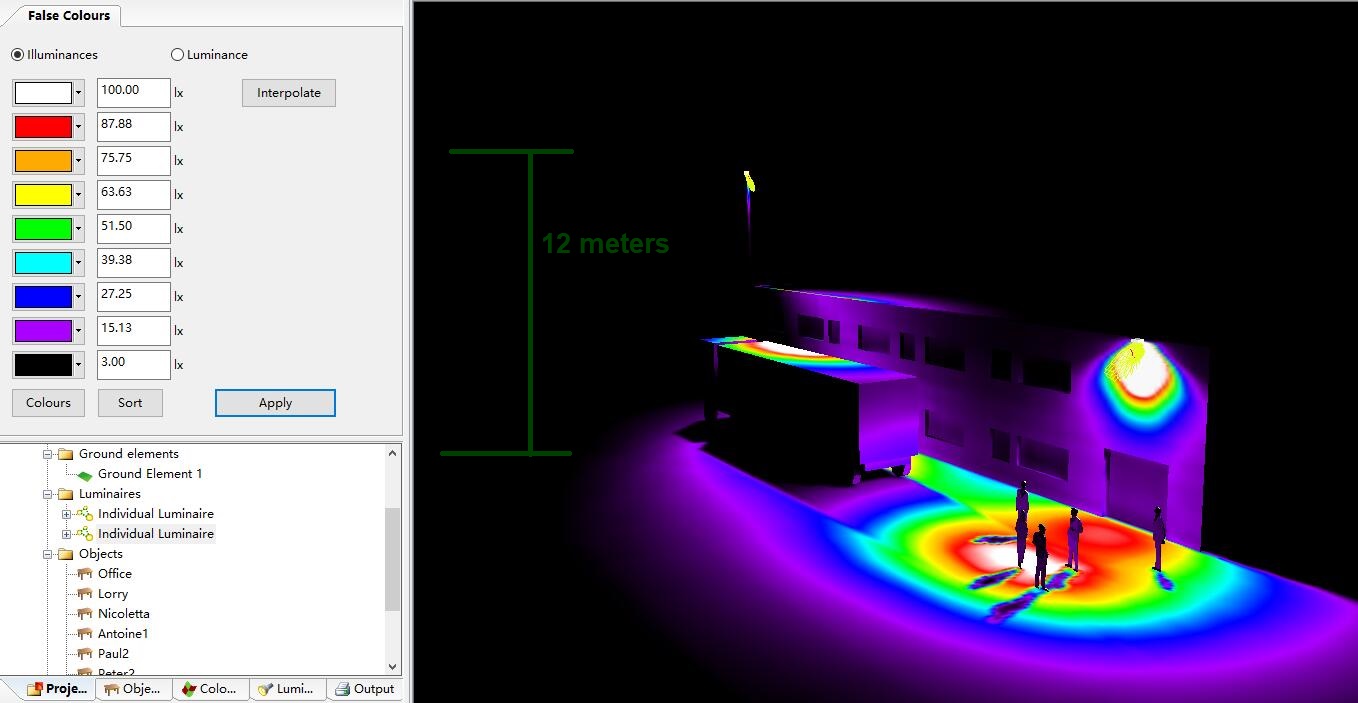

Optical distributions
Optic lens: 7°, 15°, 30°, 60°, 90°, 120°, TYPE 2/3/4/5,Asymmetric
40
Dimension
Products Specification
