High Brightness SMD3030 300W Commercial Grade Led Flood Lights
SPECIFICATION
| Product Number | LCD-HB-063 | LCD-HB-083 | LCD-HB-103 | LCD-HB-153 | LCD-HB-203 | LCD-HB-253 | LCD-HB-303 |
| Rated Power | 60W | 80W | 100W | 150W | 200W | 250W | 300W |
| Rated Voltage | 90-305VAC | 90-305VAC | 90-305VAC | 90-305VAC | 90-305VAC | 90-305VAC | 90-305VAC |
| Lumen (lm) | 7800 | 10400 | 13000 | 19500 | 26000 | 32500 | 39000 |
| Power Factor | >95 | >95 | >95 | >95 | >95 | >95 | >95 |
| Color Temperature | 3000-6000 K | 3000-6000 K | 3000-6000 K | 3000-6000 K | 3000-6000 K | 3000-6000 K | 3000-6000 K |
| CRI (Ra) | >75 | >75 | >75 | >75 | >75 | >75 | >75 |
| IP Rating | IP54/IP65 | IP54/IP65 | IP54/IP65 | IP54/IP65 | IP54/IP65 | IP54/IP65 | IP54/IP65 |
| LED Chip & Type | LUMILEDs SMD3030 | LUMILEDs SMD3030 | LUMILEDs SMD3030 | LUMILEDs SMD3030 | LUMILEDs SMD3030 | LUMILEDs SMD3030 | LUMILEDs SMD3030 |
| LED Qty | 63pcs | 85pcs | 105pcs | 154pcs | 203pcs | 240pcs | 308pcs |
| Driver | Meanwell/ philips | Meanwell/ philips | Meanwell/ philips | Meanwell/ philips | Meanwell/ philips | Meanwell/ philips | Meanwell/ philips |
| Lifespan | >50,000hr | >50,000hr | >50,000hr | >50,000hr | >50,000hr | >50,000hr | >50,000hr |
| Housing Material | Aluminum 6063 extruded/heat copper pipe | Aluminum 6063 extruded/heat copper pipe | Aluminum 6063 extruded/heat copper pipe | Aluminum 6063 extruded/heat copper pipe | Aluminum 6063 extruded/heat copper pipe | Aluminum 6063 extruded/heat copper pipe | Aluminum 6063 extruded/heat copper pipe |
| Operating Temperature | -30°C~ 50°C | -30°C~ 50°C | -30°C~ 50°C | -30°C~ 50°C | -30°C~ 50°C | -30°C~ 50°C | -30°C~ 50°C |
| Beam Angle | 45°/ 90°/ 120° | 45°/ 90°/ 120° | 45°/ 90°/ 120° | 45°/ 90°/ 120° | 45°/ 90°/ 120° | 45°/ 90°/ 120° | 45°/ 90°/ 120° |
| Carton Size | | | | | | | |
| Qty / Carton | | | | | | | |
| Warranty | 5-7 years | 5-7 years | 5-7 years | 5-7 years | 5-7 years | 5-7 years | 5-7 years |
A factory or warehouse lighting solution
1.The solution of Lighting standard (illuminance value) should
follow up the national building lighting design standard.
It must be sure 100% or maybe more to meet various requirements of
lighting standards of factories.
2. To ensure that target, it's necessary to adopt the below data
and quality control:
a) It must uses the high-efficiency lights with proper light
distribution;
b) It must uses the lights with proper CCT and CRI;
c) It should reachs the specified uniformity of illuminance;
d) It must meets the quality requirement of glare limited.
3.According to the factory applications and environment and
customer's requirements etc.
The lighting fixtures what're chose, it should mostly be with a
perfect luminous fux and efficacy, a good appearance, easy to
install, a long life span for free maintenance etc.

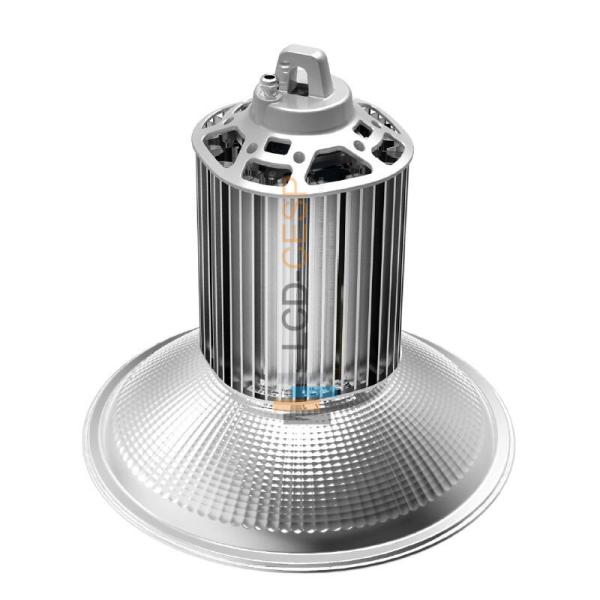

Diamond Highbay LCD-HB Series
Ideal for high ceilings; the Diamond Highbay LCD-HB Series offer
functional lighting for warehouses and workshops whilst pairing
well with modern industrial decor in either commercial or
residential buildings.
For commercial applications, Highbay lights come with different
reflectors to deliver the appropriate lux to the specified area.
LED high bay comparison
| Diamond Highbay LCD-HB Series | Can replace traditional metal halide | Applications |
| LCD-HB-063 60W (7500lm) | 100w-150w | Warehouse/gas station |
| LCD-HB-083 80W (10000lm) | 200W-250w | Workshops |
| LCD-HB-103 100W (12500lm) | 300w-350w | Factories |
| LCD-HB-153 150W (18750lm) | 400W-450w | Markets |
| LCD-HB-203 200W (25000lm) | 500w-700w | Stadiums |
| LCD-HB-253 250W (31250lm) | 750w-850w | Indoor Parking lots |
| LCD-HB-303 300W (37500lm) | 1000w-1500w | logistics Squares |
Products feature
***3-D heat dissipation Housing
Professional heat dissipation structure design. Modular heatsink
with perfect structure and inside airflow channels maximing the 3D
heat dissipation.
***Compressed Fins Technology
Creative compressed Fins tech. rivets the heatpipe to heatsink
closely, minimizing the heat resistnace, greatly improving the
cooling. It is also much lighter.
***Patented HDT technology
Highly efficient heatpipes contact the heat heat source firmly,
maximing the performance of heatpipe and cooling effect.
***Light Engine
Composed of 4 main components: Heat Sink / LEDs engine / Optical
System / Driver. Electrical components are RoHS compliant. IP54
sealed light engines.
LEDs tested by ISO 17025-2005 accredited lab in accordance with
IESNA LM-80 guidelines extrapolations in accordance with IESNA
TM-21. Metal core board ensures greater heat transfer and longer
lifespan.
***LEDs
Composed of high performance white LEDs. Color temperature as per
ANSI/NEMA bin Neutral White, 4000 Kelvin nominal (3000 +/-500K or
5500K to 6500K), CRI 75 Min.
***Heat Sink
Anodized 6063-T5 Aluminum & copper pipe for a high resistance to
corrosion, designed to ensure high efficacy and superior cooling by
natural vertical convection.
Air flow pattern always close to LEDs and driver optimizing their
efficiency and life. Product does not use any cooling device with
moving parts (only passive cooling).
***Optical System beam angle reflectors
Flake designed high-purity aluminum reflectors 45°,90°,120°with PC
cover option to meet professional light distribution, to adapt to
different situations.
The reflector is made of pure aluminium(99.8%) which is
anti-oxidation and unfading in colour, ensuring the reflection..
***Driver
With Meanwell or Philips driver,high power factor of 90-95% min.
Electronic driver, operating range 50/60 Hz.
Auto adjusting universal voltage input from 85 to 277 VAC or 220 to
240 VAC rated for both application line to line or line to neutral,
ClassI,
THD of 20% max. 0-10V dimming driver included, dimming leads
pre-wired to controls except when DD option is selected.
The current supplying the LEDs will be reduced by the driver if the
driver experiences internal overheating as a protection to the LEDs
and the electrical components.
Output is protected from short circuits, voltage overload and
current overload. Automatic recovery after correction. Standard
built in driver surge protection of 2.5kV (min).
GENERAL SPECIFICATIONS| Models | LCD-HB-063 / 083 / 103 / 153 / 203 / 253 / 303 |
| IP Rating | IP54 (IP65 on requests) |
| Operating Temperature | -30°C~ 50°C |
| Beam Angle | 45° - 90° - 120° |
| Lifespans | >50,000 Hrs |
| Lumen | 7,800lm - 39,000lm |
| Warranty | 5 warranty |
| Certification | CE -RoHs-SAA-ETL-TUV |
APPLICATIONS
Warehouse / Workshops / Gas Stations / Factories
Markets Stadiums / Indoor Parking lots / Squares
