5 Years Warranty 6500K 100 Watt IP66 LED Flood Light
Best heat dissipation housing 140 lumen/w IP66 Led Flood Light for
long lifespan
100Watt LED FKJ Flood Light Specifications:
1. Model: LCD-FKJ-103
2. Wattage: 100 Watt
3. Lumen: 140Lm/W
4. Total Lumen: 10000-14000LM
5. Voltage: AC85-265V
6. LED Chip Brand: Bridgelux
7. LED Chip Quantity: 94pcs
8. Driver: Meanwell HLG-100H
9. Power Factor: >0.9
10. Color Temperature: Warm White / Natural White / Cool White
11. Life Span: >50000Hrs
12. Lumen Maintenance: >70% (35000Hrs)
13. IP Protection Level: IP65
14. Lamp Body Material: Aluminum
15. Body Color: Black
16. Warranty: 5 Years Warranty
17. Operating Temperatures: -40℃~+50℃
18. Operating Humidity Range: 10%~90%
19. Certificate: CE and ROHS
20. Product Size:
Product Features:
1. Light weight, high thermal conductivity of aluminum sheet
material to build, more refined, more lightweight;
2. Easy to install and assembly, screw lock easy to install;
3. Professional design, fashion sense, focuses on heat sink design,
protected by a number of patented technologies;
4. Bracket angle 180°, 180 degree adjustment, irradiation angle
random change.
100Watt LED Flood Light Application:
- Tunnels, Subways, Underground Lightings;
- Gymnasiums, Sports Stadium Lightings;
- Buildings, Billboard Lightings; Gas Stations, Garage Lightings;
- Parks, Garden Lightings;
- Workshops, Factory Lightings;
- Warehouses, Storage Lightings;
- Yards, Square Lightings;
- Roads, Highway Lightings;
- Stations, Dock Lightings etc
FKJ Family
| Item Number | light source | Power | Colour Name | CCT(K) | CRI | Voltage (VAC) | Luminaire Flux(lm) | Luminaire efficacy | N.G.(KG) | Unit colour |
| FKJ-603AW-LN30-B | LEDs SMD3030 | 600w | WW | 3000K | Ra>75 | 90-305 | 84,000 | 140lm/w | 16 | Balck |
| FKJ-603AN-LN60-B | LEDs SMD3030 | 600w | NW | 4000K | Ra>75 | 90-305 | 84,000 | 140lm/w | 16 | Balck |
| FKJ-603AC-LN90-B | LEDs SMD3030 | 600w | CW | 6500K | Ra>75 | 90-305 | 84,000 | 140lm/w | 16 | Balck |
| FKJ-603AW-LN120-B | LEDs SMD3030 | 600w | WW | 3000K | Ra>75 | 90-305 | 84,000 | 140lm/w | 16 | Balck |
| FKJ-603AN-LNTYPEI-B | LEDs SMD3030 | 600w | NW | 4000K | Ra>75 | 90-305 | 84,000 | 140lm/w | 16 | Balck |
| FKJ-603AC-LNTYPEII-B | LEDs SMD3030 | 600w | CW | 6500K | Ra>75 | 90-305 | 84,000 | 140lm/w | 16 | Balck |
| FKJ-603AW-LNTYPEIII-B | LEDs SMD3030 | 600w | WW | 3000K | Ra>75 | 90-305 | 84,000 | 140lm/w | 16 | Balck |
| FKJ-603AN-LNTYPEIV-B | LEDs SMD3030 | 600w | NW | 4000K | Ra>75 | 90-305 | 84,000 | 140lm/w | 16 | Balck |
| FKJ-603AC-LNTYPEV-B | LEDs SMD3030 | 600w | CW | 6500K | Ra>75 | 90-305 | 84,000 | 140lm/w | 16 | Balck
|

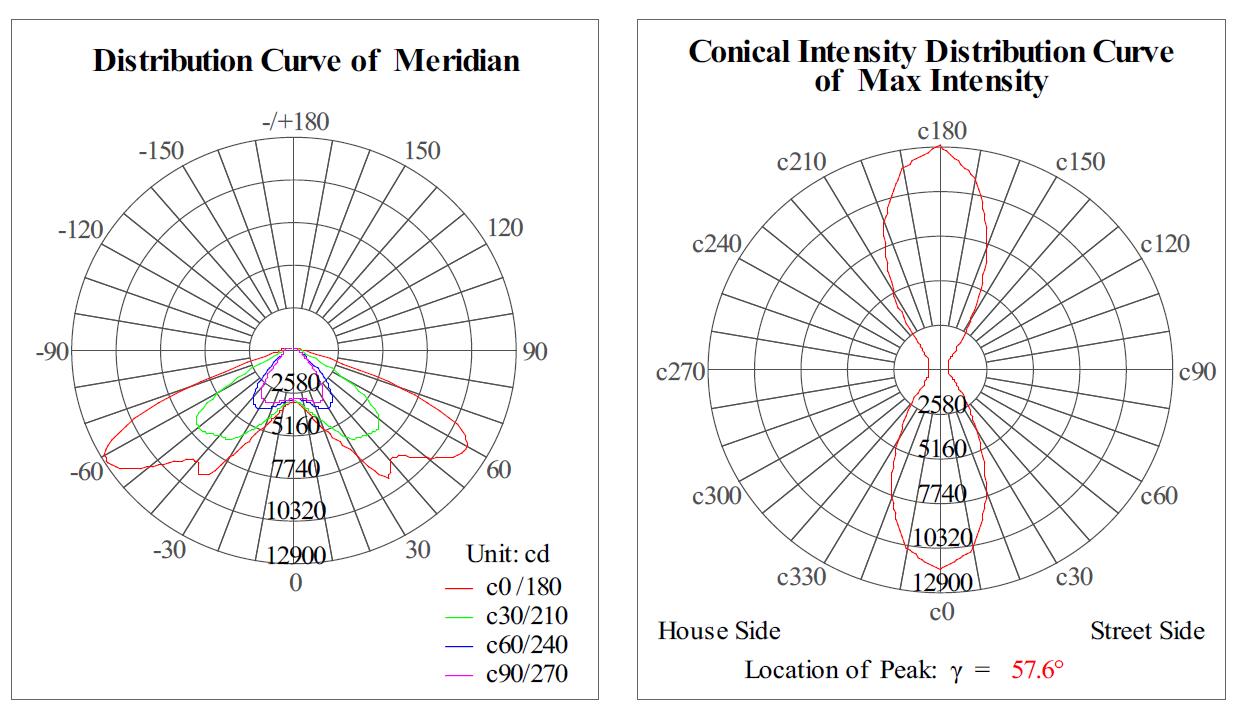

Optical choice
Unique, high performance optics designed for efficiency and
comfort.
Product Dimension

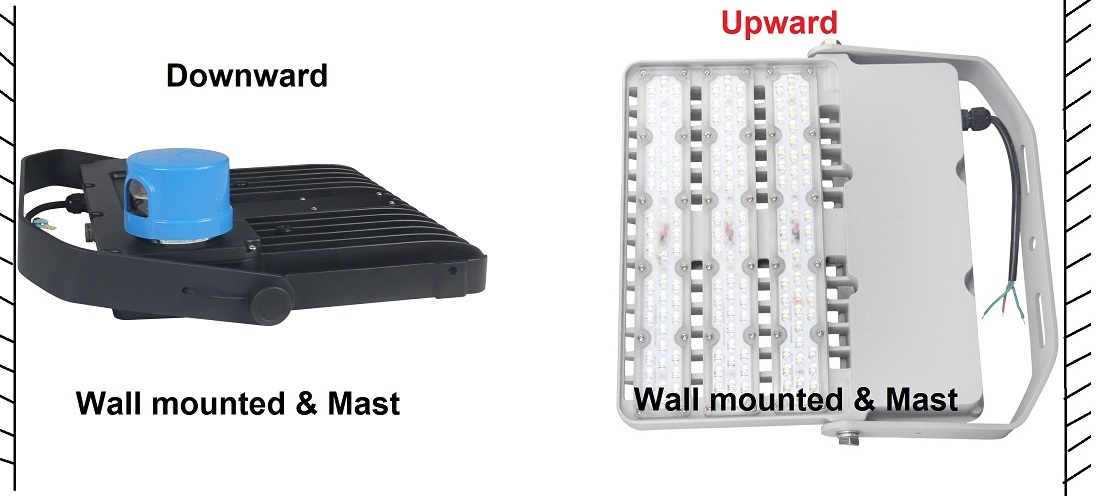

Installation
Tiger series Flood light features a super lightweight design and is
pre-wired for effortless installation.
