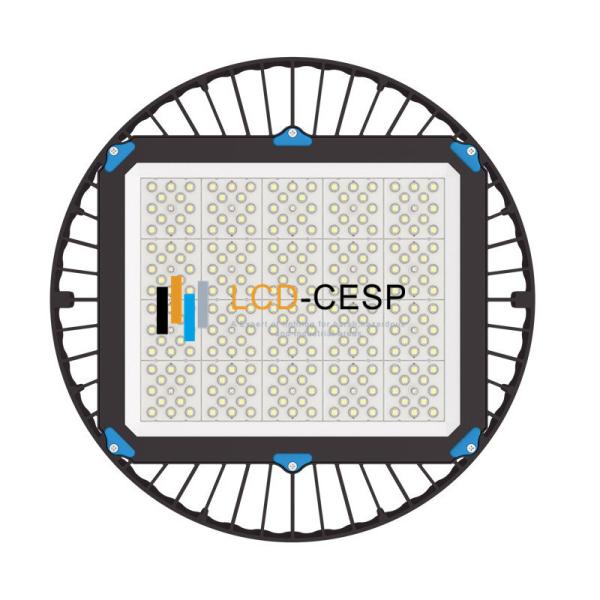

Warehouse Hook Round 220V IP66 200W LED Flood Light
high lumen 155lm/w 220V waterproof IP66 LED Flood Light 200W for
warehouse light
Key Benefits and OUTSTANDING PERFORMANCE IN WAREHOUSE AND AREA LIGHTING
(1). With LCD-HB-S3-series LED site & area and floodlight
luminaires. LCD-HB-S3 series provides your indoor & outdoor area
with bright, uniform illumination
while slashing energy and maintenance costs compared to traditional
lighting fixtures saving power up to 75-80% .
(2). instill a sense of security and attract attention in any large
area or floodlighting application without the hassle of frequent
relamping or high utility bills for free maintenance.
(3). A wide variety of sizes, lumen outputs, modules, optics and
other features offer increased flexibility without under- or
over-lighting the space for anti-glare and reducing light
pollution.
(4). Application-specific optics, such as automotive front row and
airport apron, ensure that light is directed exactly where it is
needed to maximize efficiency and minimize operating costs.
(5). With the highest lumen output available on the market today,
Tiger FKJ series can help you achieve optimal light levels with
fewer luminaires compared to traditional 1000-2000W HID solutions
without compromising light quality or a sense of security for those
in the area.
Feature
・LED lighting used for harbours to be approved
・60m/s wind resistance
・Heavy anti salinity coating
・UV and shock resistant PC resin exterior cover
・Long Life : 50,000hr (70% lumen maintenance factor)
・Dustproof/Waterproof : IP66
Applications
・Container/ terminal lighting (High-mast lights)
・Apron floodlighting for Airport
・Car park (High-mast lights)
HB Family
| TyPE | LCD-HB-S3-055-LNXX | LCD-HB-S3-085-LNXX | LCD-HB-S3-105-LNXX | LCD-HB-S3-125-LNXX | LCD-HB-S3-155-LNXX | LCD-HB-S3-205-LNXX |
| Luminous Flux | 7,500 lm | 12,000 lm | 15,000 lm | 18,000 lm | 22,500 lm | 30,000 lm |
| Lens | 30º narrow | 30º narrow | 30º narrow | 30º narrow | 30º narrow | 30º narrow |
| Power consumption | 50W | 80W | 100W | 120W | 150W | 200W |
| Color Temperature | 3000K | 4000K | 6500K | 3000K | 4000K | 6500K |
| Color Rendering | Ra>75 | Ra>75 | Ra>75 | Ra>75 | Ra>75 | Ra>75 |
| Input Voltage | AC100-277V | AC100-277V | AC100-277V | AC100-277V | AC100-277V | AC100-277V |
| Frequency | 50-60 Hz | 50-60 Hz | 50-60 Hz | 50-60 Hz | 50-60 Hz | 50-60 Hz |
| Main Body | Aluminum Alloy | Aluminum Alloy | Aluminum Alloy | Aluminum Alloy | Aluminum Alloy | Aluminum Alloy |
| Outer lens | PC with Anti-UV & Hard-coating | PC with Anti-UV & Hard-coating | PC with Anti-UV & Hard-coating | PC with Anti-UV & Hard-coating | PC with Anti-UV & Hard-coating | PC with Anti-UV & Hard-coating |
| Exterior Painting | Heavy-duty salt resistant paint | Heavy-duty salt resistant paint | Heavy-duty salt resistant paint | Heavy-duty salt resistant paint | Heavy-duty salt resistant paint | Heavy-duty salt resistant paint |
| Mount Type | Adjustable bracket & eye bolt | Adjustable bracket & eye bolt | Adjustable bracket & eye bolt | Adjustable bracket & eye bolt | Adjustable bracket & eye bolt | Adjustable bracket & eye bolt |
| Operating Temperature | -30º--+50° | -30º--+50° | -30º--+50° | -30º--+50° | -30º--+50° | -30º--+50° |
| Rated Life (L70) | 50,000h | 50,000h | 50,000h | 50,000h | 50,000h | 50,000h |
| IK rate | IK09 | IK09 | IK09 | IK09 | IK09 | IK09 |
| Surge protection | 2-4Kv(normal mode) 10KV(on requests) | 2-4Kv(normal mode) 10KV(on requests) | 2-4Kv(normal mode) 10KV(on requests) | 2-4Kv(normal mode) 10KV(on requests) | 2-4Kv(normal mode) 10KV(on requests) | 2-4Kv(normal mode) 10KV(on requests)
|
LIGHTING PERFORMANCES
Product dimension
Installation
Packing data
