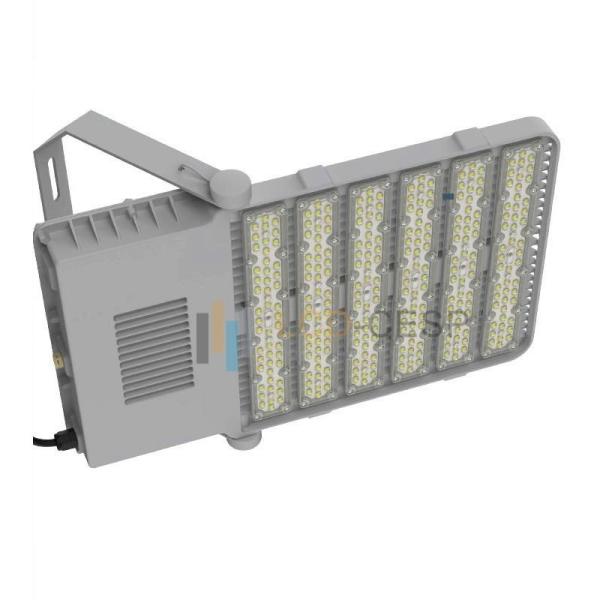

Outdoor Tennis Court 300w WeatherProof IP66 Led Flood Light
Outdoor tennis court 300w weather proof IP66 Led Flood Light for no
maintenance
What to look for
Lumens:
Used to measure a light’s brightness—the higher the lumen the
brighter the light. When choosing a floodlight, the larger the
space the more lumens you will require.
PIR:
This stands for passive infrared receiver. It means that the
floodlight is activated when motion is detected.
Beam angle:
The angle at which the light is distributed—the wider the angle,
the more area is covered by light.
Colour temperature:
Measured in Kelvin (k) from ‘warm’ to ‘cool’—the higher the number
of Kelvin the cooler the light. If you are choosing floodlights to
illuminate garden features you may want to choose a warmer, more
welcoming colour temperature with a low Kelvin rating, such as a
warm white. A cooler white with a higher Kelvin rating provides a
crisper light, ideal for practical or security purposes.
IP65:
This means that the floodlight is protected against water sprays
from all angles.
Basic Info
- Power: 300w
- Model No.: LCD-FKJ-303
- Power Supply: AC
- Colour Temp: 3000K 4000K 5000K 5700K
- LED Chips Brand: Philips Lumileds
- CRI: 85
- Input Voltage: 220v, 100-277VAC/200-480VAC
- PF: 0.95
- Lamp Body Material: Aluminum Alloy
- IP Rating: IP65
- Housing Finish Color: Black / Grey
- Application: Square, Highway, Garden
- Replacement Of HPS MH HID: 1000W
- Certification: CE, ETL, RoHS
- Photocell: Available
FKJ Family
| Item Number | light source | Power | Colour Name | CCT(K) | CRI | Voltage (VAC) | Luminaire Flux(lm) | Luminaire efficacy | N.G.(KG) | Unit colour |
| FKJ-603AW-LN30-B | LEDs SMD3030 | 600w | WW | 3000K | Ra>75 | 90-305 | 84,000 | 140lm/w | 16 | Balck |
| FKJ-603AN-LN60-B | LEDs SMD3030 | 600w | NW | 4000K | Ra>75 | 90-305 | 84,000 | 140lm/w | 16 | Balck |
| FKJ-603AC-LN90-B | LEDs SMD3030 | 600w | CW | 6500K | Ra>75 | 90-305 | 84,000 | 140lm/w | 16 | Balck |
| FKJ-603AW-LN120-B | LEDs SMD3030 | 600w | WW | 3000K | Ra>75 | 90-305 | 84,000 | 140lm/w | 16 | Balck |
| FKJ-603AN-LNTYPEI-B | LEDs SMD3030 | 600w | NW | 4000K | Ra>75 | 90-305 | 84,000 | 140lm/w | 16 | Balck |
| FKJ-603AC-LNTYPEII-B | LEDs SMD3030 | 600w | CW | 6500K | Ra>75 | 90-305 | 84,000 | 140lm/w | 16 | Balck |
| FKJ-603AW-LNTYPEIII-B | LEDs SMD3030 | 600w | WW | 3000K | Ra>75 | 90-305 | 84,000 | 140lm/w | 16 | Balck |
| FKJ-603AN-LNTYPEIV-B | LEDs SMD3030 | 600w | NW | 4000K | Ra>75 | 90-305 | 84,000 | 140lm/w | 16 | Balck |
| FKJ-603AC-LNTYPEV-B | LEDs SMD3030 | 600w | CW | 6500K | Ra>75 | 90-305 | 84,000 | 140lm/w | 16 | Balck |
Optical choice
Unique, high performance optics designed for efficiency and
comfort.
Installation
Tiger series Flood light features a super lightweight design and is
pre-wired for effortless installation.
Applications:
• Security • Billboard
• Gantry • Road
• Car Parks • Tunnel
• Perimeter Fence • Building
• Canopy • tower light
• Facade • work site
