Aluminum Waterproof 6000K 80W IP67 LED Flood Light
Power saving 75% waterproof IP67 LED Flood Light 80W IK08 for
security lighting
FA Series
50w, 80w, 100w, 150w, 200w, 250w, 300w
| Product Number | FA-055 | FA-085 | FA-105 | FA-155 | FA-205 | FA-255 | FA-305 |
| Rated Power | 50W | 80W | 100W | 150W | 200W | 250W | 300W |
| Lumen (lm) | 6000 | 9600 | 12000 | 18000 | 24000 | 30000 | 36000 |
| Rated Voltage | 90-305VAC |
| Power Factor | >95 |
| Color Temperature | 3000 / 4000 / 5000 / 6000K |
| CRI (Ra) | >75 |
| IP Rating | IP65 |
| LED Chip | LUMILEDs SMD3030 |
| Driver | Meanwell/philips |
| Lifespan | >50,000hr |
| Housing Material | Aluminum |
| Operating Temperature | -30°C~ 50°C |
| Beam Angle | 60°/ 90°/ 120° |
| Warranty | 5 years |
| Certification | CE -RoHs-SAA-ETL-TUV |
With Incredible output and compact size,
LED Floodlite FA Series, reflects the embedded high performance LED
technology. FA Series are ideal for landscape, signage, accent,
security and general area lighting in many commercial and
residential applications.
With a compact and modern design and the latest SMD LED technology,
we have developed an outstanding combination of high performance &
bright LED’s to create one of the most efficient fixtures @ 90 lxw.
The superior efficacy of the FA Series results in remarkable energy
and maintenance savings.
Versatile, light and strong housing made of die-cast aluminum,
featuring high heat dissipation and superior aesthetics.
Corrosion resistant with longer lifetime. Tempered glass, much
stronger than regular glass, reduces the risk of injury caused by
jagged glass shards. Impact resistant IK08 grade and protection
rating IP65. Advanced heat sink design ensures LED does not exceed
temperature ratings across all specified ambient
conditions.Universal voltage capacity 100-2277v 50/60Hz.
FA Series Floodlite can be wall, ground, or pole mounted,
making it ideal for all commercial, industrial, and residential low
wattage floodlighting applications.
Standards and regulation
CE, Directive 2014/30/EU, 2014/35/EU ,2009/125/EC
1194/2012/EU, 2011/65/EU, EN 60598, EN 62471, EN 55015,
EN 61000-3-2, EN 61000-3-3, EN 62493, EN 61547.
Other options available
Optional precabling
Other RAL colours available on request
Product DIMENSIONS
AxBxC (mm ):
| Item Name | AxBxC (MM) |
| FA-085/105/153 IP67 flood light | 389.2x296.7x57 |
| FA-205 IP67 flood light | 436.6x345.7x57 |
| FA-255 IP67 flood light | 436.6x345.7x57 |
| FA-305/353 IP67 flood light | 582x385x60 |
Weight (kg ):
| Item Name | Weight (KG) |
| FA-085/105/153 IP67 flood light | 3.4 |
| FA-205 IP67 flood light | 4.8 |
| FA-255 IP67 flood light | 7.2 |
| FA-305/353 IP67 flood light | 7.5 |

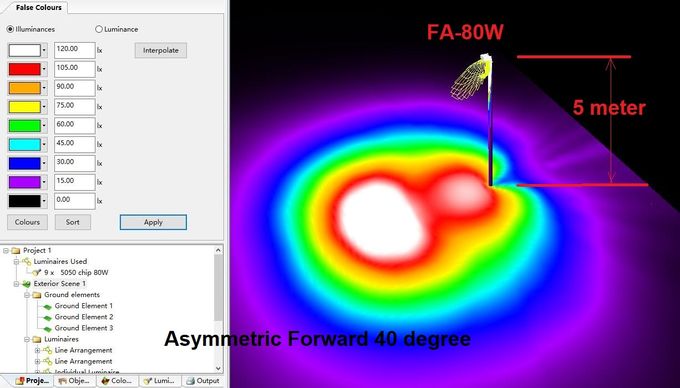

Available photometric distributions:
• Asymmetric Forward
• Asymmetric Narrow
• Asymmetric Wide
• Asymmetric Extra Wide Flood
• Asymmetric Forward Throw Narrow
• Symmetrical Wide Flood
• Symmetrical Narrow Spot
• Symmetrical Wide
• Symmetrial Forward
Rated initial chromaticity co-ordinate values:
4000K - CIE(x= 0.38, y= 0.38) 5SDCM
6500K - CIE(x= 0.34, y= 0.35) 5SDCM
