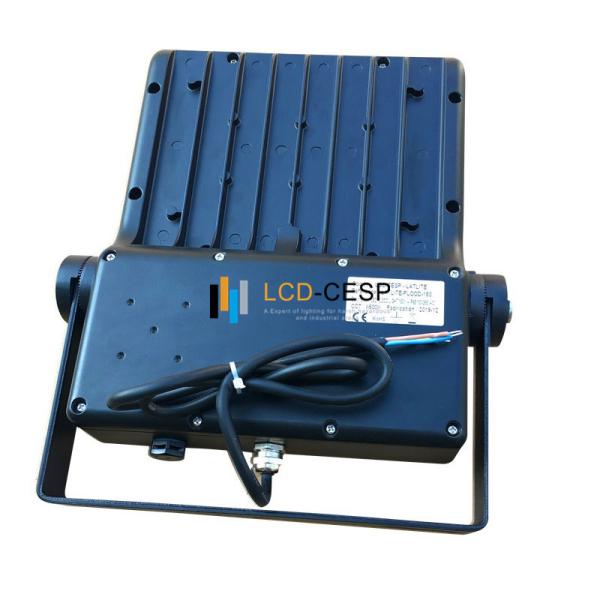

Car Parking 45 Degree 150W SMD5050 IP67 LED Flood Light
Asymmetric Forward 45 degree bright lighting IP67 LED flood light
150W for Car parking
Overview
FA LED is a family of cost effective, energy efficient floodlights.
These are the ideal replacements for up to 500W Quartz Halogen
floodlights, and deliver energy savings of up to 85% with over 10
years of service life. FA LED floodlights are great for
illuminating yards, driveways, buildings, billboards and signage,
and for general flood lighting.
- Very budget friendly flood luminaire, with an extremely easy
installation process
- Delivers energy savings of up to 85%
- CE Certified to Europe and Asia safety standards.
- Mounts easily to junction box or under building cave. Suitable for
ground mount applications
- Luminaire available with 4000K and 5000K options, in addition to
having 50,000 hours life
- Knuckle and yoke mounting options available, great for ground
mount, junction box or building mount applications
- Your satisfaction is our top priority, this product is backed by
our limited 5-year warranty policy
- Replaces up to 500W Quartz Halogen, saves 80% energy
Datasheet for FA-150W Floodlight
| Product Number | LCD-FA-155 | Applications |
| Rated Power | 150W | High Power 150W floodlight with Bright lumen 18000lm, can be use
for for all outdoor places like Gardons, Sport area and indoor like
swimming poor. |
| Rated Voltage | 90-305VAC |
| Lumen (lm) | 18000 |
| Power Factor | >95 |
| Color Temperature | 3000-6000 K |
| CRI (Ra) | >75 |
| IP Rating | IP65 |
| LED Chip & Type | LUMILEDs SMD3030 |
| Driver | Meanwell/philips |
| Lifespan | >50,000hr |
| Housing Material | Aluminum |
| Operating Temperature | -30°C~ 50°C |
| Beam Angle | 60°/ 90°/ 120° |
| Warranty | 5 years |
| Certification | CE -RoHs-SAA-ETL-TUV |
Application
• Tunnels & large area
• Industrial & Maintenance
• Car Park & billboard
• Sport facilities
• fishing boat & vessel
Standards and regulation
CE, Directive 2014/30/EU, 2014/35/EU ,2009/125/EC
1194/2012/EU, 2011/65/EU, EN 60598, EN 62471, EN 55015,
EN 61000-3-2, EN 61000-3-3, EN 62493, EN 61547.
Other options available
Optional precabling
Other RAL colours available on request
Available photometric distributions:
• Asymmetric Forward
• Asymmetric Narrow
• Asymmetric Wide
• Asymmetric Extra Wide Flood
• Asymmetric Forward Throw Narrow
• Symmetrical Wide Flood
• Symmetrical Narrow Spot
• Symmetrical Wide
• Symmetrial Forward
Rated initial chromaticity co-ordinate values:
4000K - CIE(x= 0.38, y= 0.38) 5SDCM
6500K - CIE(x= 0.34, y= 0.35) 5SDCM
Product DIMENSIONS
AxBxC (mm ):
| Item Name | AxBxC (MM) |
| FA-085/105/153 IP67 flood light | 389.2x296.7x57 |
| FA-205 IP67 flood light | 436.6x345.7x57 |
| FA-255 IP67 flood light | 436.6x345.7x57 |
| FA-305/353 IP67 flood light | 582x385x60 |
Weight (kg ):
| Item Name | Weight (KG) |
| FA-085/105/153 IP67 flood light | 3.4 |
| FA-205 IP67 flood light | 4.8 |
| FA-255 IP67 flood light | 7.2 |
| FA-305/353 IP67 flood light | 7.5 |
