65 watt flood light led,IP67,240V,160lumen/W, 6500K,50/60Hz,Ex
light Zone 1 & 21
Features and benefits
1. Energy saving. Reduce the number of luminaires needed,providing
excellent luminaries efficacy and more light.

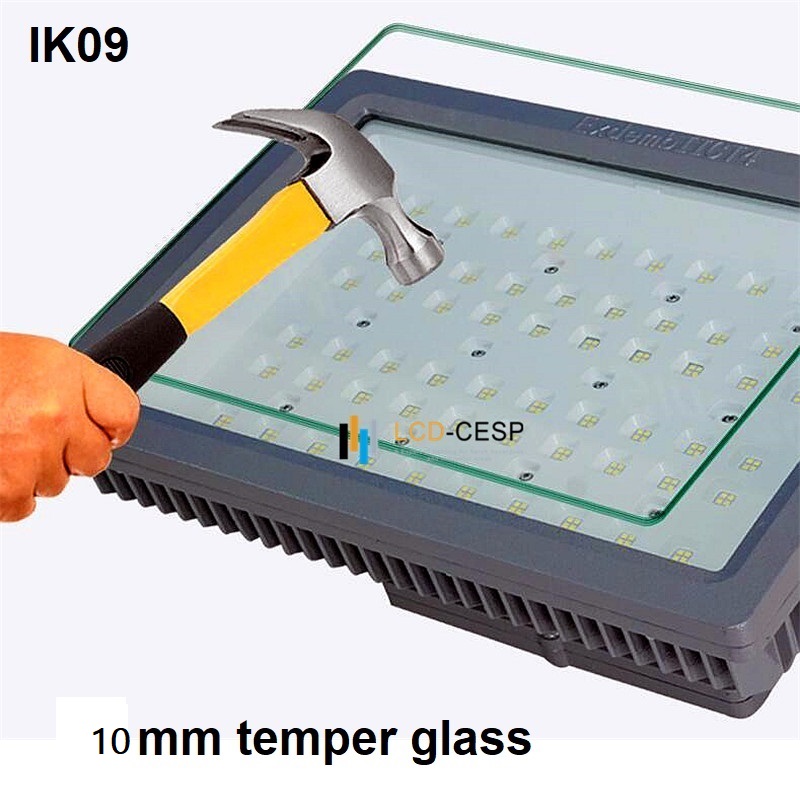

2. Shock and vibration resistant 12mm tempered glass, reduces the
risk of premature failure.
3. LUMILEDs LED source. High efficacy lumen output and high CRI.
4. Driver module assembly High efficacy top Meanwell HLG series LED
drivers are designed to provide reliable operation in even the
harshest environments.

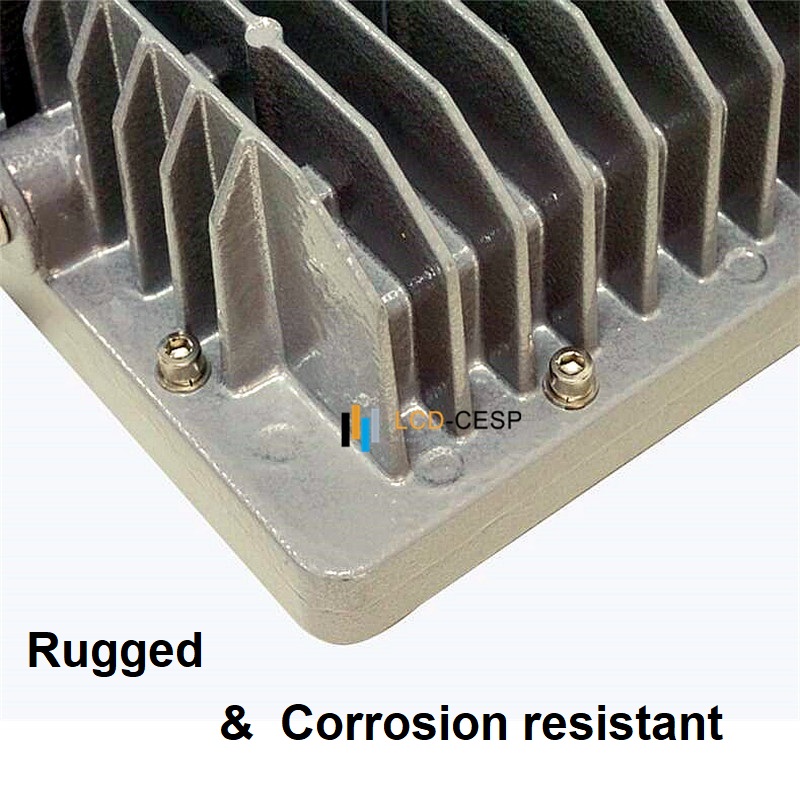

5. High strength aluminum alloy housing,IP66, can be used in wet
locations, robust construction suitable corrosive applications.
6. Adjusting plate, customer can adjust different mounting angles.
7. 50W, 80W,100W,120W,150W, 200W, 250W available. Optional luminous
intensity. distribution for different applications.
8. L70 rated for >100, 000 hours @25ºC.
9. Waterproof IP66 and IK code:IK09
10. Ambient temperature from -30ºC to +50ºC.
General information
| Product type | Size (mm) | Weight(kg) | Ambient temp.(ºC) | Max.surface temp. ( test in 25ºC) | Temp.classification | IP code | Insulation | IK code |
| LCD-BHD6610-50-LNXXX | 330x255x166mm | 10KG | - 30ºC~+ 50ºC | 42 | T5-T6 | IP66 | I | IK09 |
| LCD-BHD6610-80-LNXXX | 330x255x166mm | 10KG | - 30ºC~+ 50ºC | 43 | T5-T6 | IP66 | I | IK09 |
| LCD-BHD6610-100-LNXXX | 330x255x166mm | 10KG | - 30ºC~+ 50ºC | 45 | T5-T6 | IP66 | I | IK09 |
| LCD-BHD6610-120-LNXXX | 446x306x166mm | 14.5KG | - 30ºC~+ 50ºC | 46 | T5-T6 | IP66 | I | IK09 |
| LCD-BHD6610-150-LNXXX | 446x306x166mm | 14.5KG | - 30ºC~+ 50ºC | 46 | T5-T6 | IP66 | I | IK09 |
| LCD-BHD6610-200-LNXXX | 446x306x166mm | 14.5KG | - 30ºC~+ 50ºC | 46 | T5-T6 | IP66 | I | IK09 |
| LCD-BHD6610-250-LNXXX | 520x360x200mm | 20.6KG | - 30ºC~+ 50ºC | 45 | T5-T6 | IP66 | I | IK09 |
| LCD-BHD6610-300-LNXXX | 520x360x200mm | 20.6KG | - 30ºC~+ 50ºC | 46 | T5-T6 | IP66 | I | IK09
|
Certifications & Ratings
· Ex nR IIC T5 or T6 Gc
· Ex tc lllC T95ºC or T85ºC Dc IP 66
· ATEX Compliant
· ABS Compliant
· CE Compliant
· RoHS Compliant
· IP 66 Rated
Performance patameter
| Product type | Rated input voltage | Rated input current | Voltage frequency | Rated power | LED input current | PF | THD |
| LCD-BHD6610-50-LNXXX | 100~277VAC | 1~0.21 | 50/60Hz | 50W | 600mA | >0.98 | <10% |
| LCD-BHD6610-80-LNXXX | 100~277VAC | 1~0.32 | 50/60Hz | 80W | 600mA | >0.98 | <10% |
| LCD-BHD6610-100-LNXXX | 100~277VAC | 1.1~0.37 | 50/60Hz | 100W | 600mA | >0.98 | <10% |
| LCD-BHD6610-120-LNXXX | 100~277VAC | 1.4~0.45 | 50/60Hz | 120W | 600mA | >0.98 | <10% |
| LCD-BHD6610-150-LNXXX | 100~277VAC | 1.65~0.5 | 50/60Hz | 150W | 600mA | >0.98 | <10% |
| LCD-BHD6610-200-LNXXX | 100~277VAC | 1.9~0.85 | 50/60Hz | 200W | 600mA | >0.98 | <10% |
| LCD-BHD6610-250-LNXXX | 100~277VAC | 1.85~0.78 | 50/60Hz | 250W | 600mA | >0.98 | <10% |
Photometric parameters
| Optical data |
| Product type | Color temp. | CRI | CCT(K) | luminous flux(lm) | Beam angle(°) |
| LCD-BHD6610-50-LNXXX | warm / Neutral / cool | 83/80/72 | 3000k / 4000K / 6500K | 7750 | 30°/60°/90°/110°/TYPE2/TYPE3/asymmetric 40° |
| LCD-BHD6610-80-LNXXX | warm / Neutral / cool | 83/80/72 | 3000k / 4000K / 6500K | 12400 | 30°/60°/90°/110°/TYPE2/TYPE3/asymmetric 40° |
| LCD-BHD6610-100-LNXXX | warm / Neutral / cool | 83/80/72 | 3000k / 4000K / 6500K | 15500 | 30°/60°/90°/110°/TYPE2/TYPE3/asymmetric 40° |
| LCD-BHD6610-120-LNXXX | warm / Neutral / cool | 83/80/72 | 3000k / 4000K / 6500K | 19200 | 30°/60°/90°/110°/TYPE2/TYPE3/asymmetric 40° |
| LCD-BHD6610-150-LNXXX | warm / Neutral / cool | 83/80/72 | 3000k / 4000K / 6500K | 24000 | 30°/60°/90°/110°/TYPE2/TYPE3/asymmetric 40° |
| LCD-BHD6610-200-LNXXX | warm / Neutral / cool | 83/80/72 | 3000k / 4000K / 6500K | 32000 | 30°/60°/90°/110°/TYPE2/TYPE3/asymmetric 40° |
| LCD-BHD6610-250-LNXXX | warm / Neutral / cool | 83/80/72 | 3000k / 4000K / 6500K | 40000 | 30°/60°/90°/110°/TYPE2/TYPE3/asymmetric 40° |
| LCD-BHD6610-300-LNXXX | warm / Neutral / cool | 83/80/72 | 3000k / 4000K / 6500K | 48000 | 30°/60°/90°/110°/TYPE2/TYPE3/asymmetric 40° |
Characteristic details
Candela distribution
INSTALLATION METHOD

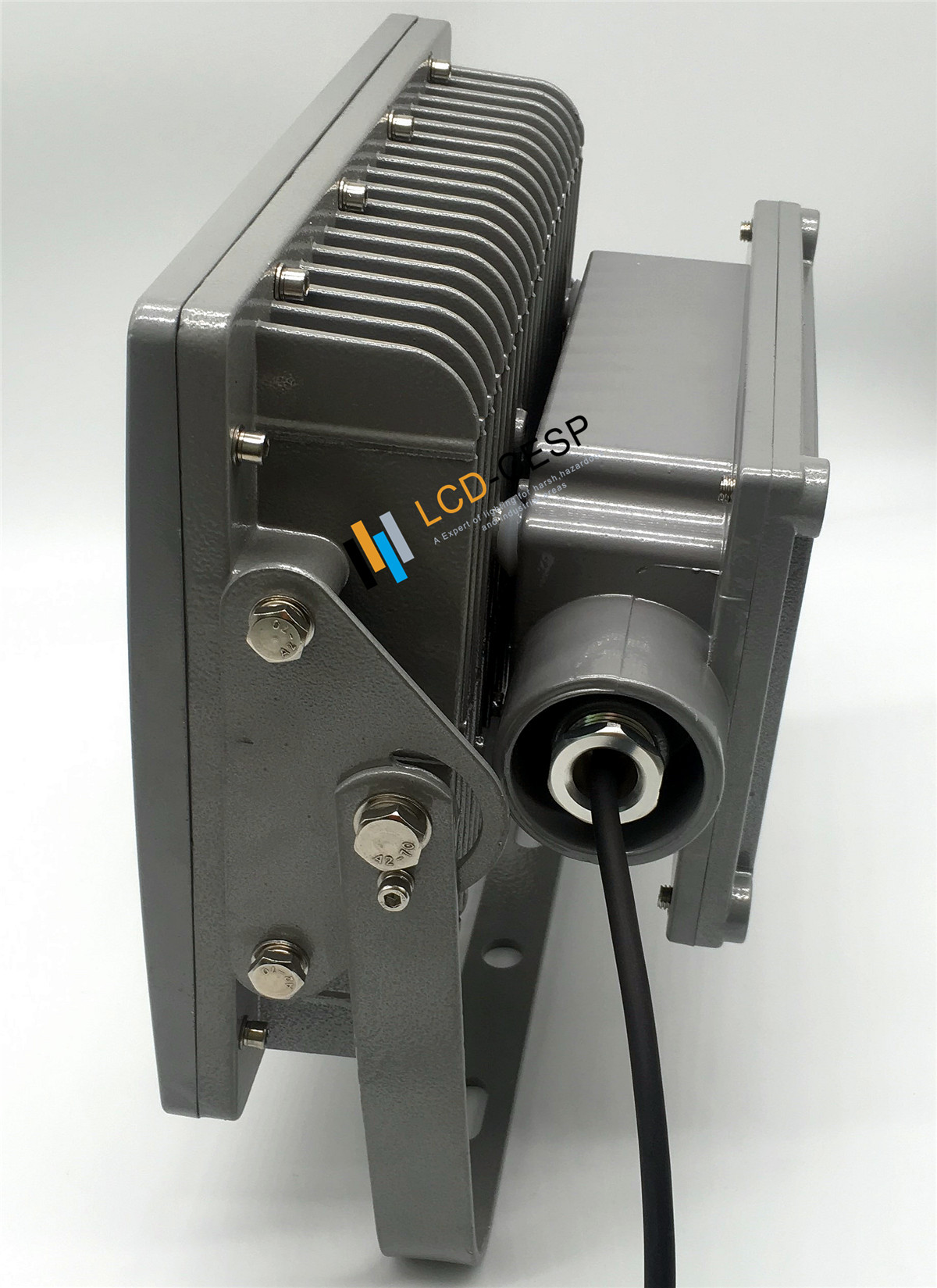

Product Photos
