Explosion proof drop light 100W Zone 1 Zone 21 220V 50/60Hz IP66
14000lm IK08
Zone 1 High Bay Light ATEX
GB High Bay Lights are designed for Zone 1 hazardous area
environments which require high performance, high reliability and
brilliant White-Light illumination. The High Bay Lights have been
designed to light up large and open areas and is supplied with an
integral dedicated bracket allowing the beam angle of light to be
tilted and easily targeted into the required space.
Standards
- ATEX / IECEx Zones 1, 21
- ATEX / IECEx Zones 2, 22
- CE, RoHS compliant
- UL844-Class 1, Division 2, Groups A, B, C, D
Ex Marks:
- II 2G Ex db op is IIC T4...5…T6 Gb
- II 2D Ex tb op is IIIC T103°C ... T98°C ... T93°C Db
Advantages
• High efficiency LED Source, 85% energy saving compared to traditional lightings.
• 60,000h lifetime, 50 times of incandescent bulbs, 8 times of
fluorescent lamps
• Dedicated temper glass enhance bigger lighting area, uniform
illumination
• Wide voltage range: AC100-277V type can operate within 90-305V
range
• Multi-protection: constant current with short-circuit and
overvoltage protection
• Material: copper-free Aluminum housing, surface with epoxy powder
coating, tempered glass and stainless steel external hardware
• Emergency function available
| Light Source and Photometric Parameters |
| Chip Brand | Brigelux |
| Light Emission | Direct |
| CCT | 3000K, 4000K, 5000K, 5700K |
| CRI | >70 |
| Asymmetric Light Distribution | 120x120° |
| Environmental |
| Ingress Rating | IP66 |
| Impact Resistance | IK09 - see data sheet |
| Ambient Usage Tolerance | -40° to 55°C |
| Ambient Humidity Tolerance | 0% to 90% RH |
| Ambient Storage Tolerance | -40° to 55°C |
| Electrical |
| Input Voltage | 100-277VAC |
| Input Frequency (VAC) | 50-60Hz |
| Power Factor | >0.98 |
| THD | <10% |
| Surge Protection | 4KV |
| Physical / Mechanical |
| Electrical Connection | Terminal Block |
| Inlet Thread | M25, G3/4", NPT3/4", M20 |
| Fixture Primary Materials | Aluminium Alloy |
| Fixture Finish | Powder Coated |
| Lens(es) Material | Tempered Glass |
Major functions and features
• die-cast Aluminum alloy body.ADC12
• Tempered glass clear lamp housing with the features of 5J energy
impact resistance and thermal shock resistance.
• Ex "d" structure design to offer more reliable explosion proof
quality.
• Independent Exe connection cavity to improve the safety
• Specialized corrosion resistance, vibration resistance and water
& dust proof design, both indoor and outdoor application in the
harsh conditions
• High duty LED light source to ensure long life operation and
superb energy saving.
• Constant current design to guarantee the operation stability.
MECHANICAL FEATURES
Features:
- Circle shaped beam
- Precision Component
- High efficiency lighting
- Excellent luminous flux
- Made of polycarbonate with special coating treatment with Marine
grade
- Self-extinguishing UL94 guaranteed
- Vibration resistant
- Innovative design
Body: Low copper content aluminium alloy fitted with cooling fins
for better heat dissipation
Glass face: Shock and temperature resistant tempered glass sealed
with aluminium ring
Supporting bracket: Galvanised steel or stainless steel #304
Gaskets: Acid, hydrocarbon and high temperature resistant silicone
Guard(optional) Electro-polished stainless steel
Bolts and screws: Stainless steel
Entries: M25 entries (Floodlight kit with plug and cable gland on
requests)
Coating: Polyester coating Light grey
The STANDARD of the Aluminum alloy used by LCD-CESP has passed the
tests required by standards EN60068-2-30 (hot/lhumid cycles) and
EN60068-2-11 (salt mist tests)
Specification
| Classification | Group II Category 2GD |
| Installation(EN60079-14) | Zone 1 - Zone 2 (Gas) & Zone 21 - Zone 22 (Dust) |
| standard | IEC60079-0,IEC60079-1, EN60079-0, EN60079-1, IEC60079-28/31 |
| Ex-mark | II 2G Ex db op is IIC T4...5…T6 Gb II 2D Ex tb op is IIIC T103°C
... T98°C ... T93°C Db |
| Rated Voltage | AC100-277V(•1) 50/60Hz |
| Housing TYPE | Φ460*243mm |
| Rated Wattage | 100W | 120W | 150W | 185W | 200W |
| Luminous FLUX | 14000lm | 16800lm | 21000lm | 25900lm | 28000lm |
| Color Temperature | 3000K, 4000K, 6500K |
| IP Grade | IP66 |
| Corrosion-proof Grade | WF2 |
| Ambient temperature | -40°C to +55°C (-40° F to 131° F) |
| Cable Entry | G3/4" or NPT 3/4" or M25x1 .5 |
| Terminals | wires<2.5mm² |
| Installation | Ceiling/pendant/bracket/wall/fence/flange |
| Remark | AC/DC 12V/24136V/48/110V are available Emergency type is available |

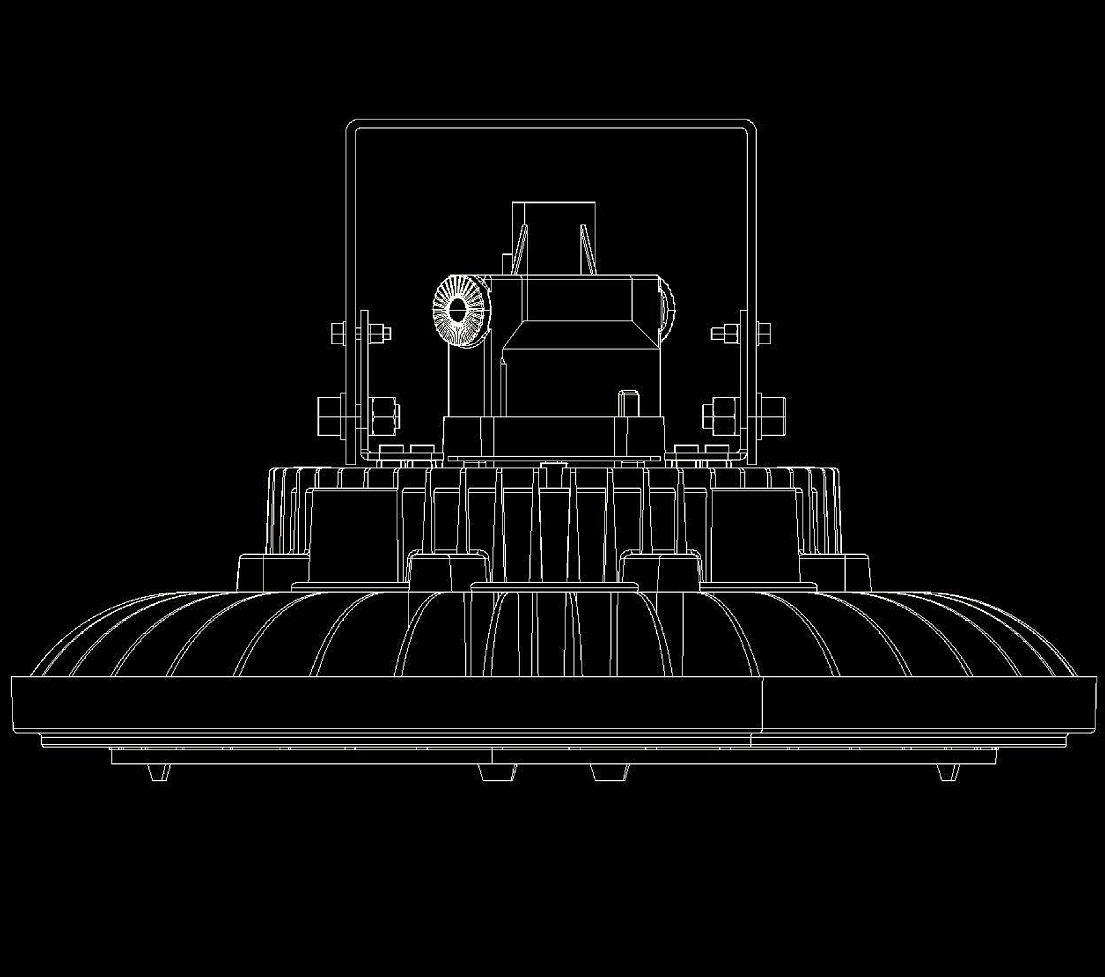

Dimension

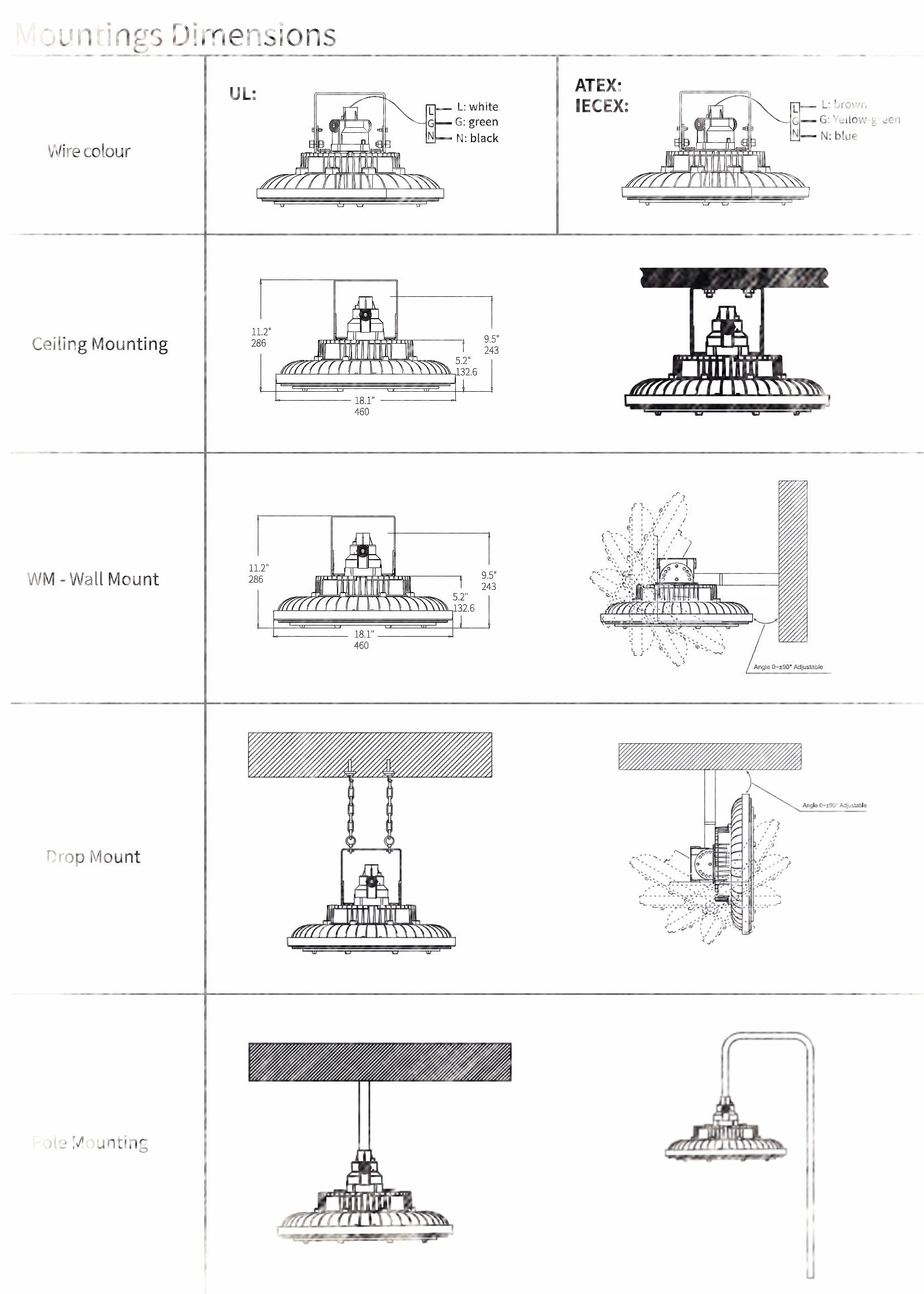

Mounting
