Hazardous Areas 220 Volt Explosion Proof Led Light Fixtures
Explosion proof light fixture 200W 220V 50Hz IP66 28000lm for
hazardous areas
Lion Explosion proof LED luminaire
- Zone 1, 2, 21, 22
- Mechanical strength
- Reliability over time
- Instant, bright illumination
LION LCD-CES-EX-GB series floodlights with LED technology combine
strongest, compact design, high performance in terms of
reliability,
safety, efficiency and energy saving. They are characterized by
LEDs with that strongest rugged enclosure "circle shaped design"
that permits
a light distribution and a perfectly uniform lighting in every
direction. This photometry makes them particularly
suitable for installation in the perimeter areas or wall in all
those areas defined as dangerous for the presence of gas,
explosive dust, such as Zone 1, 2, 21, 22. The with heat-sink
finned body of the floodlight acts as a heat sink for the LED
plate, allowing
the installation of greater light output without incurring the
deterioration of the LEDs. Due to their high luminous
output and to a white light with a colour rendering index greater
than 70, LION LCD-CES-EX-GB series floodlights are able to replace
the traditional rectangular floodlights that use discharge lamps
sodium vapour or metal halide, guaranteeing lighting
quality and visual comfort.
Application
LION LCD-CES-EX-GB series Ex LED Area light was designed specially
to offer the lighting system in a variety of Hazardous Area
applications
like oil & gas industry, chemical industry, marine and offshore
platform, both indoor and outdoor., Also applied to the hazardous
areas, ATEX Zones 1 & 21 and 2 & 22. Ex ⅡC and Ex ⅡB,
T1-T6.
Major functions and features
• die-cast Aluminum alloy body.ADC12
• Tempered glass clear lamp housing with the features of 5J energy
impact resistance and thermal shock resistance.
• Ex "d" structure design to offer more reliable explosion proof
quality.
• Independent Exe connection cavity to improve the safety
• Specialized corrosion resistance, vibration resistance and water
& dust proof design, both indoor and outdoor application in the
harsh conditions
• High duty LED light source to ensure long life operation and
superb energy saving.
• Constant current design to guarantee the operation stability.
MECHANICAL FEATURES
Features:
- Circle shaped beam
- Precision Component
- High efficiency lighting
- Excellent luminous flux
- Made of polycarbonate with special coating treatment with Marine
grade
- Self-extinguishing UL94 guaranteed
- Vibration resistant
- Innovative design
Body: Low copper content aluminium alloy fitted with cooling fins
for better heat dissipation
Glass face: Shock and temperature resistant tempered glass sealed
with aluminium ring
Supporting bracket: Galvanised steel or stainless steel #304
Gaskets: Acid, hydrocarbon and high temperature resistant silicone
Guard(optional) Electro-polished stainless steel
Bolts and screws: Stainless steel
Entries: M25 entries (Floodlight kit with plug and cable gland on
requests)
Coating: Polyester coating Light grey
The STANDARD of the Aluminum alloy used by LCD-CESP has passed the
tests required by standards EN60068-2-30 (hot/lhumid cycles) and
EN60068-2-11 (salt mist tests)
- Service life over 60,000 hours
- Over 75% less energy consumption comparing to HID
- Easy to install low maintenance costs
- Unique horizontal tri-chamber structure
- Excellent 120° illumination
- Emergency type available battery built-in
- Zone 1, 2, 21 22
• Energy-efficient: compared with conventional lighting, LED
consumes up to 85% less energy
• Long life: last to 60,000h rated life more than, 50 times of
incandescent bulbs, 8 times of fluorescent lamps
• high light efficiency: dedicated temper glass enhance bigger
lighting area, uniform illumination
• Horizontal tri-chamber structure, ensures LED heat will not
affect driver and wiring parts.
• Optimized heat sink: aluminum housing with air diversion
structure removes heat from the LEDs and driver to ensure longer
life span
• Excellent 120° illumination, meet high illumination demand
• Wide voltage range: AC100-277V type can operate within 90-305V
range
• Multi-protection: constant current with short-circuit and
overvoltage protection
• Good EMC: excellent electromagnetic compatibility and
anti-interference
• SMT technology: surface mounting technology keeps low working
temperature of LED chip
• Standard material: copper-free Aluminum housing, surface with
epoxy powder coating, tempered glass and stainless steel external
hardware
• Emergency type: 5/10/20/30W can be battery built-in, last to
60-120 min working after power cut
Specification
| Classification | Group II Category 2GD |
| Installation(EN60079-14) | Zone 1 - Zone 2 (Gas) & Zone 21 - Zone 22 (Dust) |
| standard | IEC60079-0,IEC60079-1, EN60079-0, EN60079-1, IEC60079-28/31 |
| Ex-mark | II 2G Ex db op is IIC T4...5…T6 Gb II 2D Ex tb op is IIIC T103°C
... T98°C ... T93°C Db |
| Rated Voltage | AC100-277V(•1) 50/60Hz |
| Housing TYPE | Φ460*243mm |
| Rated Wattage | 100W | 120W | 150W | 185W | 200W |
| Luminous FLUX | 14000lm | 16800lm | 21000lm | 25900lm | 28000lm |
| Color Temperature | 3000K, 4000K, 6500K |
| IP Grade | IP66 |
| Corrosion-proof Grade | WF2 |
| Ambient temperature | -40°C to +55°C (-40° F to 131° F) |
| Cable Entry | G3/4" or NPT 3/4" or M25x1 .5 |
| Terminals | wires<2.5mm² |
| Installation | Ceiling/pendant/bracket/wall/fence/flange |
| Remark | AC/DC 12V/24136V/48/110V are available Emergency type is available |

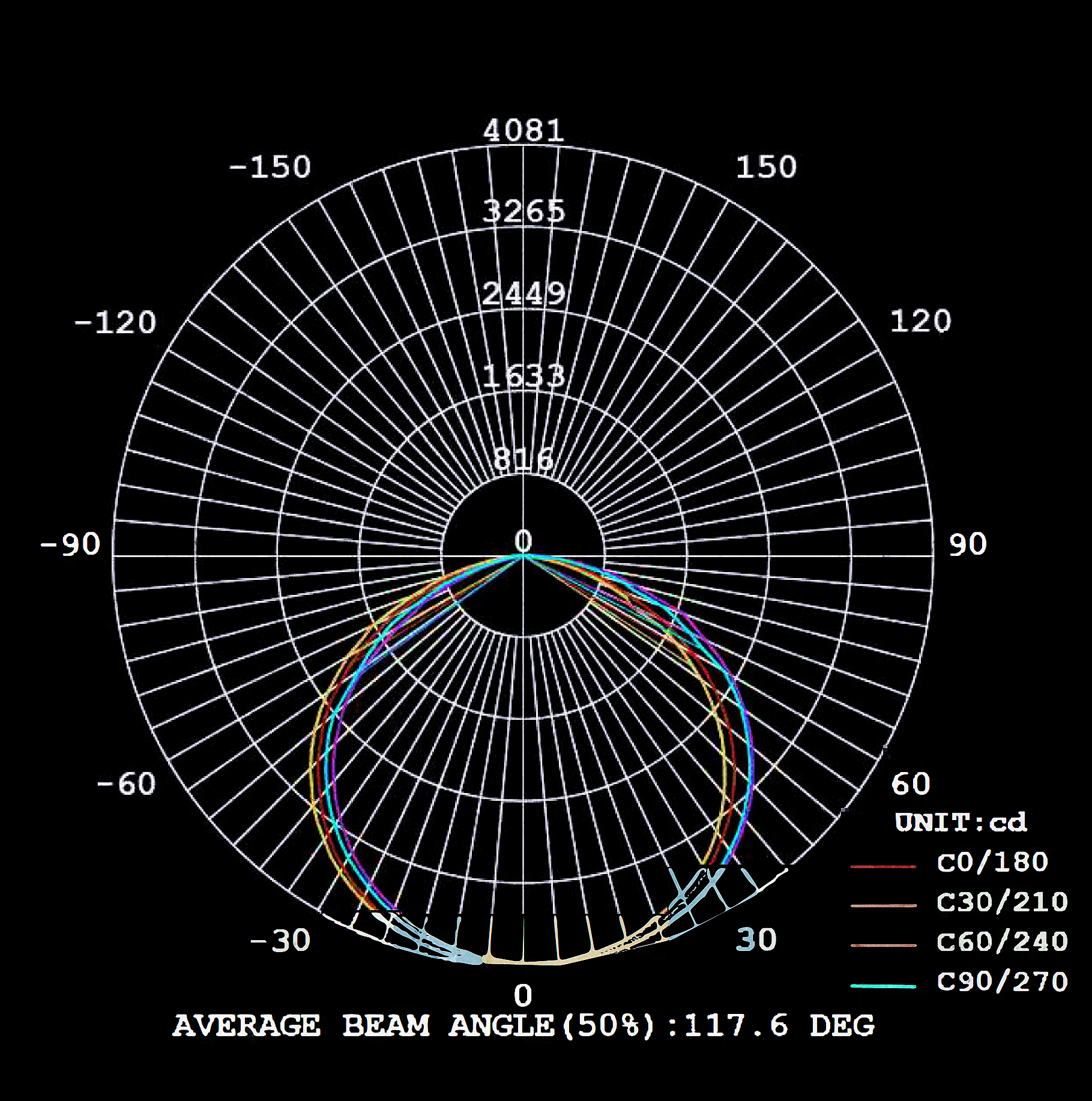

LIGHT DISTRIBUTION CURVE
Dimension
Mounting
