Energy Saving Cool White 6500K IP65 Industrial LED Flood Lights

Ask Lasest Price
Brand Name :	LCD-CESP brand
Model Number :	LCD-HYFSL-153
Certification :	CE RoHs SAA ETL UL TUV
Price :	usd
Payment Terms :	L/C, T/T, Western Union
Supply Ability :	5000 piece/ month
Delivery Time :	5-12 work day

Add to Cart

Product Details
Company Profile

Energy Saving Cool White 6500K IP65 Industrial LED Flood Lights

Energy Saving Cool White 6500K IP65 Industrial LED Flood Lights

Industrial led flood lights 150 240VAC 50/60Hz 6500K IP65 IK09 5years warranty

Introduction

The energy-saving LCD Lynx FS LED Floodlight is the perfect solution for a wide range of Area & site lighting applications. It teams with the LED light source, optical system, known to perfect thermal management heat sink housing and Phillips driver into one compact and robust and durable die cast Aluminum alloy body that matches up globally high quality and safety standards. Its specially designed heat sink incorporates aesthetics and functionality to ensure excellent reliability and a long lifespan. Powered by new and modern LED technology, this luminance delivers superior performance and a longer lifetime, bringing area & site lighting to a whole new level.

**General Information**
Lamp family code	LCD-HYFSL-xxxx-LNxxx
Light source color	warm white, Neutral white, cool white
Light source replaceable	yes
Driver/power unit/transformer	Philips driver / Meanwell driver / LCD brand driver
Driver included	yes
Optical cover/lens type	Polycarbonate micro lens optic
Luminaire light beam spread	90ºx90° or 60ºx60º
Connection	Flying leads/wires
Cable	Cable 1.5 m without plug
Protection class IEC	Safety class I
CE mark	yes
Warranty period	5 years warranty
Optic type outdoor	Symmetrical wide beam
EU RoHS compliant	No
Light source engine type	SMD 3030

**Operating and Electrical**
Input Voltage	220-240 VAC or 110-277VAC
Input Frequency	50 or 60 Hz
Power Factor (Min)	0.95
Controls and Dimming	on requests

**Mechanical and Housing**
Housing Material	Aluminum Alloy ADC12 die cast
Reflector material	-----
Optic material	Polycarbonate
Optical cover/lens material	Polycarbonate
Fixation material	Carbon steel with corrosion proof powder coating
Mounting device	Mounting bracket adjustable
Optical cover/lens shape	-----
Optical cover/lens finish	transparent or Frosted
Overall length	504 mm
Overall width	86 mm
Overall height	350 mm
Effective projected area	0.12m²
Color	Aluminum and gray

**Approval and Application**
Ingress protection code	IP66 [ Dust penetration-protected, jet-proof]
Mech. impact protection code	IK09 [ >5 J vandal-protected]
Surge Protection (Common/Differential)	Luminaire surge protection level until 3 kV

**Initial Performance (IEC Compliant)**
Initial luminous flux (system flux)	9100 lm
Luminous flux tolerance	+/-10%
Initial LED luminaire efficacy	130 lm/W
Init. Corr. Color Temperature	3000K / 4000K / 6500K
Init. Color Rendering Index	75
Initial chromaticity	SDCM<=5
Initial input power	70 W
Power consumption tolerance	+/-10%

**Application Conditions / Product Data**
Ambient temperature range	-30 to +50 °C
Maximum dim level	on requests
Full product code	LCD-HYFSL-073-LNXX-4K
Order product name	LCD-LynxFS-Flood light 70W
Order code	N
Numerator - Quantity Per Pack	1 pcs
Numerator - Packs per outer box	1 box
Material Nr. (12NC)	N
Net Weight (Piece)	5.5KG

Dimensional drawing

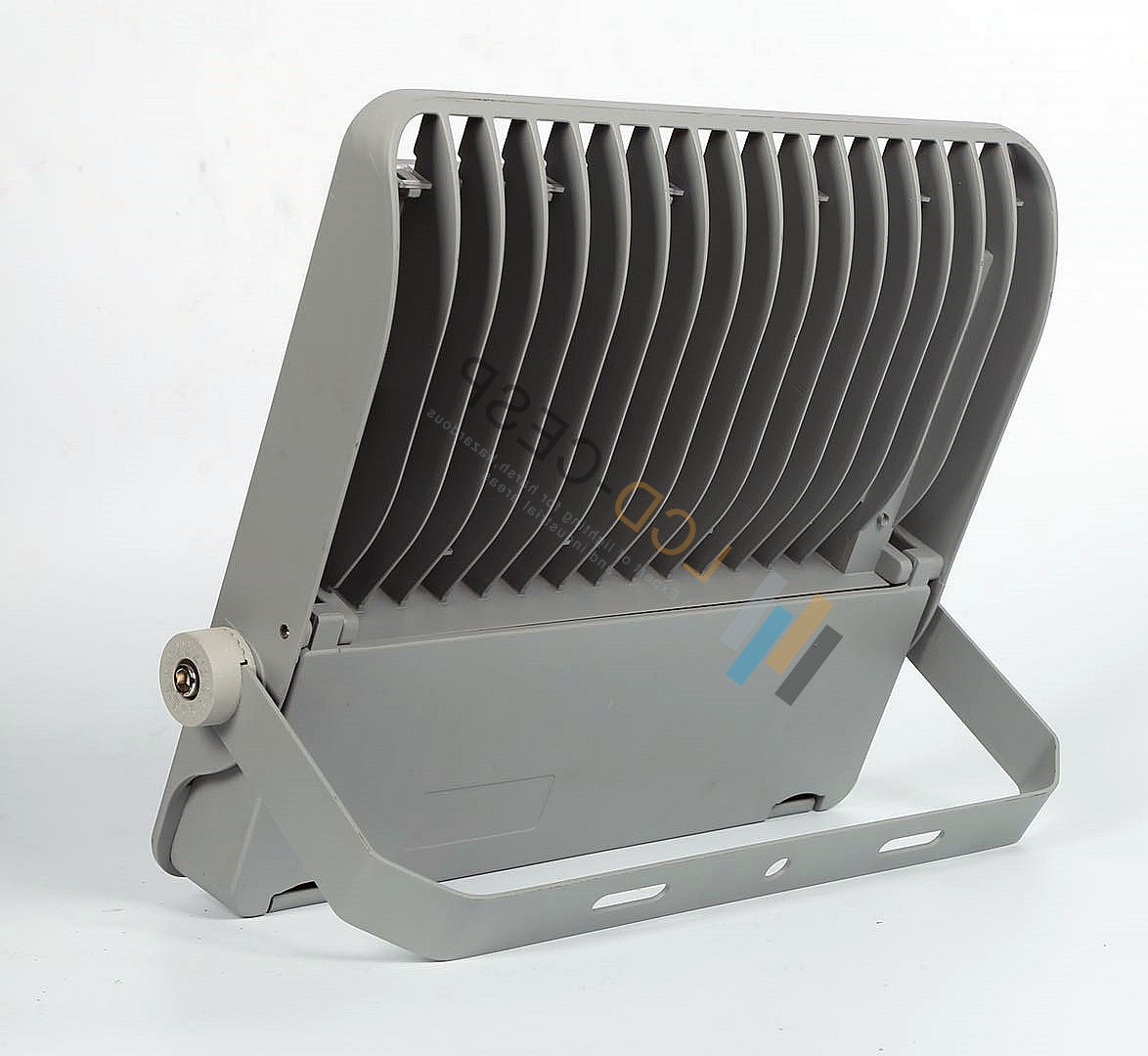

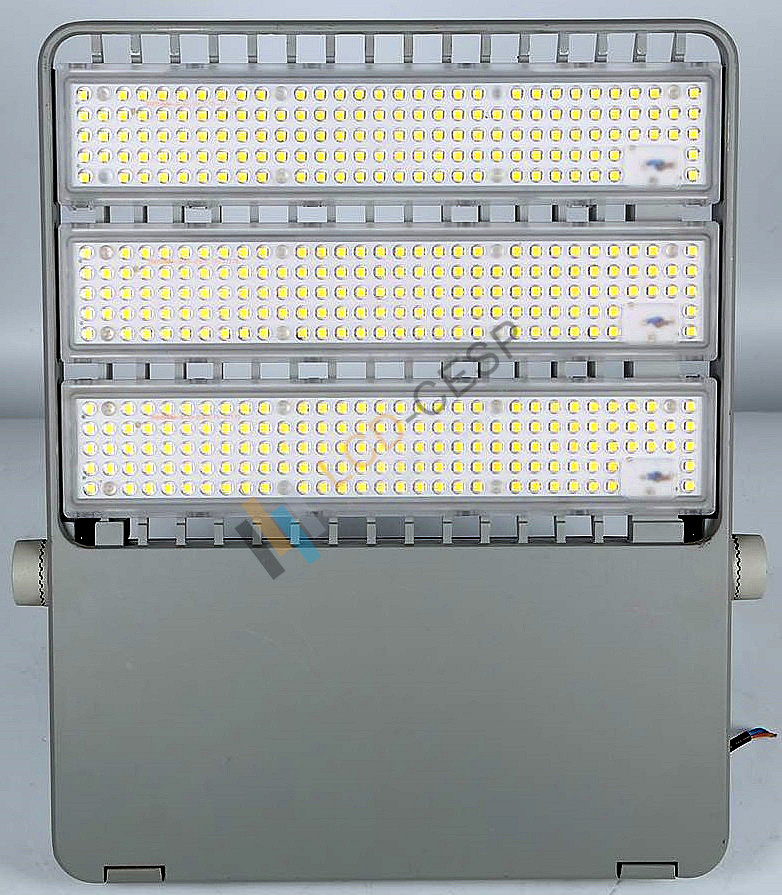

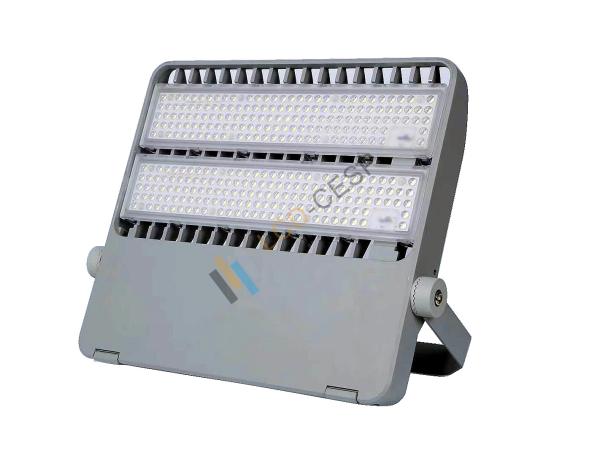

Product Photos
