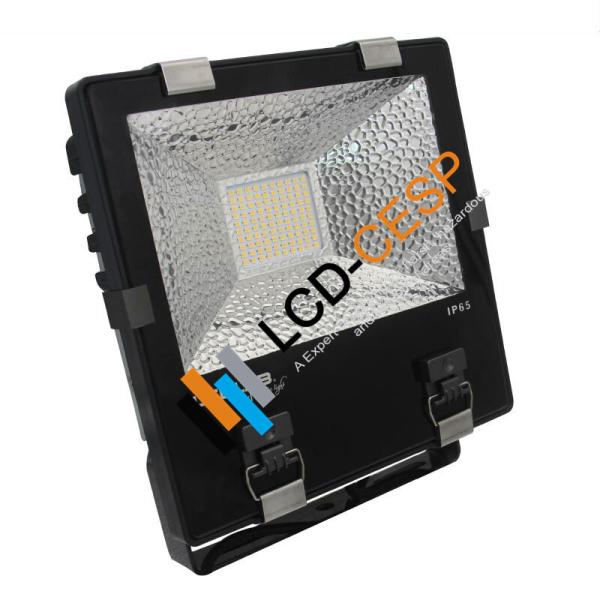

High Lumen 65000hrs IP65 100 Watt LED Industrial Floodlight
LED lifespan 65000hrs 100-277VAC Options IP65 100W Industrial LED
Flood Light
Parameters for LCD-FT-103:
Input voltage: AC85-265V
Output Power: 100W
Material: PC & Aluminum, Tempered glass Lens covered with
waterproof material
Luminous: 10000-14000LM
LED Chip: Bridgelux
Frame color: Aluminum/Black
Beam Angle: 120 Degree
LED Driver: Meanwell HLG-100H Driver
Color Temperature:
Warm White: 2800-3200K;
Natural White 4000-4500K;
Cold White: 5500-6000K;
Lifetime: Over 50,000 hours
Ambient temperature: -20℃~45℃
Surface temperature: 42℃~45℃
Net weight: 7.5kg
Dimmable: yes
Certification: CE, ROHS
Features And Applications:
| Feature for LCD-FT-103 |
1. Wide input voltage (AC85-265V), High switch-on/off, short time
for pulse-on.
|
2. 120 degree View Angle optional.
|
2. 100% environment friendly, no UV and mercury, be comply with
ROHS.
|
3. Super energy saving, 80% energy saving compare with traditional
light, 100watt can replace 400W HPS lamp.
|
4. Use high brightness Bridgelux SMD chip and adopt radiation heat
dissipation method to ensure LED efficiency, long lifespan
>50000Hrs, we have confidence to provide you 5 years warranty.
|
5. Using 5 years warranty Meanwell HLG-100H driver, have
overvoltage surge, short circuit, overload protection function,
safety, reliable, these ensure LED light source on stable working.
|
6. No flicker, no glare even switch-on/off frequently. High CRI is
good for anti-seismic, nice appearance, easy for installation and
transportation.
|
| Application for LCD-FT-103 |
LCD-FT-103 are mainly used in highways, railway tunnels, bridges,
squares, stadiums, parking lots, building walls, etc.
|
Technical data
| Model | Power(W) | Current(A@230VAC) | IP-protection | Dimensions(mm) | Weight(KG) |
| LCD-FT-013 | 10 | 0.045 | IP65 / IK08 | 185x135x68 | 0.75 |
| LCD-FT-023 | 20 | 0.091 | IP65 / IK08 | 185x135x68 | 0.85 |
| LCD-FT-033 | 30 | 0.137 | IP65 / IK08 | 220x180x88 | 1.30 |
| LCD-FT-053 | 50 | 0.228 | IP65 / IK08 | 220x180x88 | 1.50 |
| LCD-FT-073 | 70 | 0.320 | IP65 / IK08 | 260x195x105 | 1.80 |
| LCD-FT-103 | 100 | 0.460 | IP65 / IK08 | 305x250x125 | 4.80 |
| LCD-FT-123 | 120 | 0.550 | IP65 / IK08 | 305x250x125 | 5.00 |
| LCD-FT-153 | 150 | 0.690 | IP65 / IK08 | 305x250x125 | 5.30 |
| LCD-FT-203 | 200 | 0.910 | IP65 / IK08 | 400x360x140 | 8.10 |
| illumination distribution |  |
| Product dimension |  |
installation
1. Carefully take the product out of the packaging removing any
transport safeguards.
2. The product is solely suited for installation on the wall,
ceiling and floor.
3. This product must be installed by a preofessional electrician.
4. Please make sure that the thermal management can work without
problem. Take a look at picture below.
5. Fasten the fixture to the installation place using properly
dimensioned fastening materials.
6. Connect the floodlight with a power source.
7. Check if the product functions properly and if it is securely
fixed
8. The product is now ready for operation.
| Wall mounted | Surface mounted | Ceiling mounted |
 |  |  |
III. warning
The installation should only be done by a professional electrician!
Warranty for this product is 5 years.
The warranty expires by abnormal usage, connection or change of the
structure. Damage by high voltage is not covered by the warranty:
>4kV(L,N to PE) / 2kV(L to N)
For more technical information, please contact our customer
support!
Product exploded view

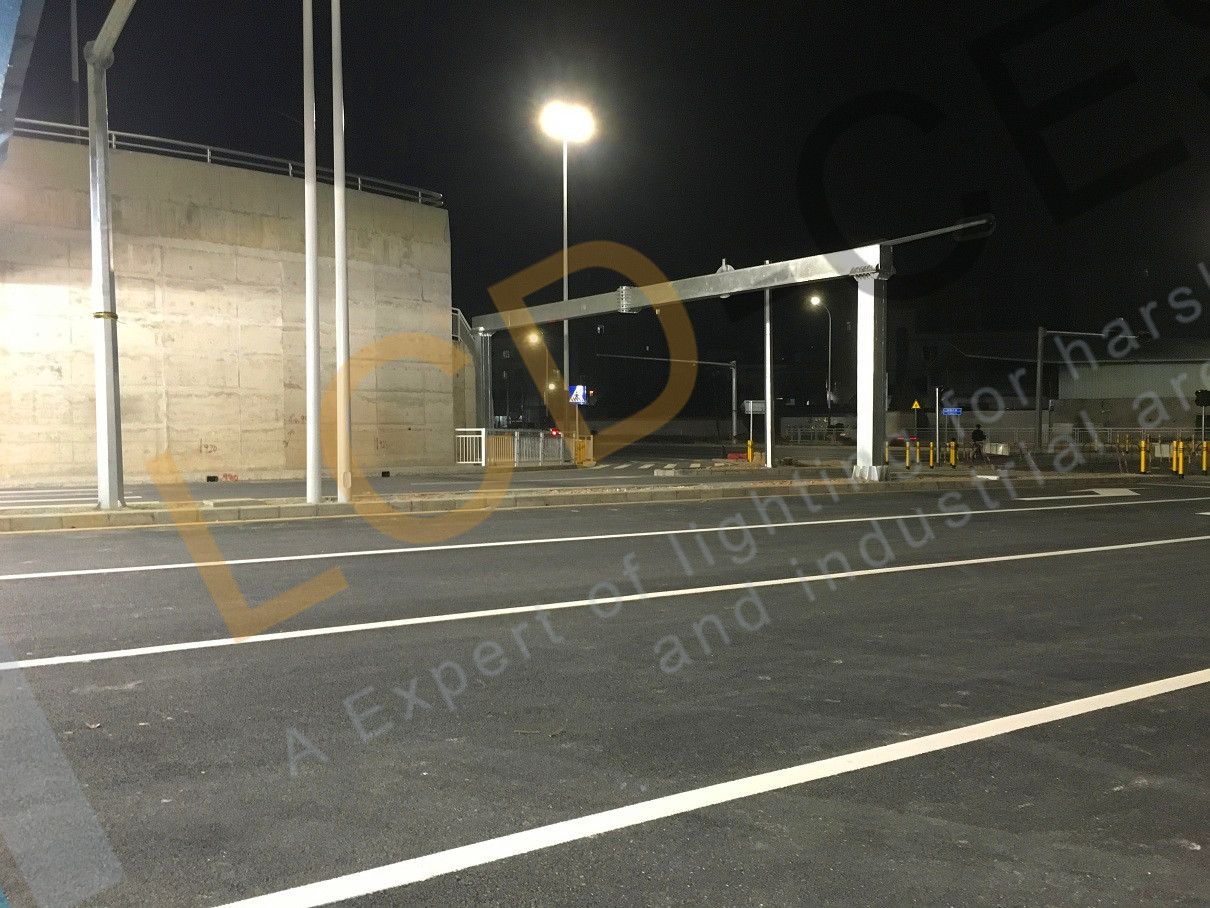

Application
