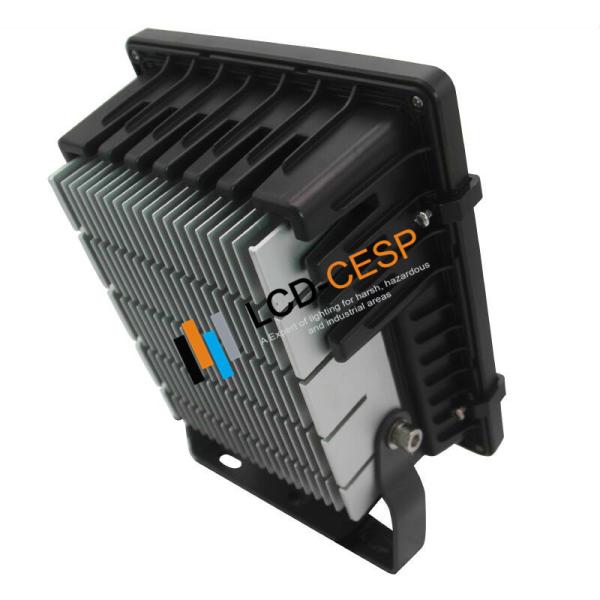

9450lm Waterproof IP65 IK08 70W Industrial LED Flood Lights
Luminaire flux 9450lm 4000K 70W Industrial LED Flood Light for
security lighting
Features and Parameters for LCD-FT-073:
- High power led Floodlight 70W general to replacing 200W Metal
Halide Lamp.
- We adopt high power Bridgelux SMD chip and MW brand led driver
ensure the top quality what we committed to do. The first-class
quality and Flood light high working performance win more good
reputation from all of the world customers.
| Power | 70 Watt |
| Voltage | AC85-265V |
| Dimension | 360*290*220mm |
| Lumen | 100Lm/W |
| Color Rendering Index | Ra>75 |
| Color Temperature: | WW/NW/CW |
| LED Chip | Bridgelux |
| LED Driver | MW HLG Driver |
| Power Factor | PF>0.95 |
| IP Grade | IP65 |
| Frame Color | Black |
| Ambient Temperature | -20℃~45℃ |
| Surface Temperature | 42℃~45℃ |
| Net Weight | 6.8kg |
- Fine aluminum lamp body; Baking finish & anti cathode oxidation
treatment; Never fades and drops.
- IP65, work perfectly in the high humidity environment and other
rugged outdoor environment.
- Adopt the Meanwell driver as an constant current power driver.
- Temperature resistance, high intensity and stable chemical
properties, insulated and safety.
- Maintenance free, easy to install, low power consumption, high
intensity.
Applications:
It was widely used in highway, railway, tunnel and other
underground tunnel lighting, workshop, large warehouses, venue and
all kinds of manufacturing, engineering, construction and other
places large area flood lighting, also can be used in the urban
landscape, billboards, such as building night scape lighting.
Technical data
| Model | Power(W) | Current(A@230VAC) | IP-protection | Dimensions(mm) | Weight(KG) |
| LCD-FT-013 | 10 | 0.045 | IP65 / IK08 | 185x135x68 | 0.75 |
| LCD-FT-023 | 20 | 0.091 | IP65 / IK08 | 185x135x68 | 0.85 |
| LCD-FT-033 | 30 | 0.137 | IP65 / IK08 | 220x180x88 | 1.30 |
| LCD-FT-053 | 50 | 0.228 | IP65 / IK08 | 220x180x88 | 1.50 |
| LCD-FT-073 | 70 | 0.320 | IP65 / IK08 | 260x195x105 | 1.80 |
| LCD-FT-103 | 100 | 0.460 | IP65 / IK08 | 305x250x125 | 4.80 |
| LCD-FT-123 | 120 | 0.550 | IP65 / IK08 | 305x250x125 | 5.00 |
| LCD-FT-153 | 150 | 0.690 | IP65 / IK08 | 305x250x125 | 5.30 |
| LCD-FT-203 | 200 | 0.910 | IP65 / IK08 | 400x360x140 | 8.10 |
| illumination distribution |  |
| Product dimension |  |
installation
1. Carefully take the product out of the packaging removing any
transport safeguards.
2. The product is solely suited for installation on the wall,
ceiling and floor.
3. This product must be installed by a preofessional electrician.
4. Please make sure that the thermal management can work without
problem. Take a look at picture below.
5. Fasten the fixture to the installation place using properly
dimensioned fastening materials.
6. Connect the floodlight with a power source.
7. Check if the product functions properly and if it is securely
fixed
8. The product is now ready for operation.
| Wall mounted | Surface mounted | Ceiling mounted |
 |  |  |
III. warning
The installation should only be done by a professional electrician!
Warranty for this product is 5 years.
The warranty expires by abnormal usage, connection or change of the
structure. Damage by high voltage is not covered by the warranty:
>4kV(L,N to PE) / 2kV(L to N)
For more technical information, please contact our customer
support!
Product exploded view
