IP66 LED Security Flood Light

Outdoor led security flood lights 150W 110VAC 50/60Hz optic beam 15 degree IP66

The most efficient & versatile industrial LED Area Lighting system on the market!

We stand behind our industry leading warranties with proven real-world results in the world’s most challenging environments and extensive
quality control testing. Additionally, whilst some other manufacturers may require a minimum threshold of 10% or more of LED components
to fail in order for a product to be defective, we do not require this because the safety and productivity of your work site is of paramount
importance to us.

150W FK Floodlight

Details:

• 5-10 year warranty
• Up to 170 lm/W
• 100-277V AC, 50-60 Hz / 120-250V DC power supply
• 1,700 - 51,000 lumens
• Indoor, outdoor and harsh areas
• Easy installation retro-fit options available
• 8 optical patterns: 7° 15° 30° 60° 90° 120°, asymmetric 40°, wide (oval) TYPE 3 / 4 / 5.
• >70 CRI
• CCT: 6500K, 4000K & 3000K
• 0-10V dimming down to 5%
• Ideal for 10’ (3m) to > 60’ (20m) mounting heights

CAUTION

RISK OF PRODUCT DAMAGE

• Never connect luminaires and/or components under load with supply voltage turned on.
• Do not mount or support these luminaires in a manner that can cut the outer jacket or damage wire insulation.
• Do not restrict fixture ventilation. Allow for some volume of airspace around luminaire. Avoid covering luminaire with insulation, foam or other material that will prevent convection or conduction cooling.
• Do not exceed luminaire maximum ambient temperature.
• Do not modify the luminaire.
• Only use luminaire in its intended application and location.
• Led products are polarity sensitive. Ensure proper polarity before installation.
• Electrostatic Discharge (ESD) can damage LED. Personal grounding equipment must be worn during all installation and servicing of the luminaire.
• Do not touch individual electrical components as this can cause ESD, shorten LED life, or impact LED performance.
• Always read the luminaires complete installation instructions prior to installation for any additional luminaire specifific warnings.
• In the case of HID or Fluorescent luminaires, regular re‐lamping is required to keep luminaire operating within safe limits
• Do not install damaged product. Handling and installing damaged products can potentially increase the risks mentioned In case of damage and/or missing parts upon arrival of the luminaire, please contact us.
• These instructions do not purport to cover all details or variations in equipment nor to provide every possible contingency to meet in connection with instal‐lation, operation or maintenance.
• Please see luminaire specifific Installation and Maintenance Instruction for additional warnings or any applicable LCD or regulatory statements. Failure to follow any of these Instructions could void luminaires warranties.

Luminaire Maintenance

• Regular luminaire maintenance programs are recommended.
• It is recommended to clean the outside of the luminaire and the refractor/lens.
• Frequency of cleaning will depend on ambient dirt level and minimum light output which is acceptable to user.
• If clean water is not sufficient for cleaning, use a neutral, synthetic, not‐scratching and not‐abrasive cleaning substance.
• Never use alkaline and/or acetous cleaning substances.
• Make sure that the cleaning substance is carefully removed by rinsing with lots of clean water.
• LCD recommends using a cleaning solution that has a PH between 5 and 8.

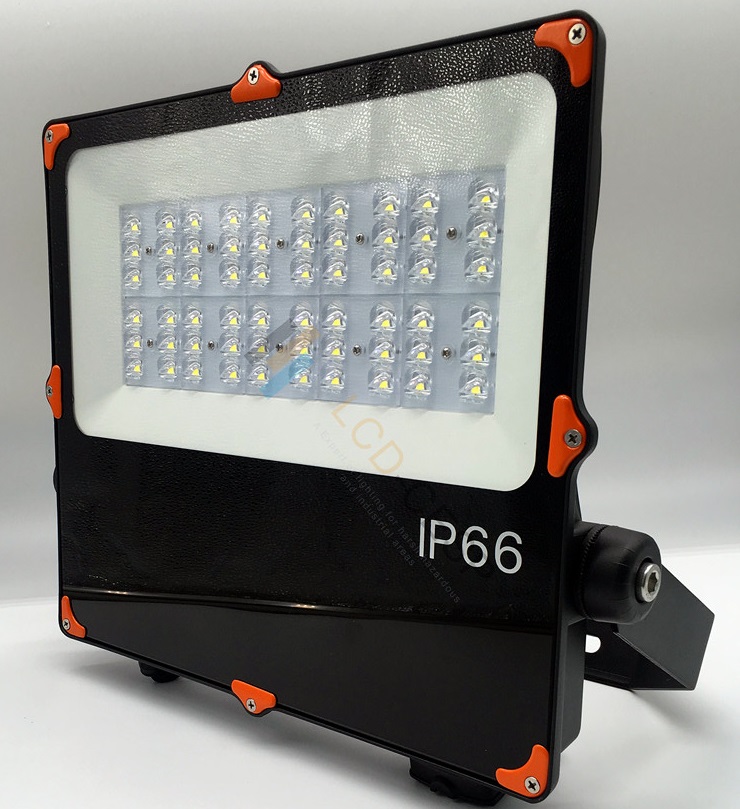

Product Photos:

LCD-CESP is the leading innovator in Lighting design.

We strive to offer the best service to our customers

Our lighting products are market leaders and have many unique features.

We offer a minimum of 5 years warranty.

Most of all Customer satisfaction is our priority.

Our R+D team have many years in the lighting Industry and we offer the following skills to our customers-

Mechanical design

Electronic design

Optic testing

We are sourcing components to the highest specification.

Our manufacturing and assembly processes are to ISO 9001 and ISO 1400 requirements.

We offer customisation and design services.
