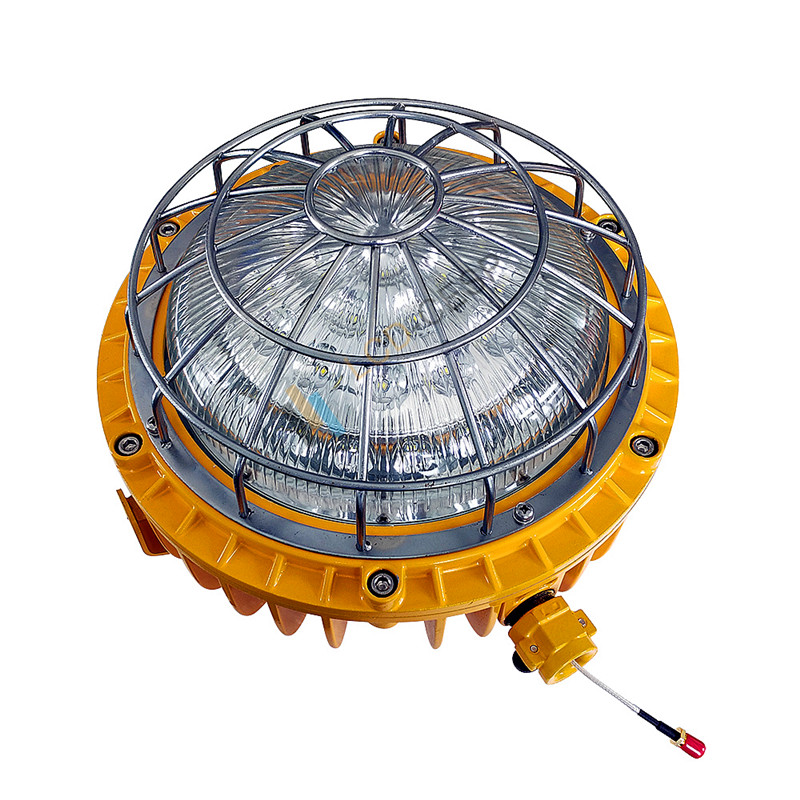

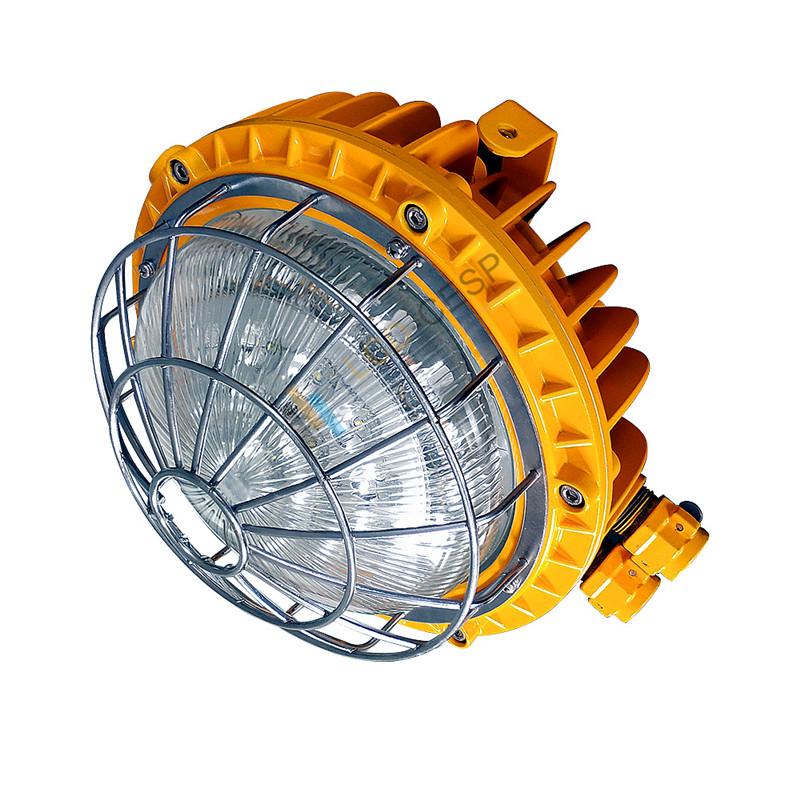

LCD-DGS8610-XXXX Series LED Explosion-Proof Lighting
Descriptions
- Service life over 60,000 hours
- Over 50% less energy consumption comparing to HID
- Easy to install low maintenance costs
- Unique horizontal tri-chamber structure
- Excellent 130° illumination
- Emergency type available battery built-in
- Zone 1, 2, 21 22
| Product Name | Floodlight |
| Watt | 100W |
| Volt | 240v |
| Lumen (lm) | 12000 |
| Efficiency | 120lm/w |
| Color Temperature | 5000K |
| CRI (Ra) | >75 |
| IP Rating | IP65 |
| LED Chip | SMD3030 |
| Driver | Meanwell |
| Lifespan | >50,000hr |
| Housing Material | Aluminum |
| Operating Temperature | -30°C~ 50°C |
| Beam Angle | 65°/ 90°/ 120° |
| Warranty | 5 years |
| Replace | 250W MHL |
Features and benefits
• Energy-efficient: compared with conventional lighting, LED
consumes up to 85% less energy.
• Long life: last to 60,000h rated life o more, 50 times of
incandescent bulbs, 8 times of fluorescent lamps.
• High light efficiency: dedicated honeycomb mirror enhance bigger
lighting area, uniform illumination.
• Horizontal tri-chamber constructure, ensures LED heat will not
affect driver and wiring parts.
• Optimized heat sink: aluminum housing with air diversion
structure removes heat from the LEDs and driver to ensue longer
life.
• Excellent 180° illumination, meet high illumination demand.
• Wide voltage range: AC220V type can operate within 90-260V range.
• Multi-protection: constant current with short-circuit and
overvoltage protection.
• Good EMC: excellent electromagnetic compatibility and
anti-interference.
• SMT technology: surface mounting technology keeps low working
temperature of LED chip.
Application
Ideal for environments with flammable gases, mists, vapors or
dusts.

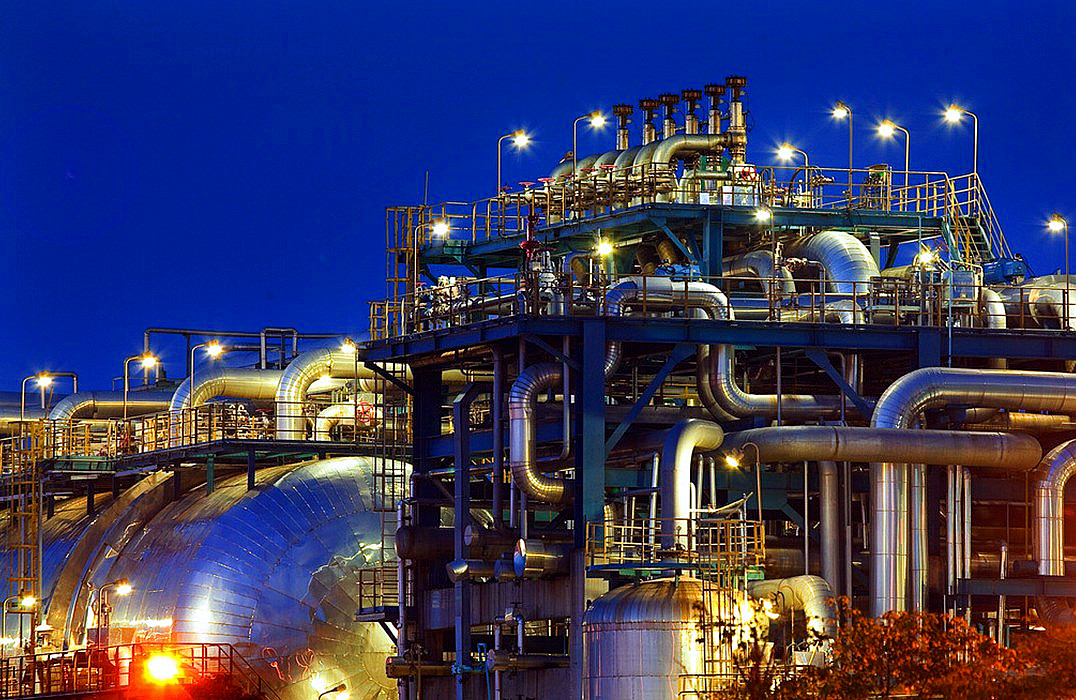

• Petrochemical plants
• Chemical plants
• Pharmaceutical Factories
Gas explosive zone enviroment:
Class 1, Zone 1, Zone 2, Zone 21, Zone 22
Executive standard
· IEC 60079-0:2007
· IEC 60079-15:2010
· IEC 60079-31:2008
· EN 60079-0:2011
· EN 60079-15:2010
· EN 60079-31:2009
· EN 60598-1:2008+A11:2009
· EN 55015:2013
· IEC 62321:2008
Division
·ATEX Zone 1 & 2 & 21 & 22
·Class I Divison 2 Groups A, B, C, D
·Class II Divison 2 Groups F,G
·Class III Divison 2
Certifications & Ratings
·II 2G Ex db IIA T5 Gb
·II2D Ex tb IIIC T(Max 90ºC)Db
·ATEX Compliant
·ABS Compliant
·CE Compliant
·RoHS Compliant
·IP 65 Rated
Characteristic details
Performance patameter
| Product type | Rated input voltage | Rated input current | Voltage frequency | Rated power | LED input current | PF | THD |
| LCD-DGS8610-60-LNXXX | 90~264VAC | 1~0.21 | 50/60Hz | 60W | 600mA | >0.95 | <15% |
| LCD-DGS8610-70-LNXXX | 90~264VAC | 1~0.32 | 50/60Hz | 70W | 600mA | >0.95 | <15% |
| LCD-DGS8610-80-LNXXX | 90~264VAC | 1.1~0.37 | 50/60Hz | 80W | 600mA | >0.95 | <15% |
| LCD-DGS8610-90-LNXXX | 90~264VAC | 1.4~0.45 | 50/60Hz | 90W | 600mA | >0.95 | <15% |
| LCD-DGS8610-100-LNXXX | 90~264VAC | 1.65~0.5 | 50/60Hz | 100W | 600mA | >0.95 | <15% |
Photometric parameters
| Optical data |
| Product type | Color temp. | CRI | CCT(K) | luminous flux(lm) | Beam angle(°) |
| LCD-DGS8610-60-LNXXX | warm / Neutral / cool | 83/80/72 | 3000k / 4000K / 6500K | 5700 | 130° |
| LCD-DGS8610-70-LNXXX | warm / Neutral / cool | 83/80/72 | 3000k / 4000K / 6500K | 6650 | 130° |
| LCD-DGS8610-80-LNXXX | warm / Neutral / cool | 83/80/72 | 3000k / 4000K / 6500K | 7600 | 130° |
| LCD-DGS8610-90-LNXXX | warm / Neutral / cool | 83/80/72 | 3000k / 4000K / 6500K | 8550 | 130° |
| LCD-DGS8610-100-LNXXX | warm / Neutral / cool | 83/80/72 | 3000k / 4000K / 6500K | 9500 | 130° |
General information
| Product type | Size (mm) | Weight(kg) | Ambient temp.(ºC) | Max.surface temp. ( test in 25ºC) | Temp.classification | IP code | Insulation | IK code |
| LCD-DGS8610-60-LNXXX | ¢278x210mm | 8KG | - 30ºC~+ 50ºC | 43 | T5 | IP65 | I | IK08 |
| LCD-DGS8610-70-LNXXX | ¢278x210mm | 8KG | - 30ºC~+ 50ºC | 44 | T5 | IP65 | I | IK08 |
| LCD-DGS8610-80-LNXXX | ¢278x210mm | 8KG | - 30ºC~+ 50ºC | 46 | T5 | IP65 | I | IK08 |
| LCD-DGS8610-90-LNXXX | ¢278x210mm | 8KG | - 30ºC~+ 50ºC | 47 | T5 | IP65 | I | IK08 |
| LCD-DGS8610-100-LNXXX | ¢278x210mm | 8KG | - 30ºC~+ 50ºC | 47 | T5 | IP65 | I | IK08 |
