    Stanchion Mount 220V 60W Linear Explosion Proof Led Lamp

    Ask Lasest Price
    Brand Name : LCD-CESP brand
    Model Number : LCD-CES-EX-LN-01-60XXXX
    Certification : CE RoHs SAA ETL UL ATEX IECEx UL844
    Price : usd
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 5000 piece/ month
    Delivery Time : 5-12 work day
    • Product Details
    • Company Profile

    Stanchion Mount 220V 60W Linear Explosion Proof Led Lamp

    Stanchion Mount 220V 60W Linear Explosion Proof Led Lamp

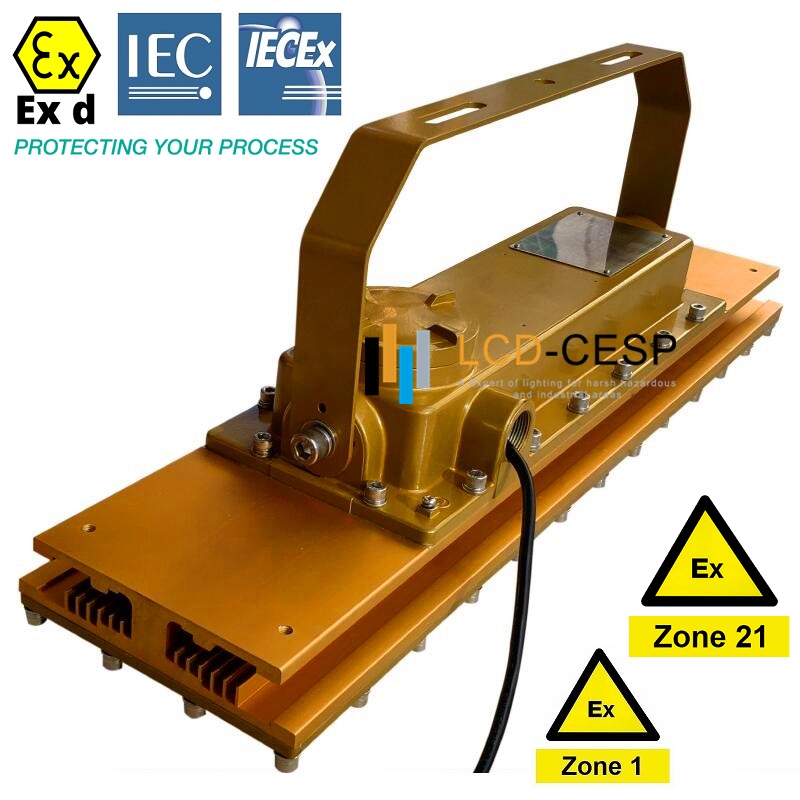

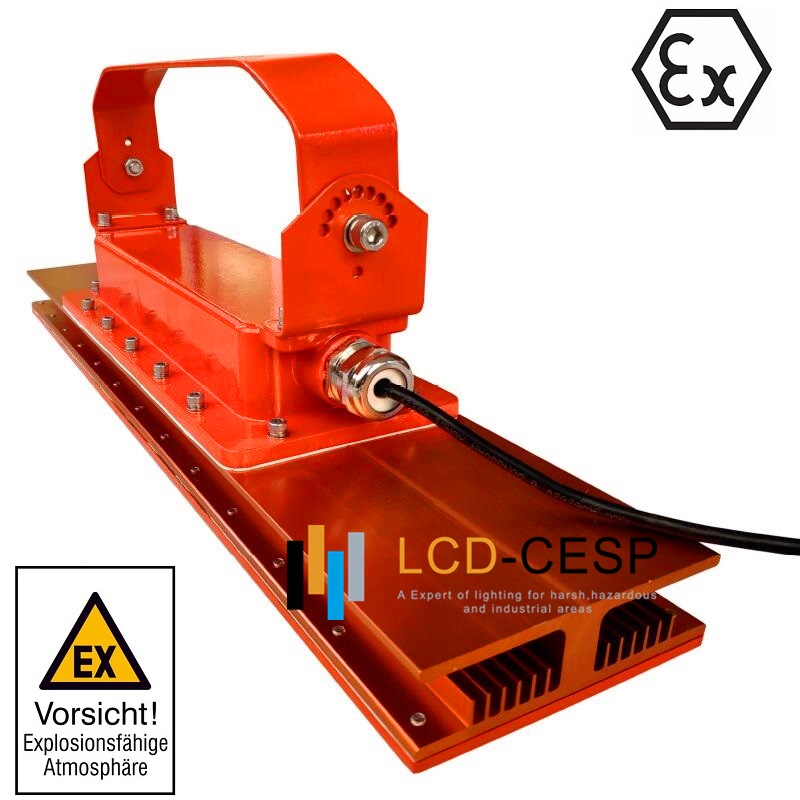

    Explosion proof led lamp 60W, stanchion mount, 220VAC, 50/60Hz, 6500lm, IP67


    • PRODUCT SPECIFICATIONS
    Product nameExplosion proof Luminare
    Light TypeLinear light
    Dimension0.6m / 1.2m
    • Technical Characteristic
    Power50W60W80W100W
    Color temperature2700-7000K
    CRI>80
    Lumen5000lm6000lm8000lm10000lm
    Viewing Angle110/120 Degree
    Cover TypeClear
    Input VoltageAC85-265V 50/60Hz
    PFC>90%
    Waterproof RatingIP66
    • MATERIALS
    LED BrandBridgelux
    LED TypeSMD3030
    HousingAluminum
    Housing colorGrey
    CoverPC
    • OTHERS
    Operating Temperature-40ºC To +50ºC
    Operating Humidity20%-90% RH
    Storage Temperature-40ºC To 80ºC
    Storage Humidity10%-95%
    ApplicationIndoor/Outdoor
    Enviroment ProtectionRoHS
    Safety CertificationATEX, IECEx
    Warranty Time5 Years

    Features:
    1. Usage imported chips 3030smd as the source of light, with a unique lighting design made of multiple chips integrated in a single module. Based on a selection of excellent imported semiconductor chips, it has high thermal conductivity, low luminous decay, pure colors, no heavy shade etc.

    2. Unique cooling body design combined with perfect driver box to help heat conduction and diffusion, this reduces efficiently the temperature of the lamp body and so provides to the LED and its power supply a longer lifespan.

    3. Sandblasting process and anodic oxidation surface treatment applied to the cooling body providing to the lamp an elegant and compact overall structure.

    4. Environmentally friendly, it contains no lead, no mercury or any other elements that may harm the environment.

    5. High color rendering level that shows true colors of things to people. Several colors are also available to meet specific requirements, delivering different kinds of atmosphere, reducing the depressive mood from traditional lamps with uneven color temperatures, improving work efficiency with better visual comfort.

    6. Advanced constant current and voltage control techniques, wide power adaptation coverage to fit all countries specificities, management of electrical unstable factors with a power grid and noise pollution with ballast, high lighting stability delivered avoiding unnecessary additional work effort for the eyes and thus preventing from eyestrain.

    7. Excellent decoration integration, unique surface treatment technology, modern design, easy installation, simple dismount, wide range of applications.


    Application:
    Applied to oil fields, oil refineries, offshore oil platform, power plants, gas stations, oil tanks, wharf, tunnel, pumping station, substation, the military base, etc. Zone I and Zone 2 Hazardous Locations, Zone 21, Zone 22 and II A, II B, II C explosive gas atmosphere.

    Comprehensive certification:

    UL 844 & C1D2,C2D2,C3;

    Class I Division 2 Group A, B, C, D; UL1598A Marine (Salt Water);
    Wet Location; UL8750LED Safety;

    • ATEX Ex mark: • II 2G Ex db op is IIC TS ... T6 Gb;
    • II 2D Ex tb op is IIIC T94°C. .. T89°C...T84°C Db;
    • IECEx Ex mark: • Ex db op is IIC T6 Gb;
    • Ex tb op is I IIC T85 Db;
    • IP66;


    Quick & easy installation:
    • Easy access to drivers and wiring
    • No custom brackets or hardware needed
    • three mounting options available

    Full ratings:

    ITEM NO.LCD-CES-EX-LN-01-50-LNXXXLCD-CES-EX-LN-01-60-LNXXXLCD-CES-EX-LN-01-80-LNXXXLCD-CES-EX-LN-01-100-LNXXXLCD-CES-EX-LN-01-120-LNXXXLCD-CES-EX-LN-01-150-LNXXXLCD-CES-EX-LN-01-185-LNXXXLCD-CES-EX-LN-01-200-LNXXXLCD-CES-EX-LN-01-240-LNXXX
    Input Voltage (VAC)100-277VAC / 50-60Hz100-277VAC / 50-60Hz100-277VAC / 50-60Hz100-277VAC / 50-60Hz100-277VAC / 50-60Hz100-277VAC / 50-60Hz100-277VAC / 50-60Hz100-277VAC / 50-60Hz100-277VAC / 50-60Hz
    System Level Power (W)50W60W80W100W120W150W185W200W240W
    100V Current (A)0.50.60.811.21.51.8622.45
    277V Current (A)0.180.220.290.360.430.540.670.720.87
    Delivered Lumens (Lm)

    5500-

    6000lm

    6600-

    7200lm

    8800-

    9600lm

    11000-

    12000lm

    13200-

    14400lm

    16500-

    18000lm

    20350-

    22200lm

    22000-

    24000lm

    26400-

    28800lm

    System Efficacy (Lm/W)110-120lm/w110-120lm/w110-120lm/w110-120lm/w110-120lm/w110-120lm/w110-120lm/w110-120lm/w110-120lm/w
    Correlated Color Temp (K)3000-6500K3000-6500K3000-6500K3000-6500K3000-6500K3000-6500K3000-6500K3000-6500K3000-6500K
    Color Rendering Index (CRI)>72>72>72>72>72>72>72>72>72
    Power Factor>0.95>0.95>0.95>0.95>0.95>0.95>0.95>0.95>0.95
    THD<20%<20%<20%<20%<20%<20%<20%<20%<20%
    Beam Angle75° /110°75° /110°75° /110°75° /110°75° /110°75° /110°75° /110°75° /110°75° /110°
