Hazard Area 15000lm 150w Zone 1 Atex LED Flood Light
Hazard area classification lighting 150W,Ex db IIC,Zone
1,IP67,240VAC,6500K,IK09
Product description

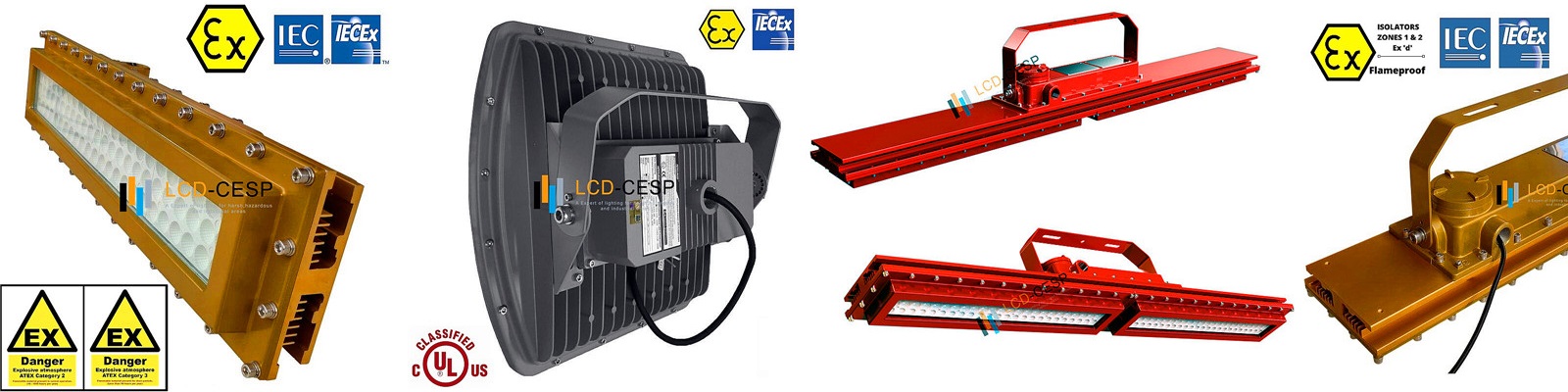

Ranger LCD Ex Series LED Luminaire is designed for installations
where moisture, dirt, corrosion and vibration may be present. They
can be used in locations made hazardous by the presence of
flammable vapors or gases as defined by the NEC.
LCD Ex Series is ideal for retrofit of existing HPS/MH and offers
higher efficacy for increased energy savings, lower maintenance
costs and shorter paybacks.
Structural Design:
- Copper free Alumium boday and corrosion resistant.
- Thermal shock and impact resistant PC lens.
- Slim and compact design.
- 0~180degree adjustable brackt
UL844:
Class I, Divsion 2, Groups A, B, C, D
Class II, Divsion 2, Gouups F, G
Class III

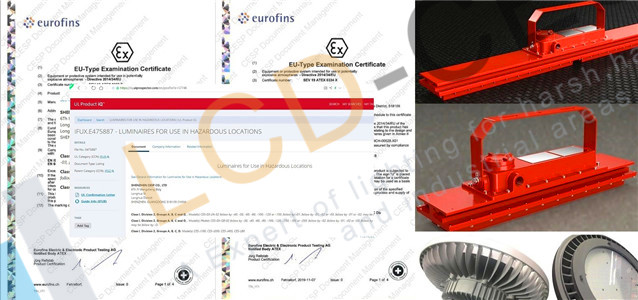

ATEX & IECEx Standard:
II 2G Ex db op is IIC T5...T6 Gb
II 2D Ex tb op is IIIC T94°C...T89°C... T84°C Db
Electrical Parameter:
| Specification | LN-120 | LN-150 | LN-200 | LN-240 |
| Rated Power | 120W | 150W | 200W | 240W |
| Input Voltage | 100-277V/AC |
| Input Frequency | 50/60HZ |
| Power Factor | 0.95 |
| Driver Efficiency | 90% |
Optical Parameter:
| Specification | LN-120 | LN-150 | LN-200 | LN-240 |
| Lumen output | 12000lm | 15000lm | 20000lm | 24000lm |
| Lumen per watt | 100lm/w |
| Beam angle | 110degree |
| Color Temp.: | 3000k, 4000k, 6500k |
| CRI | 75 |
Mounting Options:
| Celling / wall mounting |  |
| Hanging Chain |  |
| Pole |  |
Photometrics
| CCT | Luminous Flux(LM) | Power(watt) | Lumen output (lm/w) |
| 3000K | 5989 | 50 | 119.7 |
| 4000K | 6040 | 50 | 120.6 |
| 6500K | 6068 | 50 | 121.5 |
| 3000K | 7000 | 60 | 116.7 |
| 4000K | 7100.6 | 60 | 118.5 |
| 6500K | 7228.2 | 60 | 120.5 |
| 3000K | 9389. | 80 | 117.4 |
| 4000K | 9518.4 | 80 | 118.9 |
| 6500K | 9727.9 | 80 | 121.5 |
| 3000K | 11800 | 100 | 118 |
| 4000K | 12000.2 | 100 | 120 |
| 6500K | 12085.8 | 100 | 120.9 |
| 3000K | 13848 | 120 | 115.4 |
| 4000K | 14220 | 120 | 118.5 |
| 6500K | 14297.5 | 120 | 119.9 |
| 3000K | 17850 | 150 | 119 |
| 4000K | 18075 | 150 | 120.5 |
| 6500K | 18210 | 150 | 121.4 |
| 3000K | 21275 | 185 | 115 |
| 4000K | 21423 | 185 | 115.8 |
| 6500K | 22144.5 | 185 | 119.7 |
| 3000K | 23200 | 200 | 116 |
| 4000K | 23520 | 200 | 117.6 |
| 6500K | 23840 | 200 | 119.2 |
| 3000K | 28248 | 240 | 117.7 |
| 4000K | 28440 | 240 | 118.5 |
| 6500K | 28656 | 240 | 119.4 |
Full ratings:
| ITEM NO. | LCD-CES-EX-LN-01-50-LNXXX | LCD-CES-EX-LN-01-60-LNXXX | LCD-CES-EX-LN-01-80-LNXXX | LCD-CES-EX-LN-01-100-LNXXX | LCD-CES-EX-LN-01-120-LNXXX | LCD-CES-EX-LN-01-150-LNXXX | LCD-CES-EX-LN-01-185-LNXXX | LCD-CES-EX-LN-01-200-LNXXX | LCD-CES-EX-LN-01-240-LNXXX |
| Input Voltage (VAC) | 100-277VAC / 50-60Hz | 100-277VAC / 50-60Hz | 100-277VAC / 50-60Hz | 100-277VAC / 50-60Hz | 100-277VAC / 50-60Hz | 100-277VAC / 50-60Hz | 100-277VAC / 50-60Hz | 100-277VAC / 50-60Hz | 100-277VAC / 50-60Hz |
| System Level Power (W) | 50W | 60W | 80W | 100W | 120W | 150W | 185W | 200W | 240W |
| 100V Current (A) | 0.5 | 0.6 | 0.8 | 1 | 1.2 | 1.5 | 1.86 | 2 | 2.45 |
| 277V Current (A) | 0.18 | 0.22 | 0.29 | 0.36 | 0.43 | 0.54 | 0.67 | 0.72 | 0.87 |
| Delivered Lumens (Lm) | 5500- 6000lm | 6600- 7200lm | 8800- 9600lm | 11000- 12000lm | 13200- 14400lm | 16500- 18000lm | 20350- 22200lm | 22000- 24000lm | 26400- 28800lm |
| System Efficacy (Lm/W) | 110-120lm/w | 110-120lm/w | 110-120lm/w | 110-120lm/w | 110-120lm/w | 110-120lm/w | 110-120lm/w | 110-120lm/w | 110-120lm/w |
| Correlated Color Temp (K) | 3000-6500K | 3000-6500K | 3000-6500K | 3000-6500K | 3000-6500K | 3000-6500K | 3000-6500K | 3000-6500K | 3000-6500K |
| Color Rendering Index (CRI) | >72 | >72 | >72 | >72 | >72 | >72 | >72 | >72 | >72 |
| Power Factor | >0.95 | >0.95 | >0.95 | >0.95 | >0.95 | >0.95 | >0.95 | >0.95 | >0.95 |
| THD | <20% | <20% | <20% | <20% | <20% | <20% | <20% | <20% | <20% |
| Beam Angle | 75° /110° | 75° /110° | 75° /110° | 75° /110° | 75° /110° | 75° /110° | 75° /110° | 75° /110° | 75° /110° |
