4000K Waterproof IP67 LED Flood Light Explosion Proof
explosion proof trouble light 150W 240V 50/60Hz 4000K waterproof
IP67 21750lm
Optical System
• Tempered glass creates uniform light distribution and maximizes
lumen output
• Diffused lens optional
• Beam Angles: 30°, 60°, 90° and 120°
• CCT: 3000, 4000 or 6500K
• CRI: 70+
Electrical
• Input voltage of 100-240/277VAC standard, 347-480V optional
• Input frequency of 50/60Hz
• Philips SP1 10kA surge protector on requests
• Power Factor of ≥95%
• THD <20%
• Reported L70 hours >50,000K
Environmental
• Ambient Operating Temperature -40°F (-40°C) ~ 140°F (60°C)
• Ambient Operating Humidity of 10%~90% RH
• Atmospheric pressure of 25~31 in-Hg (86~106 KPa)
• Altitude of installation site of <6560 ft (2000m)
Finish
• (Dusty Gray & silver) polyester powder coat
Construction
- Die-cast, copper-free aluminum housing (ADC12), temper borosilicate
glass
- Stainless steel hardware
- Gasket: silicon 3/4” NPT threaded conduit/wire access ports
- Weight: 80 & 100W = 22.1lbs (10kg) / 120W, 150W &160W = 25.4
lbs (11.5kg)
Installation
• Mounting options include:
• Adjustable U-Bracket for ceiling, wall, etc.
• Pendant
• For installations where power surge may be possible, NICOR
recommends installing additional
surge protection at the electrical distribution panel
Technical data
| Item Name | BHD662-085 | BHD662-105 | BHD662-125 | BHD662-155 | BHD662-165 |
| Type Examination Certificate | TUV 18 ATEX 8298 X |
| IECEx Certificate of conformity | IECEx TUR 18.0064 X |
| Marking accd. 2014/34/EU | D II 2 G Ex db IIB T6 Gb / D II 2 D Ex tb IIIC T80°C Db IP66 |
| Marking accd. to IECEx | Ex db IIB T6 Gb/ Ex tb IIIC T80°C Db |
| Permissible ambient temperature | T -30 °C up to +55 °C |
| LED lifetime L80 | >200,000 h @ 25 °C / 60,000 h @ +55 °C |
| Driver lifetime C10 | >100,000 h @ 25 °C / 60,000 h @ +55 °C |
| Rated voltage | 110 - 277 V AC / 127 - 270 V DC |
| Rated current 2) | 0.24 A | 0.48 A | 0.72 A | 0.96 A | 1.44 A |
| Frequency | 0/50 - 60 Hz |
| Power factor cos ϕ 1) | ≥ 0.95 |
| Circuit | Electronic driver (Meanwell & Philips driver) |
| Protection class | I |
| Light distribution | Wide beam and narrow beam (asymmetric beam on request) |
| Light colour / CRI | 6500 K / Ra >70 (other colours on request) |
| Enclosure colour | grey / silver |
| Connecting terminals | 3 poles standard (L, N, PE / up to 6 mm² / others on request) |
| Enclosure material | Anodized copper-free Aluminium |
| Weight | 11KG | 11KG | 12KG | 12KG | 12KG |
| Cable glands / gland plates /enclosure drilling | 2 x M25 (Ex-e) metal thread nickel plated (E01) or 2 x M25 (Ex-e)
threaded plug (E05),(others on request) |
| Degree of protection accd. to EN 60529 | IP66 / 67 |
| Protective cover | Toughened glass, clear (protective bowl on requests) |
| Swivel bracket | Carbon steel with anti-corrosion powder coating and AiSi 316L
stainless steel (on requests) |

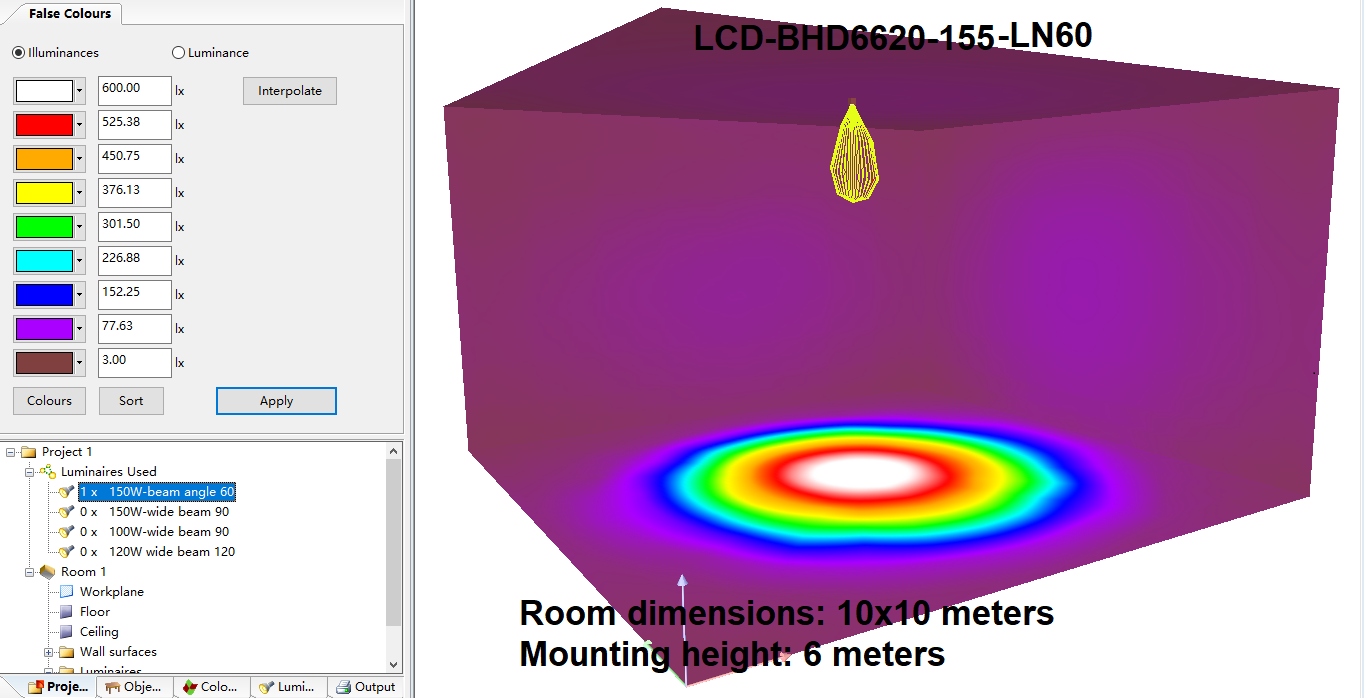

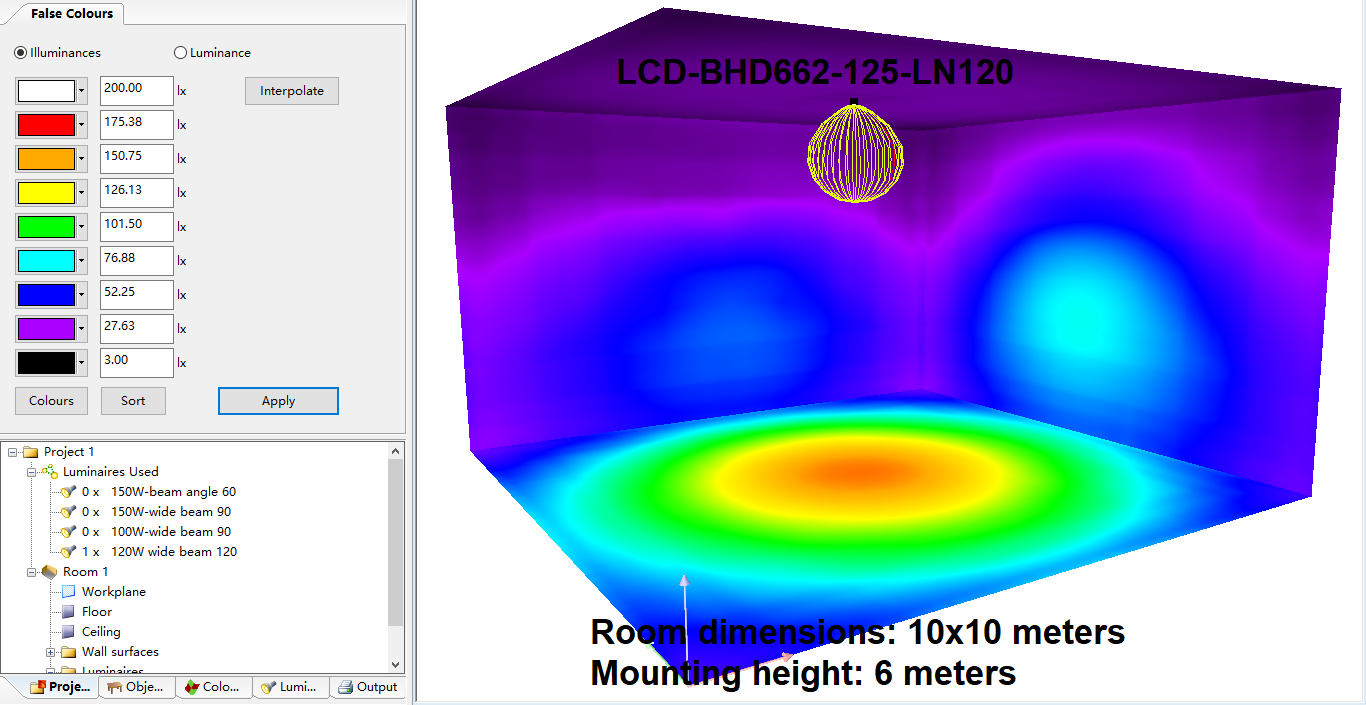

Photometric Data (LIGHT DISTRIBUTION CURVE)
