    High Brightness 40W IP66 Explosion Proof LED Flood Light

    Ask Lasest Price
    Brand Name : LCD-CESP brand
    Model Number : LCD-HLBD55-C/D-40W
    Certification : ATEX
    Price : usd
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 5000 piece/ month
    Delivery Time : 5-12 work day
    • Product Details
    • Company Profile

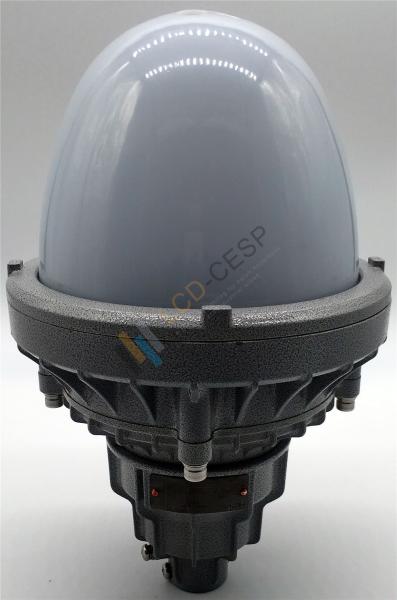

    High Brightness 40W IP66 Explosion Proof LED Flood Light

    High Brightness 40W IP66 Explosion Proof LED Flood Light


    Explosion proof led flood light 40W 220V60Hz emergency time 60 minute IP66 IK10


    Hazardous location:

    Designed for the most demanding of applications, where high output ATEX rated industrial lighting is required. Typical applications include mining, chemical industry, oil & gas installations, hazardous waste landfill and waste water & sewer.


    Models:
    EX: ATEX rated luminaire, max. 20W
    EX: ATEX rated luminaire, max. 30W

    EX: ATEX rated luminaire, max. 40W

    EX: ATEX rated luminaire, max. 50W


    Available ATEX standards

    Ex d IIC T6 Gb
    Ex tD A21 IP66 T80


    Features

    • Instant on crisp white light output
    • Highly Energy Efficient
    • 120,000 maintenance free hours at 25°C
    • Lower power consumption than HID lamps
    • Low temperature applications to -40°C

    Main Technical Parameter

    Rated voltage(V)AC220/230/240Rated power(W)20, 30, 40, 50
    Protection gradeIP66Emergency time (min)60/90
    Corrosion-proof gradeWF1, WF2Charging time(h)24
    Inlet threadG3/4Emergency light start time0.3S
    Cable outer dia.(mm)Φ10~Φ14Ex-markEx d IIC T6 Gb
    Ex tD A21 IP66 T80

    *: Required when ordering.


    Product description

    1. Zone 1 and Zone 2, Group IIA, IIB, IIC explosive gas environment, and/or Zone 21, Zone 22 combustible dust environment;
    2. Temperature class: T1~T6;
    3. Indoor and outdoor (IP66);
    4. Used in chemical industry, oil refining, petroleum exploitation, offshore oil platform,oil tanker, military and other dangerous places for lighting and emergency lighting during power failure.

    Diagram of cold and hot air moving in and out


    Distribution Curve


    LCD-HLBD55-C Outline and Installation Dimension


    LCD-HLBD55-D Outline and Installation Dimension
