Energy Saving 4000K IP67 Explosion Proof Led Light Fixtures
Explosion proof led light fixtures 120W 220V 50/60Hz wide beam 90
IP67 16800lm
Lighting under harsh conditions
The new Grampus LED floodlight series BHD6620 is suited for nearly
every kind of lighting task in hazardous areas, including
applications in on- and offshore,heavy industrial, chemical,
petrochemical, oil and gas, pharmaceuticals,shipyards,
dockyards,power generation, paper mills and wastewater treatment
indoor and outdoor with potentially explosive areas under harsh
conditions like vibrations, dust,moisture or corrosive atmospheres
and extreme temperatures.The Grampus comes with a standard U-shaped
mounting bracket for ceiling and wall mounting.
Replacement of conventional light fittings up to 800 W
With a luminous flux from 11,200 lm up to 23,200 lm this floodlight
series can be used to replace nearly every floodlight with
conventional light sources with an equivalent power consumption
from 250 W up to 800 W.
High efficient LED technology
High efficient power LED flood with up to 145 Lumen/Watt enables up
to 80 % energy-cost savings compared to conventional
HID lamp.
| 120W ATEX Floodlight | LCD-BHD662-125 |
| LEDs | Brand: Cree |
| CCT: 6000K |
| Efficiency: 140lm/w |
| Lumen: 16800lm |
| CRI:75 |
| Test: LM80 |
| Beam Angle | 120degree |
| Driver | Brand: Meanwell |
| PF: 0.95 |
| Efficiency: 90% |
| Voltage: 100~277vAC |
| Frequency: 50/60Hz |
| Current: 1.44 A |
| Instructure | Material: Aluminum+Temple glass |
| Connecting terminals: 3 poles standard |
| Gland: 2 x M25 |
| Support: Bracket |
| Waterproof | IP65 |
| ATEX Information | Certificate: TUV 18 ATEX 8298 X |
| Marks: D II 2 G Ex db IIB T6 Gb / D II 2 D Ex tb IIIC T80°C Db IP66 |
| Zone 1& 21, 2 & 22 |
| IECEx Information | Certificate: IECEx TUR 18.0064 X |
| Marks: Ex db IIB T6 Gb/ Ex tb IIIC T80°C Db |
| Zone 1& 21, 2 & 22 |
| Working Temp.: | T -30 °C up to +55 °C |
| Weight | 12KG |
| Warranty | 5 years |

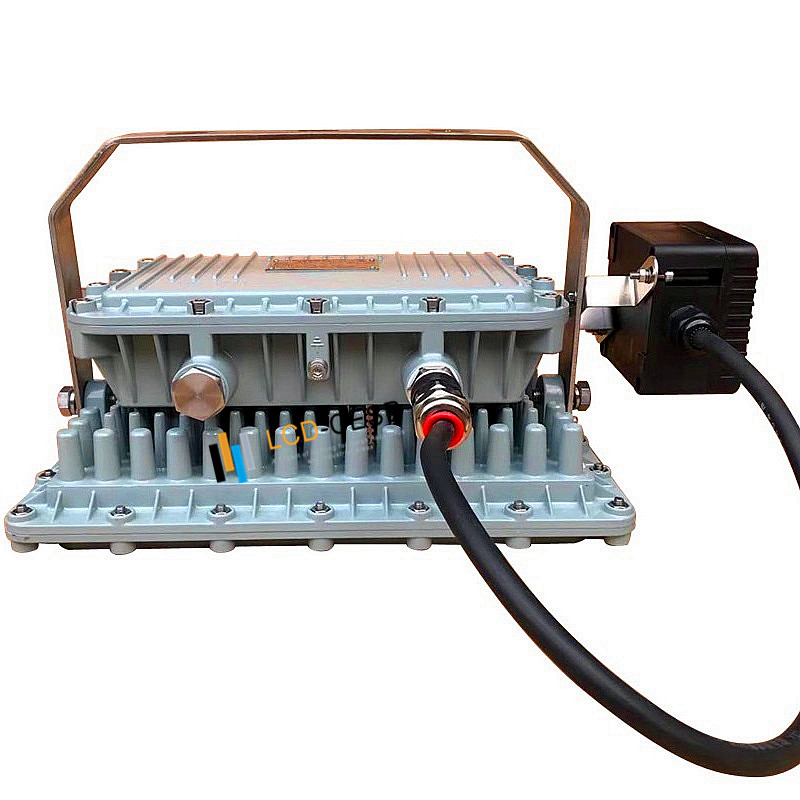

Product Pictures:
Installation
• Mounting options include:
• Adjustable U-Bracket for ceiling, wall, etc.
• Pendant
• For installations where power surge may be possible, NICOR
recommends installing additional
surge protection at the electrical distribution panel
Full Ranges
| Item Name | BHD662-085 | BHD662-105 | BHD662-125 | BHD662-155 | BHD662-165 |
| Type Examination Certificate | TUV 18 ATEX 8298 X |
| IECEx Certificate of conformity | IECEx TUR 18.0064 X |
| Marking accd. 2014/34/EU | D II 2 G Ex db IIB T6 Gb / D II 2 D Ex tb IIIC T80°C Db IP66 |
| Marking accd. to IECEx | Ex db IIB T6 Gb/ Ex tb IIIC T80°C Db |
| Permissible ambient temperature | T -30 °C up to +55 °C |
| LED lifetime L80 | >200,000 h @ 25 °C / 60,000 h @ +55 °C |
| Driver lifetime C10 | >100,000 h @ 25 °C / 60,000 h @ +55 °C |
| Rated voltage | 110 - 277 V AC / 127 - 270 V DC |
| Rated current 2) | 0.24 A | 0.48 A | 0.72 A | 0.96 A | 1.44 A |
| Frequency | 0/50 - 60 Hz |
| Power factor cos ϕ 1) | ≥ 0.95 |
| Circuit | Electronic driver (Meanwell & Philips driver) |
| Protection class | I |
| Light distribution | Wide beam and narrow beam (asymmetric beam on request) |
| Light colour / CRI | 6500 K / Ra >70 (other colours on request) |
| Enclosure colour | grey / silver |
| Connecting terminals | 3 poles standard (L, N, PE / up to 6 mm² / others on request) |
| Enclosure material | Anodized copper-free Aluminium |
| Weight | 11KG | 11KG | 12KG | 12KG | 12KG |
| Cable glands / gland plates /enclosure drilling | 2 x M25 (Ex-e) metal thread nickel plated (E01) or 2 x M25 (Ex-e)
threaded plug (E05),(others on request) |
| Degree of protection accd. to EN 60529 | IP66 / 67 |
| Protective cover | Toughened glass, clear (protective bowl on requests) |
| Swivel bracket | Carbon steel with anti-corrosion powder coating and AiSi 316L
stainless steel (on requests) |
Photometric Data (LIGHT DISTRIBUTION CURVE)
