Die Cast Aluminum 20 Watt 5050 LED SMD Flood Light

Die-Cast Aluminum LED SMD flood light 20w with symmetric optic 15 beam angle

FS LED luminaries
utilize an efficient thermal management system that promotes cool operation assuring maximum useful life. The open-air, flow-through design allows heat captured by patented independent heat sinks to quickly dissipate rather than being trapped in the housing. Additionally, the vented flow-through power supply enclosures are separate from the LED light engines, eliminating compounded heat build-up.

Features
Color Temperatures: 3000K, 3500K, 4000K and 5000K
CRI: 80
Lumen Maintenance: L70=50,000 at 25 °C
Operating Temperature Range: -40 °C to 40 ° C
Durable All Aluminum Pressure Die Cast Housing
Long Life Durable Powder Coat Finish (Custom colors are available upon request.)
IP65 Rated (wet listed)
Mounting: ½” NPT adjustable knuckle standard. Optional trunnion or tenon adapter available.

Electrical Specifications
Two Universal Voltage Driver Options: 120-277V and 347-480V
Power Factor > 0.90
THD < 0.85
Control Options: 0-10V Dimming Standard (Photocell Optional)

Tests & Certifications
CE
RoHS Compliant
Design Lights Consortium (Premium)

Warranty
10 - Year warranty (Parts or Replacement)

FS Family

Product cut sheet
Light Technical
Upward light output ratio 0
Standard tilt angle posttop 0°
Standard tilt angle side entry 0°

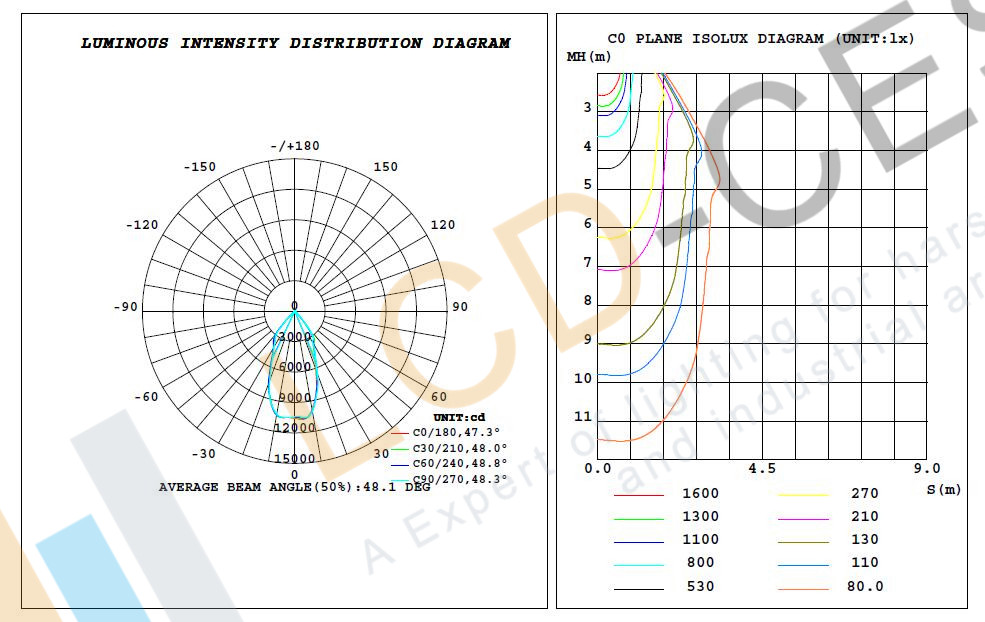

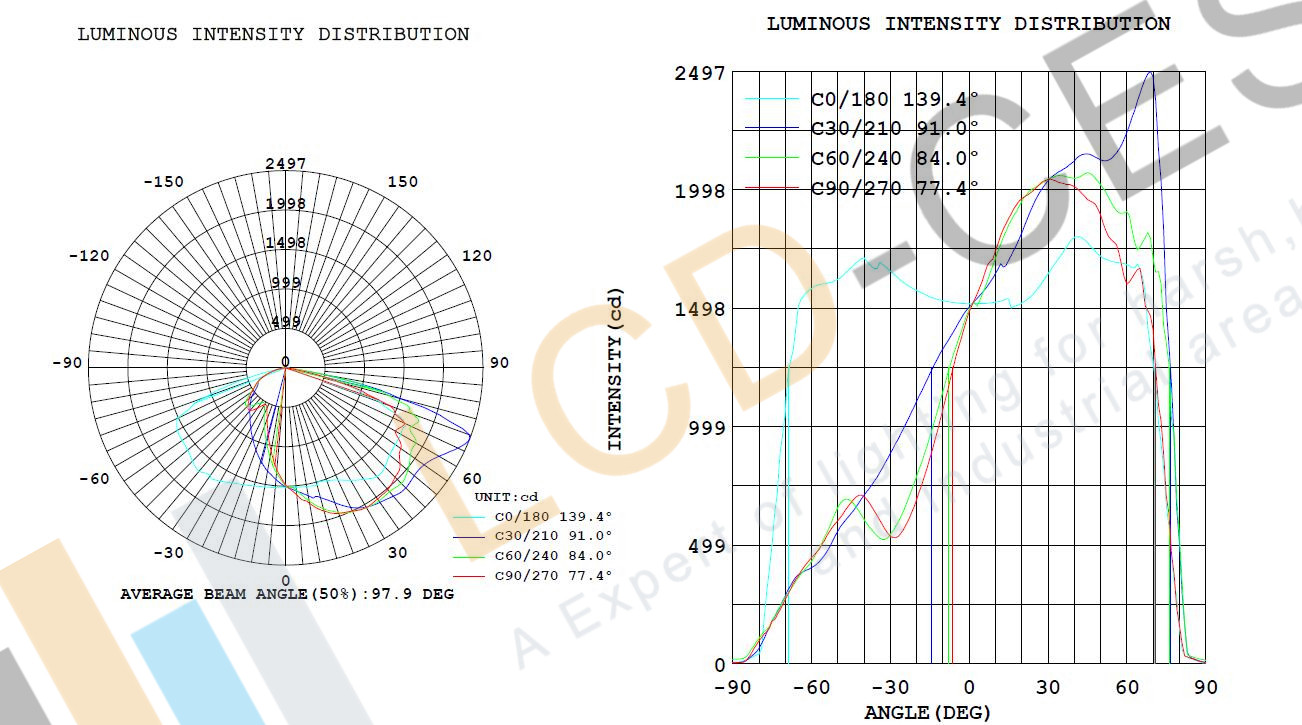

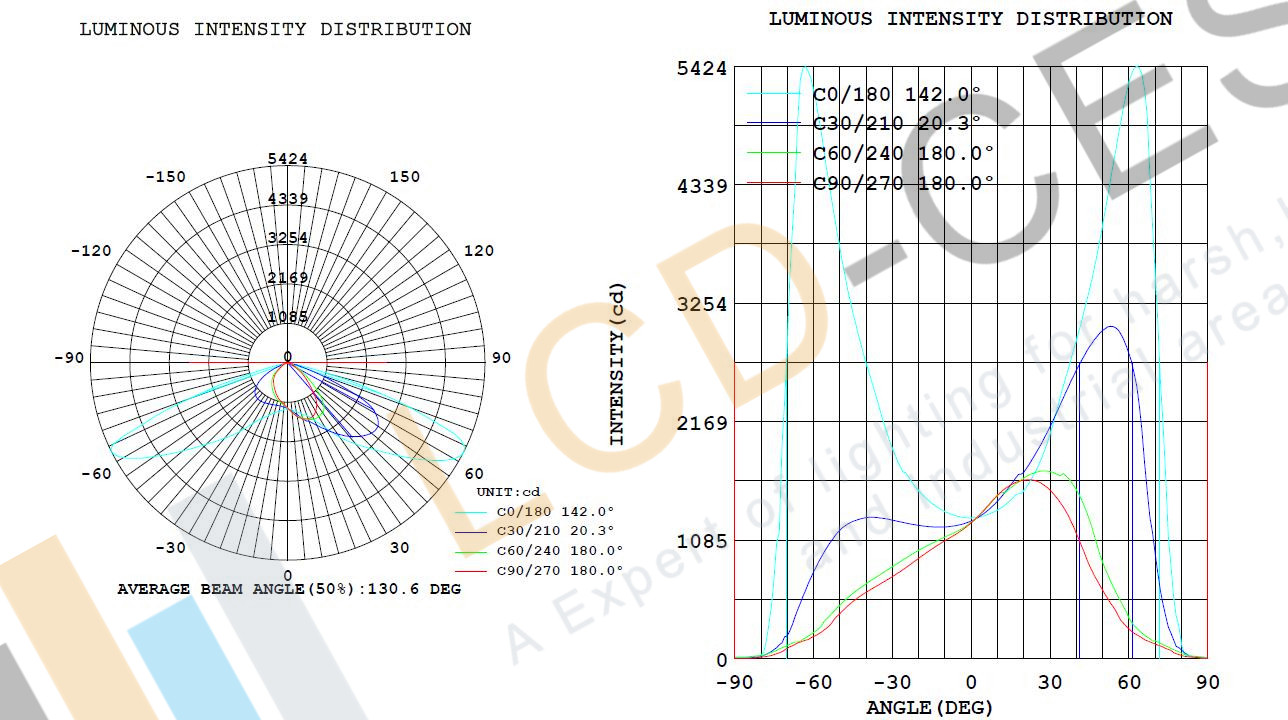

Photometric data

LCD-CESP is the leading innovator in Lighting design.

We strive to offer the best service to our customers

Our lighting products are market leaders and have many unique features.

We offer a minimum of 5 years warranty.

Most of all Customer satisfaction is our priority.

Our R+D team have many years in the lighting Industry and we offer the following skills to our customers-

Mechanical design

Electronic design

Optic testing

We are sourcing components to the highest specification.

Our manufacturing and assembly processes are to ISO 9001 and ISO 1400 requirements.

We offer customisation and design services.
