Waterproof IP65 15000 Lumen LED SMD Flood Light 100W
15500lm waterproof IP65 100W asymmetric wide beam LED SMD Flood
Light for 6500K
Description
Flood lights have come a long way in the past couple of years with
LED technology. When LED's were first introduced they were very
useful and good for lower brightness, products like globes or LED
strip lights achieved this. This was because they were not as
efficient as they are now. If the manufacturer turned the
brightness up on the...
100W FS-100 Floodlight
| Brightness | 15000 lumens (cold white) |
| Power | 100Watts |
| Color Temperature | Amber White (2200K), Warm White (2700-3000K), Natural White
(4000-4500K), Cold White (6000-6500K) |
| Dimensions | 490 x 150 x 112.4mm (length x width x height) |
| Voltage | 100-240V AC / 24V DC |
| IP Rating | IP66 |
| Operating Temperature | -40°C à 50°C |
| Beam Angle | 15°, 20°, 25°, 30°, 38°, 45°, 60°, 90° |
| Chipset | CREE XP-L |
| Lamp Type | LED |
| CRI | 75 |
| Power Factor | > 0.9 |
| Housing | Aluminum alloy |
| Weight | 11.3 kg |
| Warranty | 5 years |
| Average life | 50,000 hours |
| Certifications | ETL, FCC, ROHS, CE |
Light Technical
Upward light output ratio 0
Standard tilt angle posttop 0°
Standard tilt angle side entry 0°
Operating and Electrical
Input Voltage 100 to 277 VAC or 12-28 VDC
Input Frequency 50 to 60 Hz
Inrush current 340 A
Inrush time 0.025 ms
Power Factor (Min) >0.95
Controls and Dimming
Dimmable on requests 1-10V , DALI , Triac
FS Family
| Item | 10W | 20W | 30W | 50W | 80W | 100W | 150W | 200W |
| Input Voltage | 90-265VAC or 12-28VDC |
| Input Current | 0.05A | 0.1A | 0.15A | 0.23A | 0.38A | 0.48A | 0.7A | 0.93A |
| Power Efficiency | >89% | >89% | >89% | >95% | >97% | >97% | >97% | >97% |
| LED Consumption | 9W | 18W | 27W | 45W | 72W | 91W | 135W | 185W |
| System Consumption | 10W | 20W | 30W | 50W | 80W | 100W | 150W | 200W |
| Power Factor | >0.95 |
| Total Harmonic Distortion | THD< 20% |
| Dimmable | 1-10V , DALI ,Triac on requests |
| Power Line | 1.0m㎡three line |
| Chip Brand | LUMILEDs/CREE/Bridgelux / OSRAM (SMD3030) / SMD5050 on requests |
| LED Encapsulation | 12LEDs | 24LEDs | 36LEDs | 60LEDs | 96LEDs | 120LEDs | 180LEDs | 240LEDs |
| Rated LED Efficacy | 160-180 lumen/w |
| Luminous Efficiency | 130-160 lumen/w |
| Color Temperature | 3000K / 4000K / 6500K |
| Luminous Output (Typ.) | 1350lm | 2700lm | 4050lm | 6750lm | 10800lm | 13500lm | 20250lm | 27000lm |
| CRI | Ra> 80 |
| SCDM | SDCM <5 |
| Lumen Maintenance | > 80%@50,000h
|
Mechanical and Housing
Housing Material Aluminum die-cast 6063
Reflector material Polish Aluminum
Optic material Acrylate
Optical cover 4mm temper Glass
Fixation material corrosion resistant powder coating carbon Steel
Mounting device Mounting bracket adjustable
Optical cover Flat
Optical cover Clear
Approval and Application
Ingress protection code IP65 [ Dust penetration-protected,
jet-proof]
Mech. impact protection code IK08 [ 5 J vandal-protected]
Surge Protection Luminaire surge protection level >2 kV
Initial Performance (IEC Compliant)
Initial luminous flux (system flux) 13500-15500 lm
Luminous flux tolerance +/-6%
Initial LED luminaire efficacy 130-160 lm/W
Init. Corr. Color Temperature 3000K 4000 K 6500K
Init. Color Rendering Index ≥75
Initial chromaticity (0.380, 0.390) SDCM <5
Initial input power 100 W
Power consumption tolerance +/-10%
Product cut sheet
Over Time Performance (IEC Compliant)
Driver failure rate at 7000 h 0.5 %
Useful life L80B10 100000 h
Lumen maintenance at useful life of 100000 h,at 25 °C
Application Conditions
Ambient temperature range -30 to +45 °C

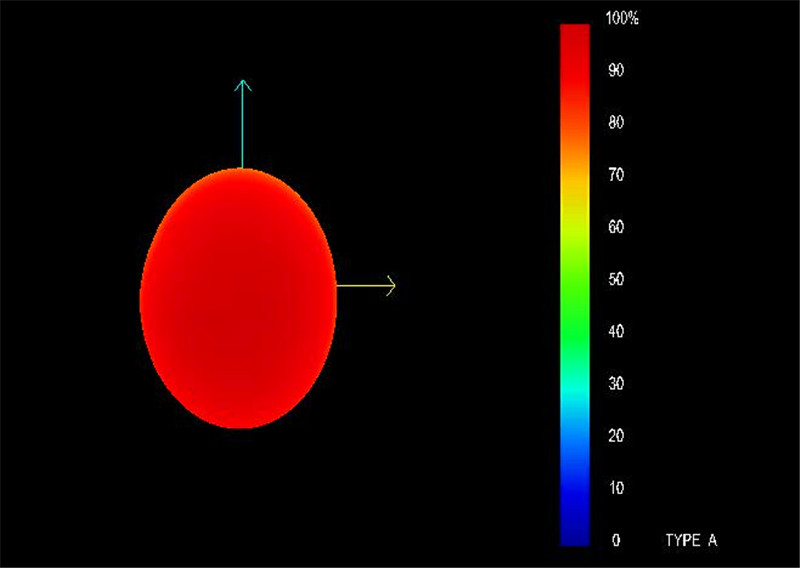

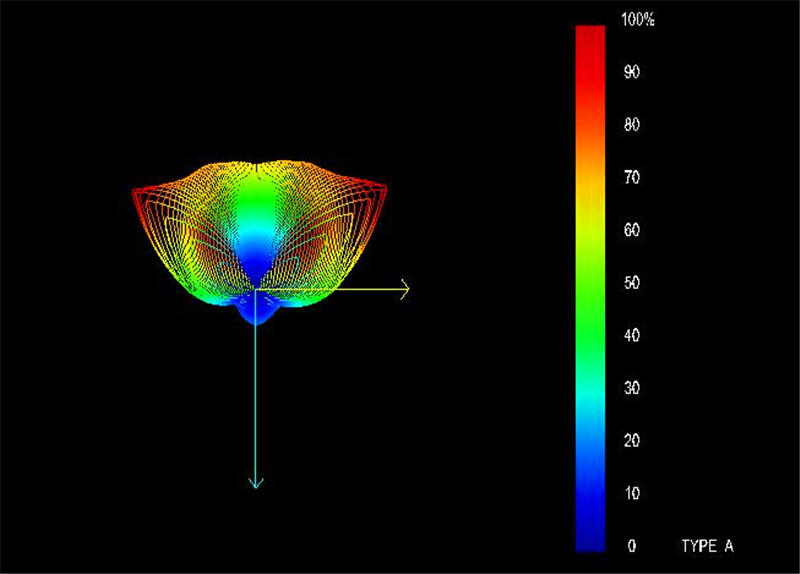

Photometric data
