200W High Lumen LED Flood Light
Replacement
Take 50pcs replacement as example, energy-saving result after one
year use.
Total power saving: 68437.5 KWH / Year, CO2 emitting saving:
53723.5 KG.
| Light Source | LED High Bay 150W DK-HB-K150B | Conventional HPS High Bay 400W |
| Wattage | 150w | 400w |
| Installation Qty. | 50pcs | 50pcs |
Circuit consumption =Lamp wattage * 1.25 | 187.5w | 500w |
Working Hours / Year | 4380 Hours (365*12) | 4380 Hours (365*12) |
Total KWh consumed per year = Circuit consumption * Working Hours per year* Lamp quantity/1000 | 41062.5 KWH | 109500 KWH |
CO2 emissions per year = Total KWh consumed per year * 0.785 | 32234 KG | 85957.5 KG
|
Key Advantages
1. High Quality
High quality material, well-trained workers, professional technical
team
2. Competitive Price
LED High bay is our best selling item, so we have big advantages on
material cost and producing management
3. Fast Delivery
Large stock for material, samples will be send within 3 days
4. Attentive after sale service
Professional salesman, will always solve your problems in the first
time
| Performance Data |
| Lumen Output: | 33000lm |
| Lumens Per Circuit Watt: | 145-165 LM/W |
| LOR (Light Output Ratio) %: | 100% |
| Photometry Available: | Yes |
| LIGHT Luminous Flux | Warm White | 29000LM |
| Pure White | 32000LM |
| Cool White | 33000LM |
| Luminaire Beam Angle: | 60°/ 90° ( standard) below data under 90° lens 3000K |
| Center Luminance | Height 10M | 119 LUX |
| Height 12M | 82 LUX |
| Height 14M | 61 LUX |
| Illuminance Area | Height 10M | 425sq.m points visible |
| Height 12M | 613 sq.m points visible |
| Height 14M | 834 sq.m points visible |
| Illuminance Uniformity: | ＞0.7 |
| Colour Temperature (K) | Warm White | 3000K~3500K |
| Pure White | 4000K~4500K |
| Cool White | 6000K~6500K |
| CRI: Ra | Ra＞80 |
|
| Light Distribution: | LED points visible |
| LED Junction Temperature: | ≤115℃ |
| Working Life-span: | 100000 H @ L70 |
| Warranty: | 5 years |
| Power Line: | 1.0m㎡three line |
| Input Electrical Connections | Brown | Live |
| Blue | Neutral (pre-wired flex) |
| Yellow / Green | Earth |
| Certificate | CE/ROHS |
| Size: | Ф388*176mm |
| Net Weight: | 3.9KG |
Application
LCD-HY-BJUFO Series is the energy and maintenance efficient LED
powered flood light for all your projects. Whether Suspend
mounted,wall mounted or base plate mounted, the BJUFO Series
eliminates spill light and light trespass making it an ideal
instrument for lighting industrial and commercial facilities in
residential and urban settings. Ideal for applications such as
factory, warehouse, working shop, security and general wide area
lighting for industrial, commercial and institutional use.
| Thermals |
| Max Luminaire Ambient Temp. | up to +50°C |
| Max Driver/Ballast Ambient Temp. | (-35°C to +50°C) |
| Thermal Cut Out: | 100°C + 10% |
| Insulation Coverage: | Do not cover |
| Minimum Free Air Space: | 200mm
|

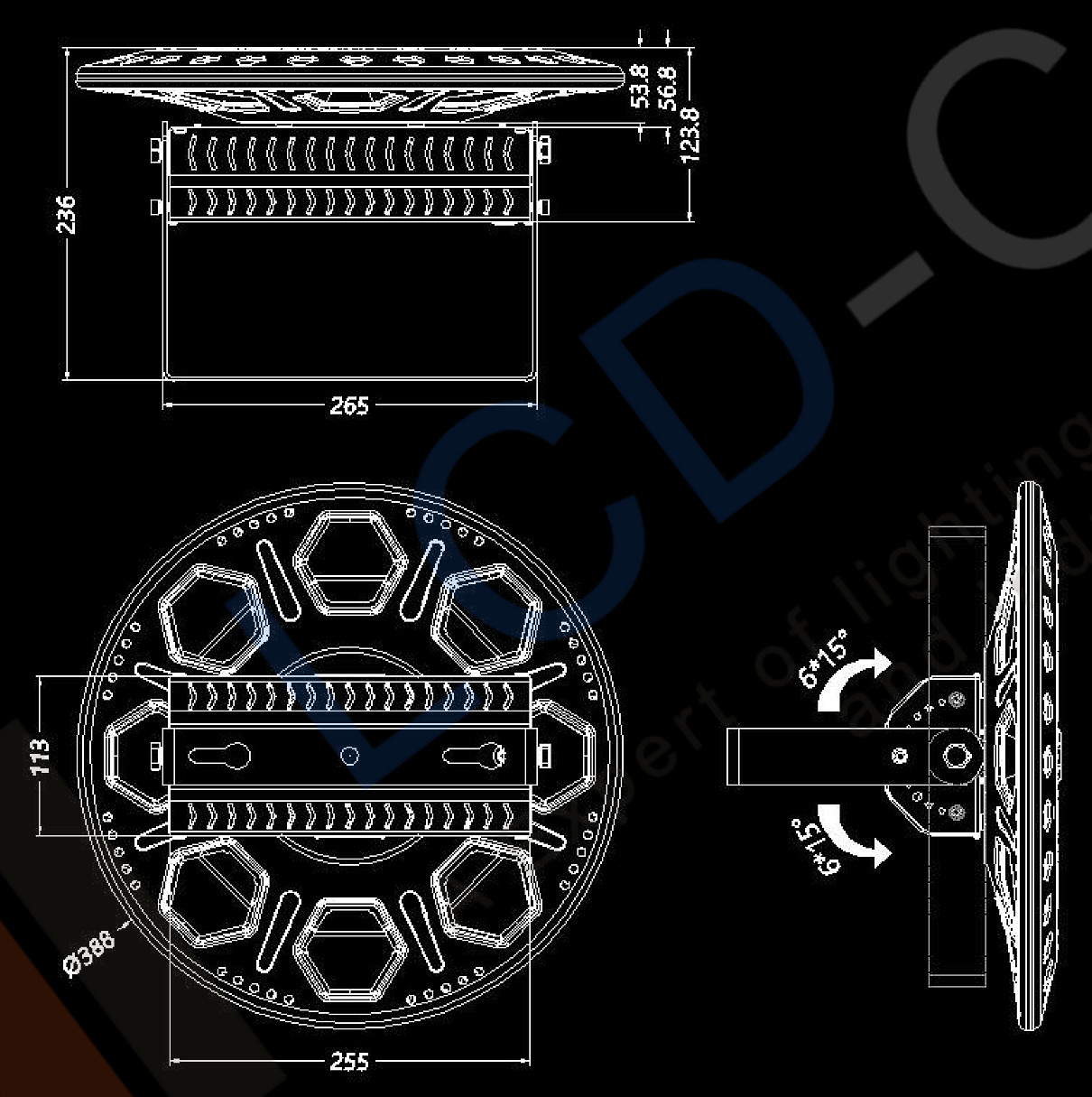

Products Dimension
Candela distribution
