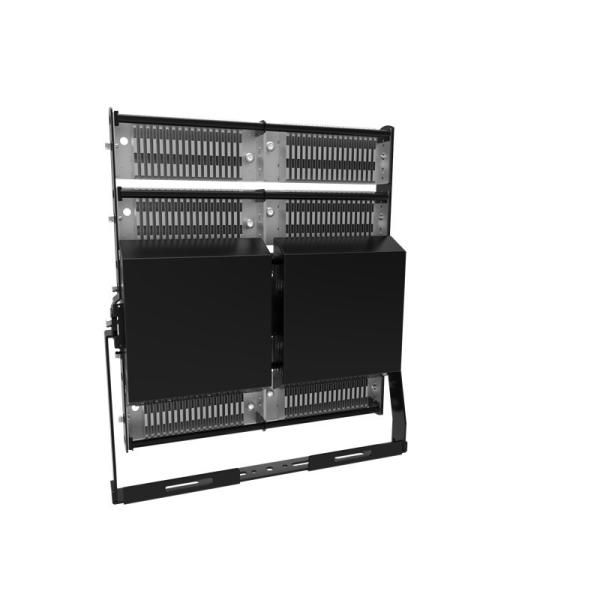

high power LED flood light 1200w, beam len 40 degree 192000lumen IP66 160lm/w

1200W Airport floodlight

• Power: 1200w
• Voltage: 240v
• Lumen: 192000lm
• Replace: 4000W MHL
• Application: Airport

Descriptions:

1. 300W, 400W, 500W, 600W, 800W, 1000W, 1200W, 1500W optional
2. LED chips: Lumileds or Bridgelux SMD5050 optional, eight big LED chips core in one 5050 chip.
3. LED light source: Maximum 220lm/w
4. Luminaire efficiency: 140-160lm/w
5. Lens: >93% light transmission, less light loose
6. LED driver: Meanwell/MOSO/Inventronics/Sosen/CB driver optioanal
7. CB driver: AC85-308V 50/60HZ, no flashing, 10KV surge protection, THD<10%, PF>0.95, 5 years warranty, very cost effective
8. Material: Punched high purity fin aluminum alloy
9. Beam angle: 20/30/60/90 degree optional

Advantages:

1. Muli-fin design heat sink, aluminum bottom plate 5mm, quick cool down LED chips temperature.
2. The mounting bracket can also adjusted.
3. LED driver seperated with LED module, temperature not accumulated.

Technical:

Installation:

1. Non-specialist electricians please do not repair or modify this product without authorization;
2. Please turn off the power before installation;
3. Before installation, please check whether the voltage marked on the lamp is consistent with the input voltage to be connected;
4. In order to ensure the service life of the product, please do not use it in a place with strong acid mist;
5. Pay attention to shock protection during installation and transportation;
6. Before installation, ensure that the installation position can withstand 10 times the weight of the product, and install it in a flat place without vibration, no swing, no fire hazard;
7. If the lamp fails, please place the lamp in one place and send it back to the company for inspection and repair.
8. If the lamp body or wire is damaged, please stop using it immediately.
