Aluminum Dustproof 120w 220v High Power LED Flood Light
Aluminum AL1060 one module 155lm/W IP66 high power LED flood light
120w for area

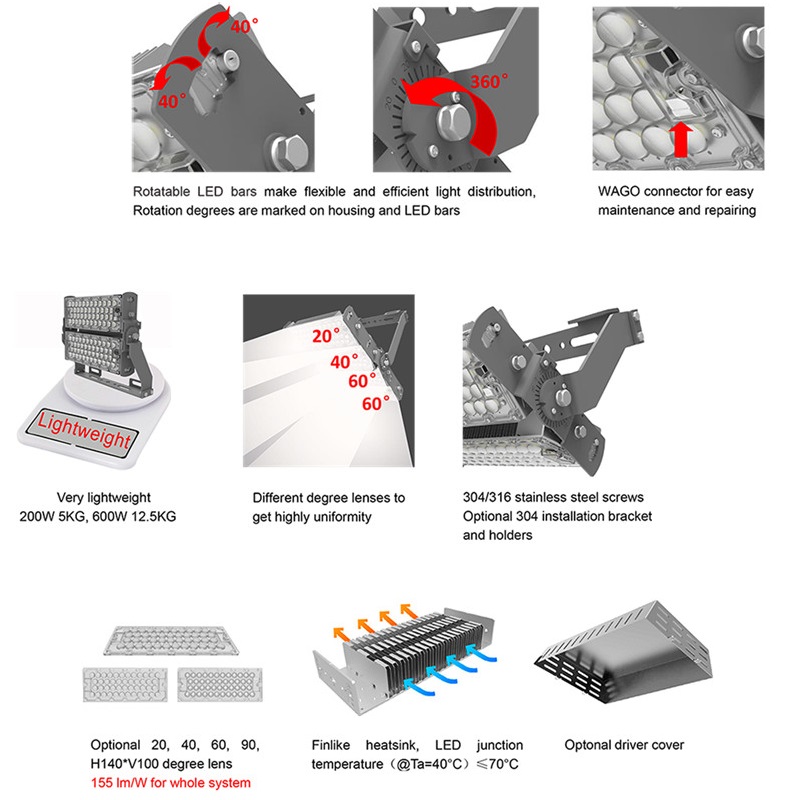

CORE TECHNOLOGY
(1) Penetrable Side-wing Heat Transmission Structure.
(2) Z-axis Heat Transmission Structure.
Instead of guiding the cool air flow into the center of heat sink,
heat will be driven from center to two sides and the penetrable fin
modules in two side wings will allow the air flow freely to come
and go in all X, Y and Z axis. High efficiency of the convection
makes the small size heat sink feasible.
KEY FEATURES
- Superior light output – 18600lm
- High luminaire efficacy – 155lm/Watt
- Light weight structure – 11kg
- Minimized wind area
- Shock resistant
- Cost saving
Seaport high mast floodlight 120W
- Power: 120w
- Voltage: 220v
- Lumen: 18600lm
- Replace: 400W MHL
- Application: Airports and Seaports
Technical:
Efficiency (lm/W)
| Lumen Maintenance | CCT | CRI | Weight (KG) | Surge Protection |
| 100~170LM/W | 40 / 70 /100K HOURS L80/B10 | 3000K 4000K 6500K | 70 80 90 | 3LED MODULES: MAX 7.4 KG 2 LED MODULES: MAX 5.2 KG 1 LED MODULE: MAX 2.6 KG | Up to 4KV |
Impacts
| IP Grade | Operation Temp. | Flicker | Power | Beam angle |
IK09
| IP66 | -30°~+55° | <2% | 120W~1500W | 20°~140° |
Installation:
1. Non-specialist electricians please do not repair or modify this
product without authorization;
2. Please turn off the power before installation;
3. Before installation, please check whether the voltage marked on
the lamp is consistent with the input voltage to be connected;
4. In order to ensure the service life of the product, please do
not use it in a place with strong acid mist;
5. Pay attention to shock protection during installation and
transportation;
6. Before installation, ensure that the installation position can
withstand 10 times the weight of the product, and install it in a
flat place without vibration, no swing, no fire hazard;
7. If the lamp fails, please place the lamp in one place and send
it back to the company for inspection and repair.
8. If the lamp body or wire is damaged, please stop using it
immediately.
