Corrosion Proof 3600 Lumen 30W Marine Led Underwater Lights
Features
1 .The enclosure is molded with glass fiber reinforced unsaturated
polyester resin with high strength, impact resistance, high
temperature resistance, cold-resistant, strong corrosion resistance
properties;
2. The lampshade is molded with injection polycarbonate, with high
light transmittance, impact resistance, cold-resistant, strong
corrosion resistance properties and anti-dazzle design;
3. The enclosure adopts curve seal structure, and the sealing strip
adopts high temperature resistance and anti-aging silicone rubber
with fine dust & water & strong corrosion- proof properties;
4. Special explosion-proof electronic ballast with short circuit
and open circuit protection performance is matched with prevention
circuit for lamp aging effect and air leakage phenomenon, which is
energy-efficientfitted (COSΦ≥0.98); Wide voltage input,which can
keep constant power output in 150~250V voltage range and don't
affect the output light efficiency;
5. Adopts normal T8 lamp tube and saves the maintenance fee;
6. Can be equipped with explosion-proof LED tube,have super long
life,energy saving,environmental protection,high luminous
efficiency (120lm/W),high power facter(≥0.95) and so on
function,wide voltage input(180~265V),constant power output,own
constant current,open circuit,short circuit and so on protective
function;
7. It can be fitted with emergency device on request, when the
power is off, lamps can convert to emergency lighting state
automatically;
8. Built in explosion-proof switch which is equipped with interlock
device,and it can automatically power off when opening cover, which
ensures safety;
9. Wiring with cable or steel tube. (Please specify when wiring
with steel tube).
| IP69K PROOF LED LINEAR LIGHTS( total anti-corrosion proof ) |
| No. | Model | Size | Specification ( for IP69K & IP65 ) | Housing | Chip | Driver | PCB | LEDs chip |
| 1 | LCD-HY-GRP-032 | size: 83*68*600mm
weight: 1.1kg | Power: 30W ,Lumen flux: 3450-3600lm, Ra>70, PF>0.9,IP69K,
THD<20%, Beam angle: 120°,CCT: 3000K/4000K/6500K
Input voltage: 100-277VAC (50/60Hz) , Warranty: 5 years
| Glass fiber reinforced plastic(GRP) shell frame, aluminum 6063
extruded heat-sink | SMD 2835 (LM80 certified) | CE RoHs | 2mm thickness,2oz copper, aluminum | 200pcs SMD2835 |
|
| 2 | LCD-HY-GRP-042 | size: 83*68*600mm
weight: 1.1kg | Power: 40W ,Lumen flux: 4600-4800lm, Ra>70, PF>0.9,IP69K,
THD<20%, Beam angle: 120°,CCT: 3000K/4000K/6500K
Input voltage: 100-277VAC (50/60Hz) , Warranty: 5 years | Glass fiber reinforced plastic(GRP) shell frame, aluminum 6063
extruded heat-sink | SMD 2835 (LM80 certified) | CE RoHs | 2mm thickness, 2oz copper, aluminum | 240pcs SMD2835 |
|
| 3 | LCD-HY-GRP-052 | size: 83*68*1200mm
weight: 1.95kg | Power: 50W ,Lumen flux: 5750-6000lm, Ra>70, PF>0.9,IP69K,
THD<20%, Beam angle: 120°,CCT: 3000K/4000K/6500K
Input voltage: 100-277VAC (50/60Hz) , Warranty: 5 years | Glass fiber reinforced plastic(GRP) shell frame, aluminum 6063
extruded heat-sink | SMD 2835 (LM80 certified) | CE RoHs | 2mm thickness, 2oz copper, aluminum | 400pcs SMD2835 |
|
| 4 | LCD-HY-GRP-072 | size: 83*68*1200mm
weight: 2.36kg | Power: 70W ,Lumen flux: 8050-8400lm, Ra>70, PF>0.9,IP69K,
THD<20%, Beam angle: 120°,CCT: 3000K/4000K/6500K
Input voltage: 100-277VAC (50/60Hz) , Warranty: 5 years | Glass fiber reinforced plastic(GRP) shell frame, aluminum 6063
extruded heat-sink | SMD 2835 (LM80 certified) | CE RoHs | 2mm thickness, 2oz copper, aluminum | 480pcs SMD2835 |
Applications
1. Can be used in Zone 1 and Zone 2,group II A, II B and II C
explosive atmosphere and zone 20, zone 21 and zone22 flammable dust
atmosphere;
2. Temperature class:T1~T4(T6);
3. Indoor or outdoor (IP65);
4. Can be used in chemical, oil refining, oil, marine oil platform,
tankers, military industry and other dangerous place for
illumination.
Luminous distribution curve
Main technical parameters
Outline & installation dimensions

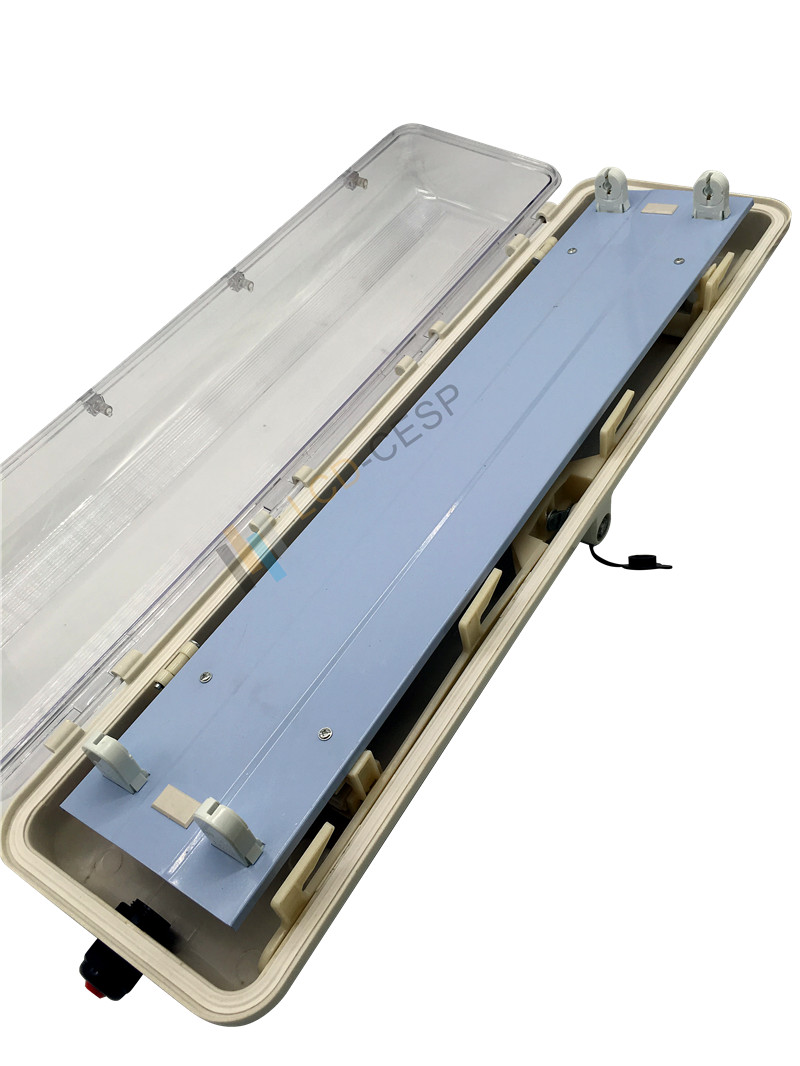

Product Pictures
