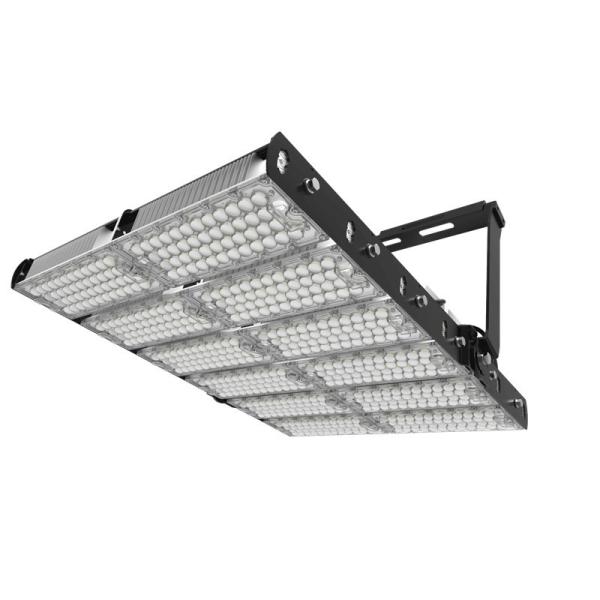

high power LED flood light 1500w asymmetric angle 240000lumen IP66
160lm/w
Main Features:
1. With aesthetic appearance design which looks simple and stylish;
Delicate and extremely slim design.
2. Excellent aluminum with the surface treatment of weatherability,
offers good anti-corrosion and anti-rust functions for bad outdoor
environment;
3. Using Meanwell/Sosen international brand LED driver with wide
voltage 100-277VAC or 277-480VAC;
4. Combined with dimmable versions , sensor fuctions and RGB/RGBW
color;
5. Strict shocking testing and waterproof testing ensures safety in
all situations;
6. Philips or Cree SMD3030 LEDs, or San'an 190lm/W SMD3030 LEDs,
lamp efficacy can get to 160lm/W;
7. Various beam angles in optional (15°/40°/ 60°/ 90°/
30*70°/49*21°/136*78°);
8. 270°large angle stepless adjustment;
9. CE, RoHS, UL, ENEC, ETL, PSE standard compliant.
10. No UV and near-IR radiation in the light beam.
11. Alternative to MHI luminaires and HPI luminaires directly.
12. 3 years warranty / 5 years warranty / 7 years warranty in
optional.
13. Support OEM and ODM service.
1500W Outdoor floodlight
- Power: 1500w
- Voltage: AC90~305V
- Lumen: 240000lm
- Replace: 5000W MHL
- Frequency: 50~60Hz
- Power Factor: >0.90
- CCT: 3000~6500K
- CRI: >80
- Waterproof: IP66
- Storage Temp.: –30 ~ 55°C
Technical:
Efficiency (lm/W)
| Lumen Maintenance | CCT | CRI | Weight (KG) | Surge Protection |
| 100~170LM/W | 40 / 70 /100K HOURS L80/B10 | 3000K 4000K 6500K | 70 80 90 | 3LED MODULES: MAX 7.4 KG 2 LED MODULES: MAX 5.2 KG 1 LED MODULE: MAX 2.6 KG | Up to 4KV |
Impacts
| IP Grade | Operation Temp. | Flicker | Power | Beam angle |
IK09
| IP66 | -30°~+55° | <2% | 120W~1500W | 20°~140° |
Installation:
1. Non-specialist electricians please do not repair or modify this
product without authorization;
2. Please turn off the power before installation;
3. Before installation, please check whether the voltage marked on
the lamp is consistent with the input voltage to be connected;
4. In order to ensure the service life of the product, please do
not use it in a place with strong acid mist;
5. Pay attention to shock protection during installation and
transportation;
6. Before installation, ensure that the installation position can
withstand 10 times the weight of the product, and install it in a
flat place without vibration, no swing, no fire hazard;
7. If the lamp fails, please place the lamp in one place and send
it back to the company for inspection and repair.
8. If the lamp body or wire is damaged, please stop using it
immediately.
