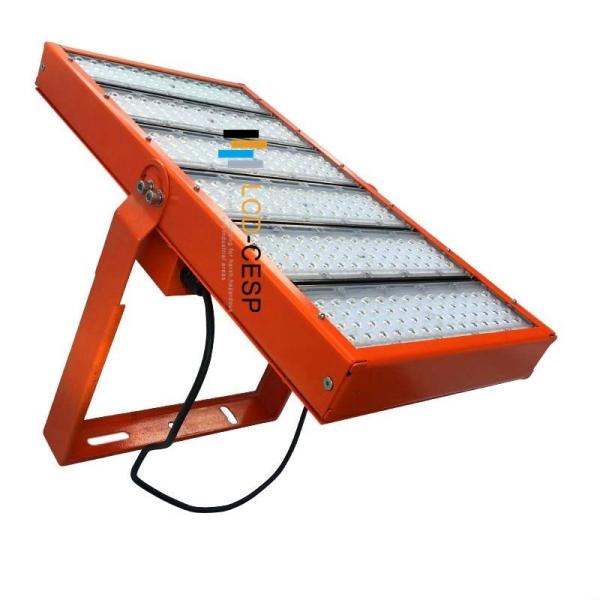

220V 50Hz Cree Bridgelux SMD3030 Marine Led Floodlight
led flood lights for boats 300wm heat conducting plastic heatsink
IP66 220V 50Hz
Remarks:
Different beam angle for choosing,seawater and acid steam vapor
resistant module housing
Made of special heat conducting plastic,
Stainless steel #316 frame, back cover and mounting bracket,
Back cover black or white powder coated,
Connection box with Ex mark,
1 cable gland M25 for cable 10-20mm in diameter
2x3-pole terminal max. 4mm²
fixed angle
| General Information: |
| Power | 300W +/-10% |
| Luminous | 39000-43500lm +/-10% |
| LED luminaire efficacy | SMD3030:130-145lm/w |
| CRI | ≥75 |
| Lumen Maintenance | ＞100000hours |
| Color Temperature | 3000/4000/6500K |
| Beam Angle | 20°/40°/60°/90°/100x140° |
| Lamp | LEDs SMD3030 or SMD5050 |
| LED quantity | 60pcs x 6 modules / 25pcs x 6 modules |
| Input Voltage | 100-277 VAC (347/480 VAC Optional)
Dimming Optional |
| Driver | Meanwell & Philips driver |
| THD | ＜20% |
| Power Factor | ＞95% |
| Power-supply Efficiency | ＞90% |
Key Points:
Long lifespan: 110.000Hr and free maintenance.
High lumen: 130lm/watt to offer a bright world and protect eyes.
Energy saving: 60% compare to traditional ML and HID Lights
Power saving and Maintaining:
Photometric:
Test
Application
FAQ
1. What 's your payment method?
In general,we use Paypal and Western Union for the total order less
than US$ 500 in order to reduce the extra fee, Bank Tranfer payment
can be accepted for large order too.
2. How long will it take to execute my order ?
This depends on the order quantity.Our nornal delivery time is 5-7
working days.
3. How much will the shipping charges be ?
This will depend on the size of your shipment and the method of
shipping.Whe inquiriedabout shipping charges,we hope that you let
us know the detailed information such as the post code and quantity
,your favorable method of shipping (by air or by sea ) and your
designated port or airport.
4. Do you provide samples ?
Yes ,we can provide samples of all the items listed.In general of
facture rule, the sample cost and shipping cost will be in buyer
side.We can send the sample by DHL,FEDEX,EMS and UPS .
5. Do you have products in stock?
For most common items we have stock but we could not reserve all
the items in stock.Ifthere is any in stock,we will inform you with
details.
6. What the warranty term for your products?
All of our products have at least one year warranty in normal use.
Please provide or video ia any quality problem during this
period.We will replace a new one to you in thenext order.
7. Can I visit you?
Sure, please let us know if you wanna visit our factory ,we will
arrange it for you.
8. Do I need to send the defective products back to you for
warranty.
No,you don’t need to send it back for warranty for the defective
products.If any damage happens not caused by misure or
vandalism,then we ‘ll send you a new one.
