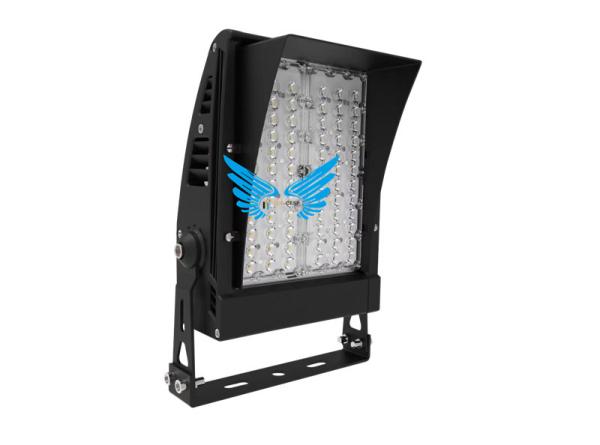

200 Watt Waterproof Marine High Intensity Led Flood Light

Extruded Aluminium 6063 IP66 Purpose area marine navigation lights 200W Light

Highlights:

• Engineered and manufactured in high quality control and top brand components
• CE, RoHs, SAA, IP rate Certified: Will conform to wet locations
• L70 calculated LED life over 100,000+ hours
• Drivers availbale for 0-10v/PWM/Timer Dimmable (3 Timer Modes), Dim-to-Off with Standby Power
• ≤ 1 W, Output Lumen Compensation and 12V Auxiliary Output
• 60,000 - 75,000 nominal LED lumens and advanced PC optical assembly
• Premium high-output SMD Chip-On-Board LEDs in 3000K, 4000K, 6000K & 6500K
• Standard, custom color temps available upon request
• Minimum CRI of 70, custom CRI available
• Remote driver solutions available
• 5-7-year standard limited warranty on all light engine components
• Accessories and adders covered by separate OEM supplier warranties

Typical photometrical features

• Asymmetric Forward 40º
• Asymmetric Wide 60x135º
• Asymmetric Extra Wide Flood 85x145º
• Symmetrical Wide Flood 60º / 90° /120°
• Symmetrical Narrow Spot 25º / 45º

Common Applications:

• Container loading areas and general shipping yards and marine searching lighting and bow lighting.
• Sports and stadium lighting and prison or army security lighting.
• Car park,Shopping centres,Pedestrian crossings,Industrial & logistical.
• General flood and area lighting.

Installation and maintenance

• Coupler bracket for wall, ceiling, surface, side-mount or post-top
• Adjustable bracket (between -125° and 125° from horizontal)
• Recommended mounting height: 8-200m (from 200W to 1000W)
• Tool-less driver maintenance
• Storage temperature up to 85ºC.
• Operating temperature from -30ºC to +50ºC

Dimension Information
Packaging list

LCD-CESP is the leading innovator in Lighting design.

We strive to offer the best service to our customers

Our lighting products are market leaders and have many unique features.

We offer a minimum of 5 years warranty.

Most of all Customer satisfaction is our priority.

Our R+D team have many years in the lighting Industry and we offer the following skills to our customers-

Mechanical design

Electronic design

Optic testing

We are sourcing components to the highest specification.

Our manufacturing and assembly processes are to ISO 9001 and ISO 1400 requirements.

We offer customisation and design services.
